3DX23 HDMI M TO USB C F PIGTAIL 190 MM

Product Description

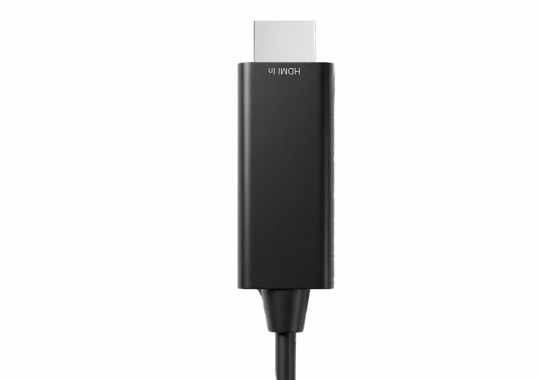

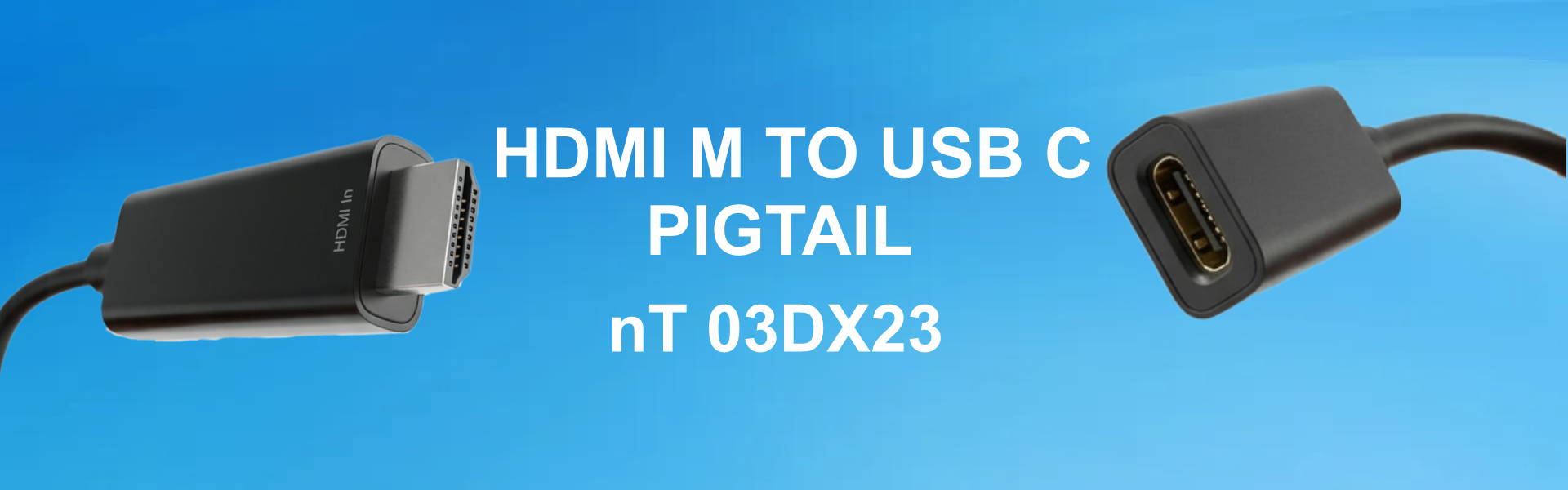

nT03DX23 HDMI TO USB C Pigtail

nT03DX23 HDMI to USB C Pigtail converts HDMI signal into SUB C video and audio signals . It helps to connect USB C display or devices to the hdmi sources . Supports 4096×2160 – 60 Hz – 4:4:4 / 1920×1200 (1080p) video . It is provided with anti theft tie hole – so that it can be tied to the display cable – avoiding misplacement and theft . Available in 190 mm length . Used for AV Integrations , pro audio like Audiotrium , meeting room , class rooms , hospitals , studio ……

Specification

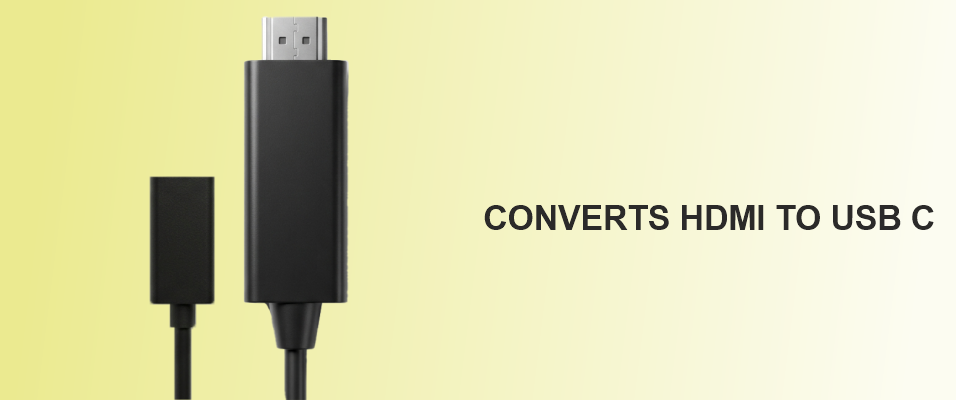

Converts HDMI To Usb c ,
Support 8bit color Depth / HDCP1.4/2.2 / HDR ,

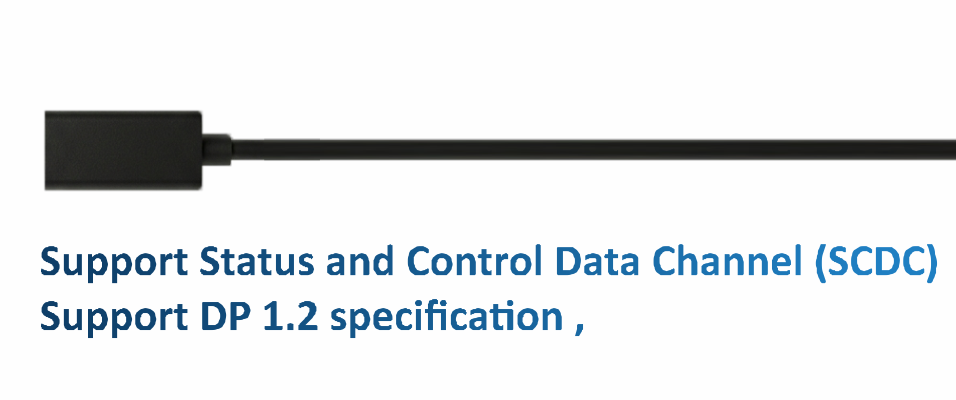

Support Status and Control Data Channel (SCDC) ,

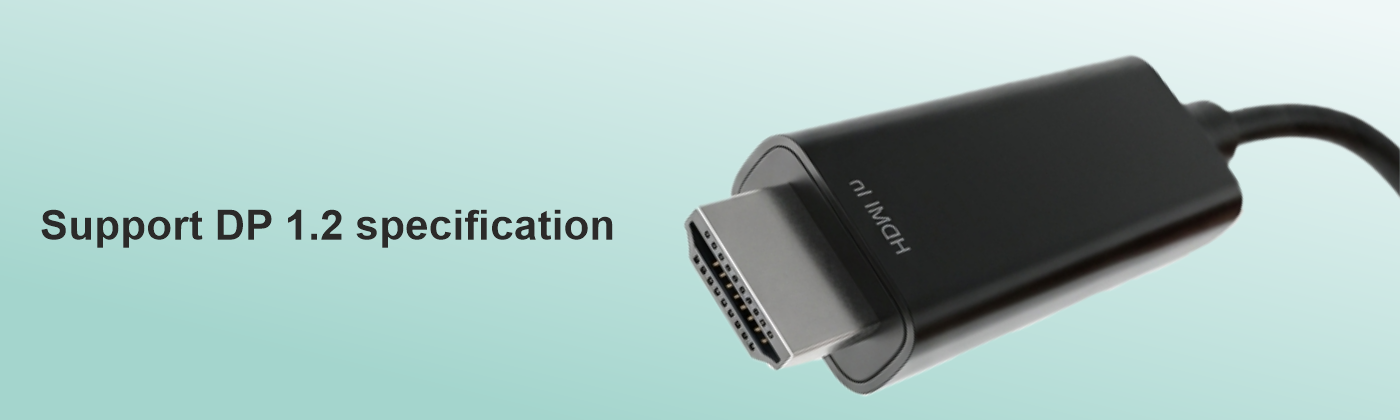

Support DP 1.2 specification ,
Support Resolution up to 4Kx2K@60Hz ,
Support Four Lanes with 1.62Gbps (RBR), 2.7Gbps (HBR) or 5.4Gbps (HBR2) Data Rate per lane ,
Hot Plug Detection ,
Colour Black

Connector A HDMI MALE – Input
Connector B USB C FEMALE – out put

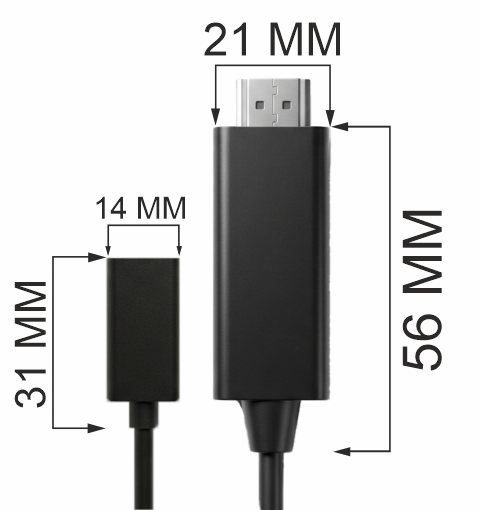

LENGTH END TO END 190MM
RESOLUTION 4Kx2K@60Hz for 4:4:4.
Conversion Type Active
Supports HDCP1.4/2.2 / dp 1.2 / SCDC / HOT PLUG
Colour 8 bit color depth
Speed Four Lanes with 1.62Gbps (RBR), 2.7Gbps (HBR) or 5.4Gbps (HBR2) Data Rate per lane
TIE HOLE OD 3 MM
OUTPUT CABLE LENGTH SUPPORTED USB C 2 Mtrs
COLOUR BLACK
Main Image
Small Image 1
Small Image 2
Small Image 3
Small Image 4
“
