3DX09 USB C TO 2 X HDMI

Product Description

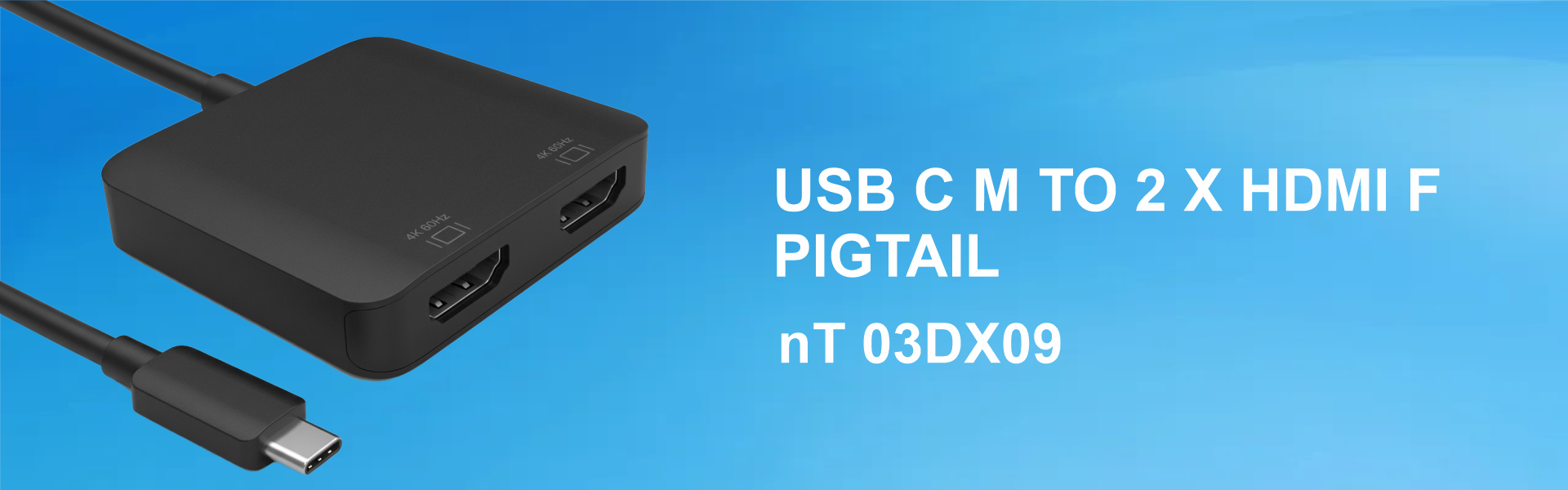

nT03DX09 USB C TO 2 HDMI Pigtail

nT03DX09 USB C to 2 HDMI Pigtail converts USB C signal into 2 HDMI video and audio signals . It helps to connect 2 HDMI display or projectors to the latest USB C interface of the sources like laptop , computers etc .. , .HDMI Supports 4K 60 Hz resolution . Both the outputs can display simlar and extended displays . Dual display boosts productivity and makes taks easy and faster .The pigtail dose not support bi directional use .It is provided with anti theft tie hole – so that it can be tied to the display cable – avoiding misplacement and theft . Used for AV Integrations , pro audio like Audiotrium , meeting room , class rooms , hospitals , studio ……

Specification

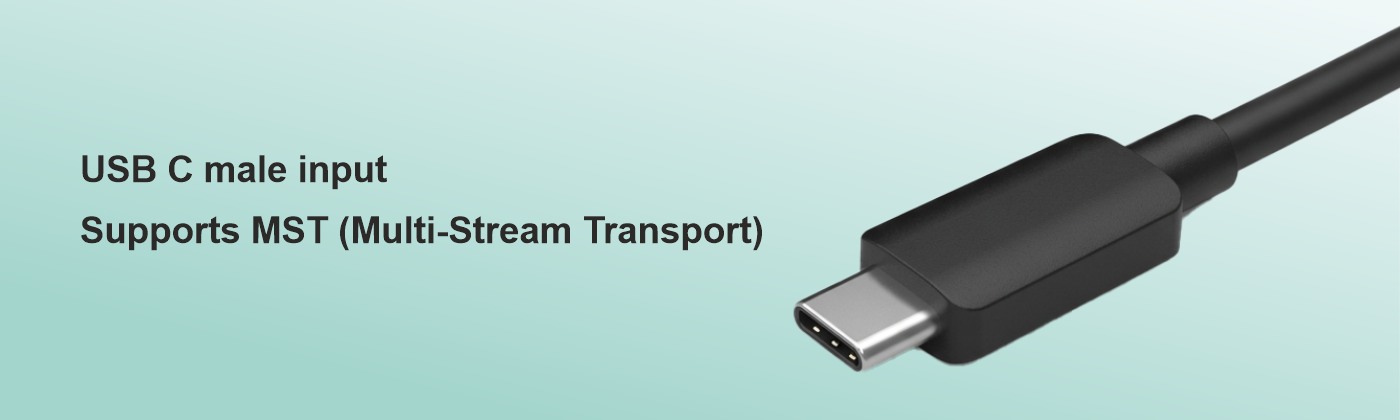

USB C male input,
2 HDMI female output,

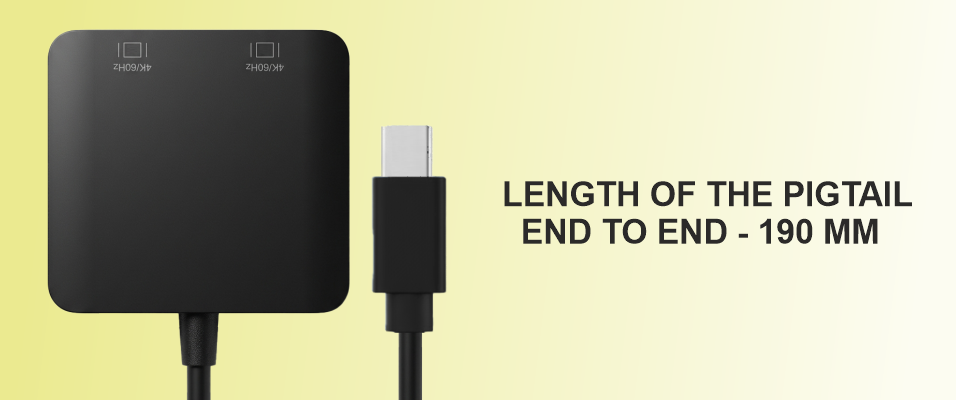

Length of the pigtail end to end -190 mm,
HDMI resolutiosn 4K 60 Hz / HDR Supports MST (Multi-Stream Transport)

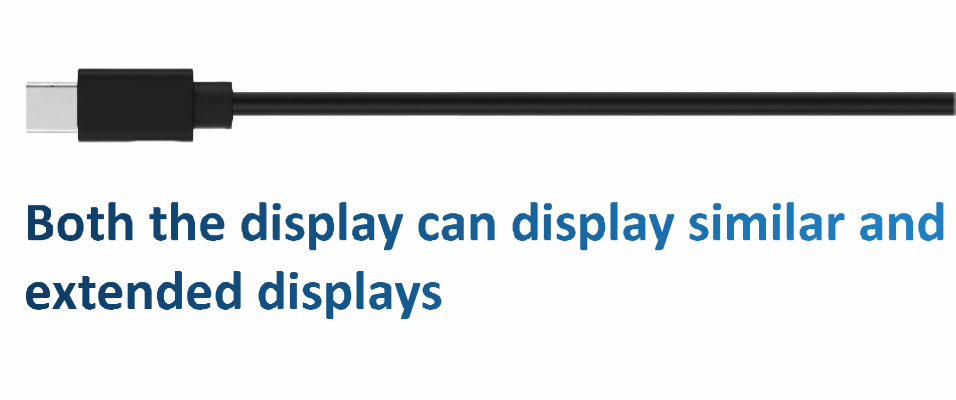

Hdcp 2.2 /1.4 compliant, Both the display can display simlar and extended displays
HDMI output can support cables up to 10 mtrs,
Anti theft tie hole of 3 mm od provided,
Colour r black colour.

CONNECTOR A USB C MALE – Input
CONNECTOR B 2 HDMI- out put

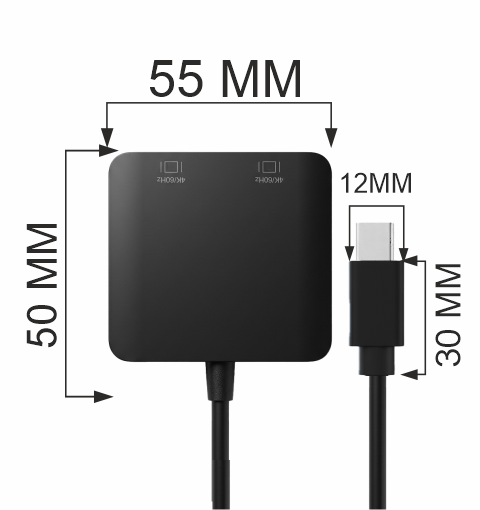

LENGTH END TO END 190MM
RESOLUTION 4 K 60Hz
DISPLAY OUT Mirror / Extended display
TIE HOLE OD 3 MM
SUPPORT DP 1.4 ALT Mode / MST / HDCP 2.2 /1.4
BANDWIDTH 32.4 Gbps
OUTPUT CABLE LENGTH SUPPORTED HDMI OUTPUT CAN SUPPORT LENGTHS UP TO 10 MTRS
COLOUR BLACK
