3BX24 DP TO 3 HDMI CONVERTER

Product Description

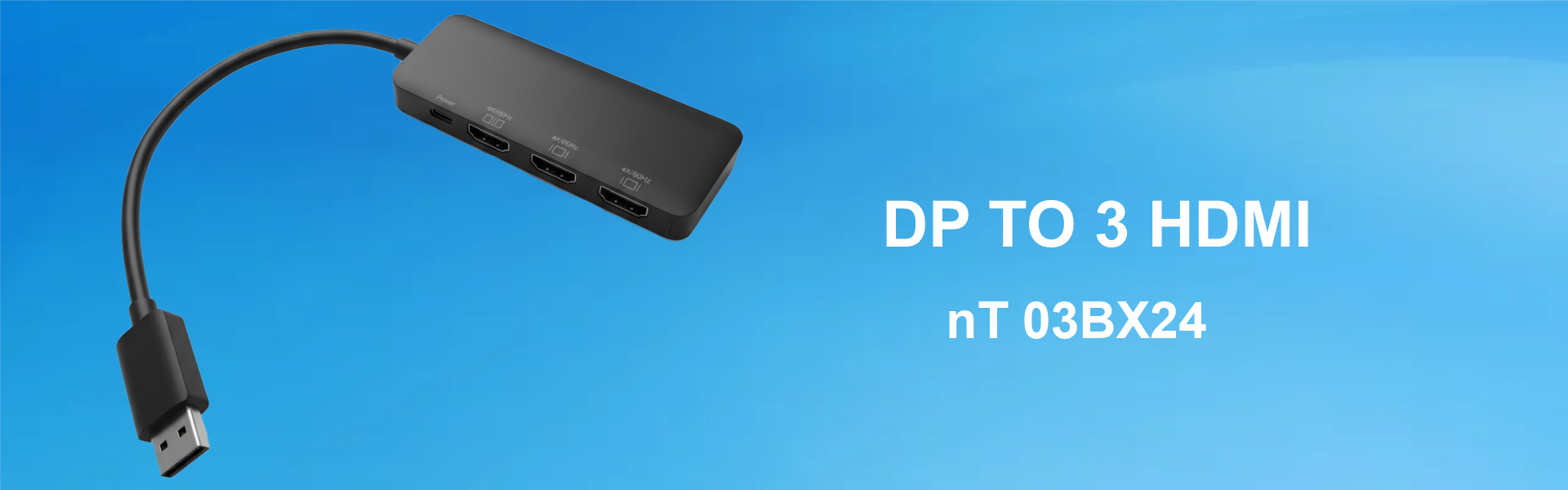

nT03BX24 DP TO 3 HDMI

nT03BX24 DP to 3 HDMI is a DisplayPort 1.4 to triple HDMI Adapter, allowing to extend DisplayPort based host to 3 HDMI ports with ultra high definition. Supporting DP1.4 alt mode, this product allows to output max dual 4K/60Hz or Triple videos (max 4K/60Hz+2x4K/30Hz) simultaneously under MST mode. It allows users to view more information and data and images in 3 extended display and increases productivity and speed . Usb Micro port provided for power 5v – 0.3w . Supports HDCP2.2 &1.4 , HDR , Application control room , designing , animation , gaming , security , programing ……

Specification

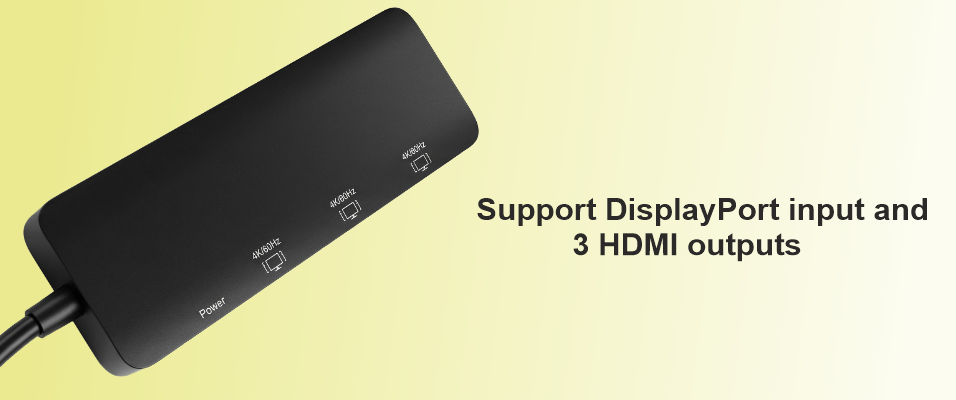

*Support DisplayPort input and 3 HDMI outputs ,
*Compliant with DP1.4 alt mode up to 8.1Gbps (HBR3),
*downward compatible with 5.4 Gbps (HBR2),
*2.7 Gbps (HBR) and 1.62 Gbps (RBR) ,

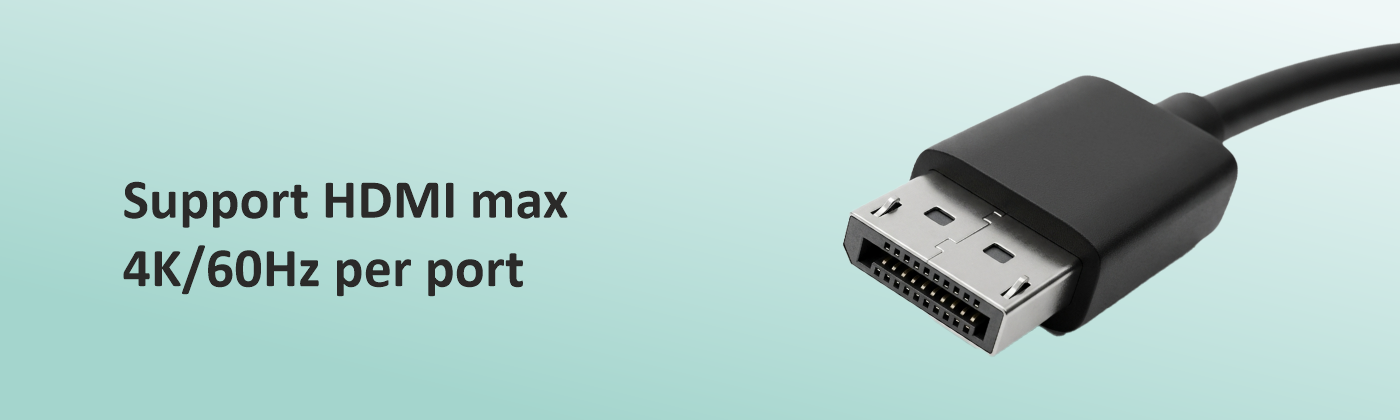

*Support HDMI max 4K/60Hz per port,
*dual max 4K/60Hz under MST (output different pictures simultaneously) or output triple displays(max 4K/60Hz+2x4K/30Hz) under MST ,
*Support 8/10/12 bit color depth output ,
*Support output pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0 ,
*Support HDCP2.2&1.4Support HDR which ensures every moment of a video is displayed at its ideal values for depth, detail, brightness, contrast and wider color gamuts—on a scene-by-scene or even a frame-by-frame basis ,
*USB Micro for power 5V .

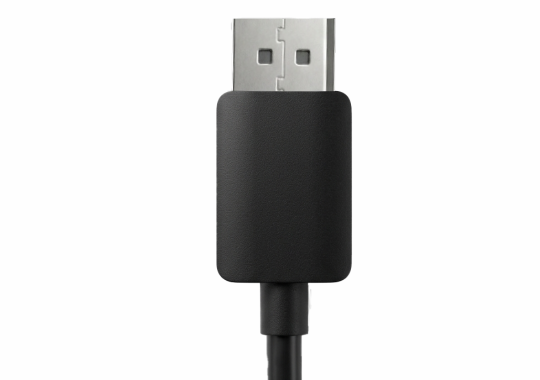

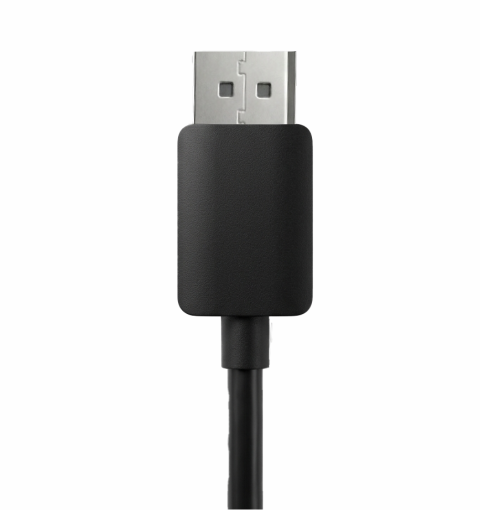

INPUT 1 DISPLAY PORT MALE
 OUTPUT 3 HDMI
POWER USB MICRO – 5 V
RESOLUTION dual display – max 4K/60Hz and triple display – max 4K/60Hz+2x4K/30Hz (Under MST )
 HDCP 2.2 / 1.4
SUPPORTS HDR
OUTPUT CABLE LENGTH HDMI  UP TO 15 MTRS
COLOUR BLACK
