3BX23 MINI DP TO HDMI + VGA

Product Description

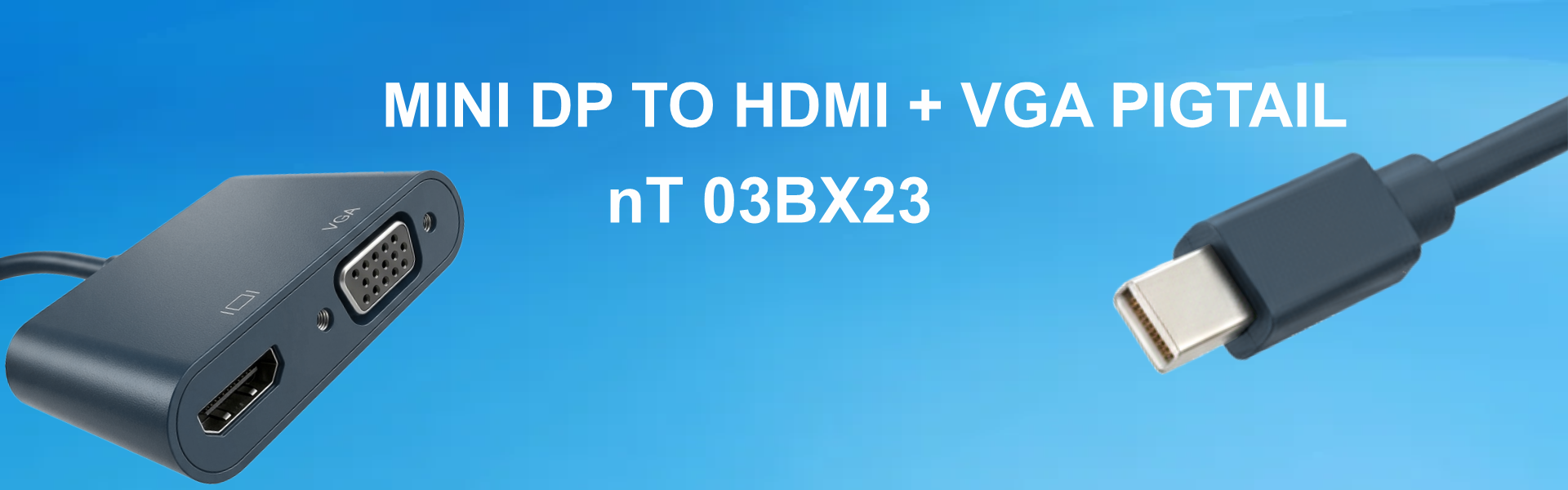

nT03BX23 Mini DP TO HDMI + VGA Pigtail

nT03BX23 Mini DP to HDMI + VGA Pigtail converts Mini DP signal into VGA and HDMI video and audio signals . It helps to connect HDMI or VGA display or projectors to the latest Mini DP interface of the sources like laptop , computers etc .. , .Supports HD 1920×1200 / 1080p 60 Hz resolution , 7.1ch Audio, HDCP 1.4 . At a time any one output from HDMI or VGA works . The pigtail dose not support bi directional use .It is provided with anti theft tie hole – so that it can be tied to the display cable – avoiding misplacement and theft . Used for AV Integrations , pro audio like Audiotrium , meeting room , class rooms , hospitals , studio ……

Specification

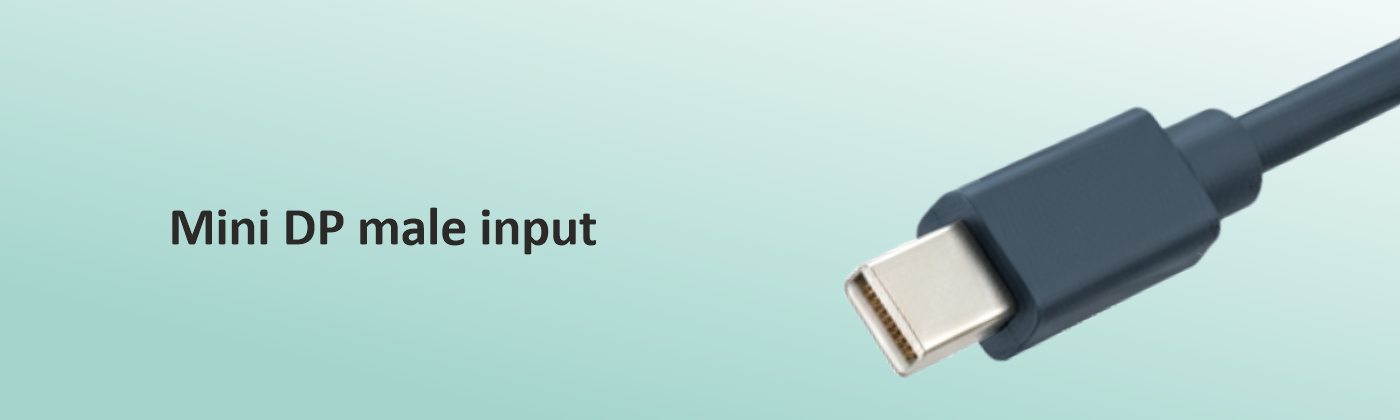

Mini DP male input,
HDMI / VGA female output,

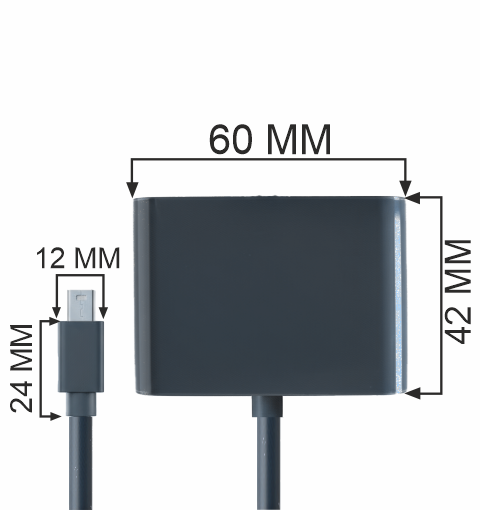

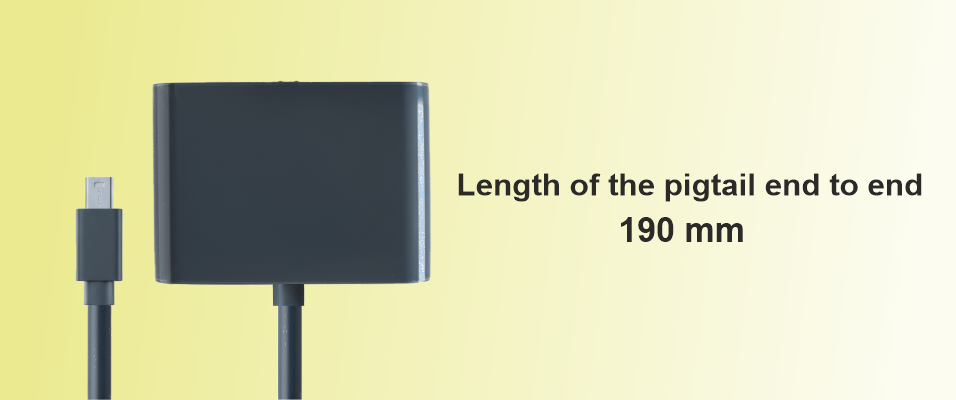

Length of the pigtail end to end -190 mm,
Supports resolutions from uxga to 1080 p,
Hdcp compliant,

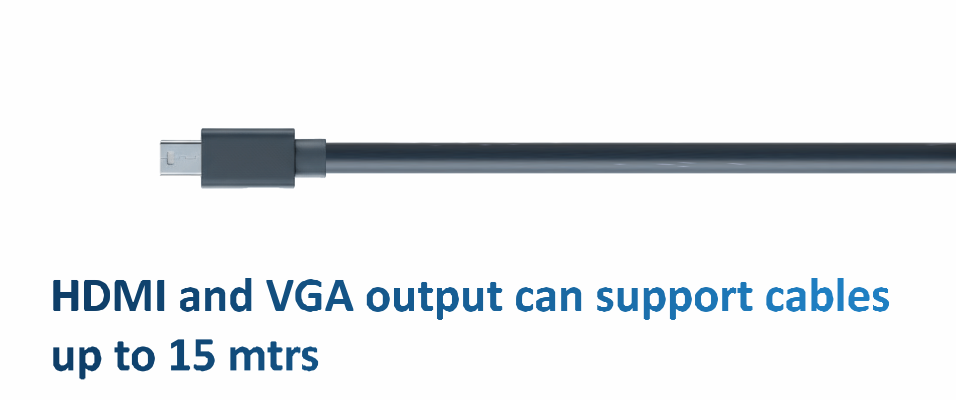

HDMI and VGA output can support cables up to 15 mtrs,
Anti theft tie hole of 3 mm od provided,
Colour ral 5008 – blue black colour.

CONNECTOR  A Mini DP MALE – Input
 CONNECTOR B HDMI FEMALE / VGA FEMALE – out put
LENGTH  END TO END 190MM
RESOLUTION UP TO UXGA TO 1080P 60Hz
DISPLAY OUT HDMI or VGA Output at a time
TIE HOLE OD 3 MM
OUTPUT CABLE LENGTH SUPPORTED HDMI / VGA OUTPUT CAN SUPPORT LENGTHS UP TO 15 MTRS
COLOUR RAL 500B (BLUE-BLACK)
