Product Description

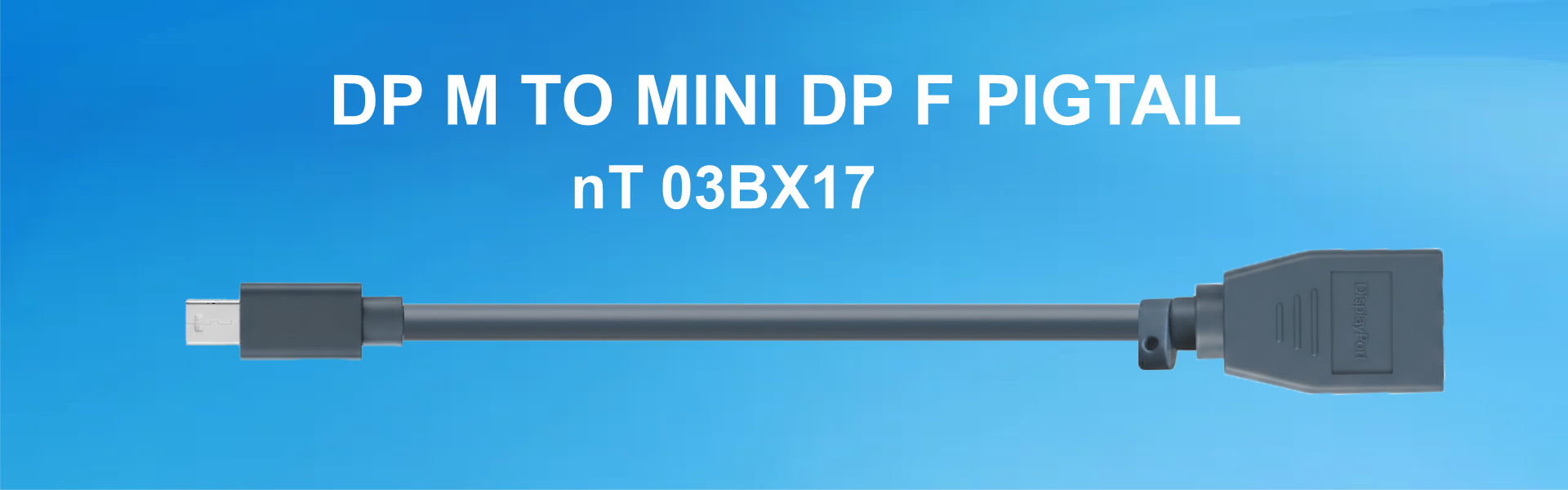

nT03BX17 Mini DP M To DP F Pigtail

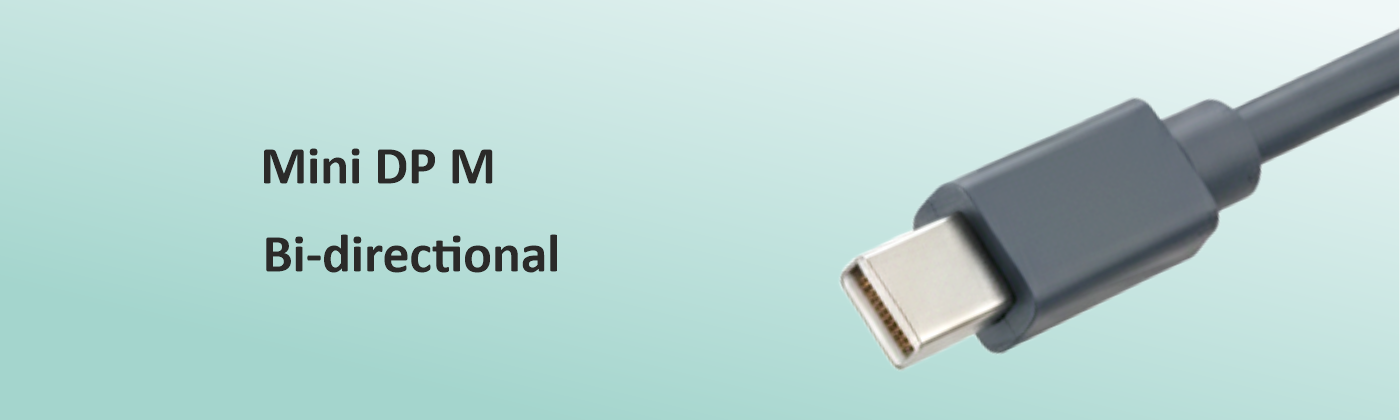

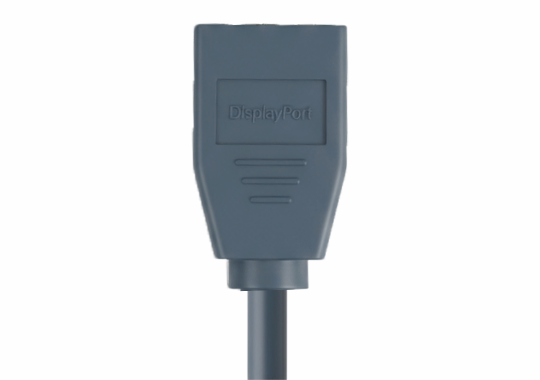

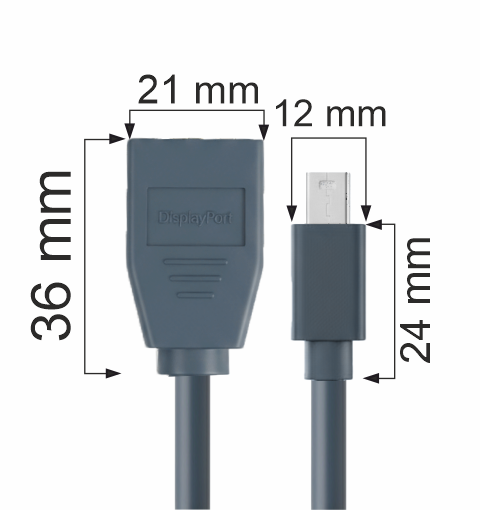

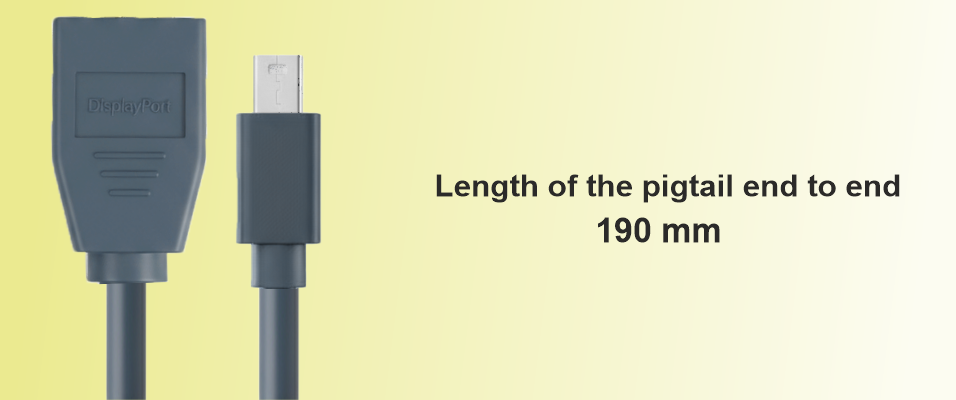

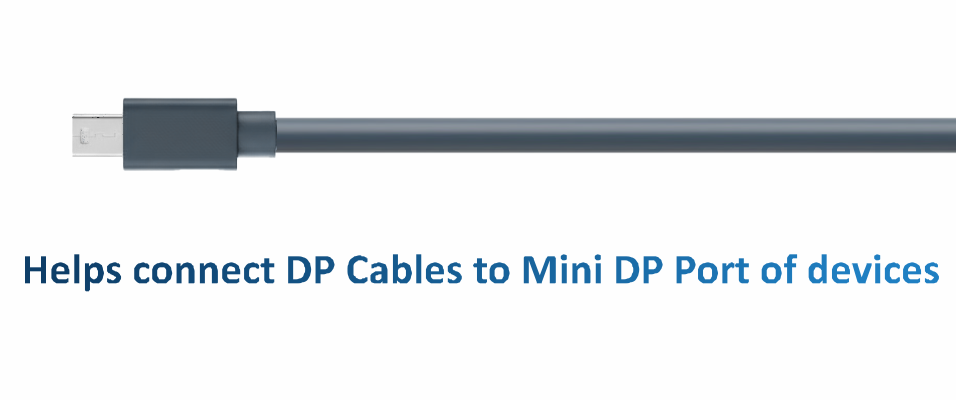

Mini DP M To DF Pigtail is designed for high-performance connectivity. Mini DP male on side A and , DP female on side B , Used to convert DP to Mini DP , It enables to connect a DP male cable to Mini DP Source or device . Outer Housing Material – PVC Moulded , Dual Moulding – inner and Outer for better strength , Total length 190 mm including connector , cable is made up of 30 awg twisted differential pairs . Pigtail enables flexibility and ease to connect DP Cables in tight spaces , it also protects Mini DP port . Also available in DP F Panel mount option . Pin material – phosphor bronze , Plating : Gold plaed . Ensures reliability and durability for various applications.Supported resolution 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST)& 3D Stereo (2560x1600p 120Hz) HDCP , EDID , 3D . Used for AV Integrations , pro audio like Audiotrium , meeting room , class rooms , hospitals , studio ……
