2BB02 MIC CABLE 24 AWG

Video Link

Product Description

nT02BB02 Mic cable is a flexible balance audio cable

Mic cable is a flexible balance audio cable with 1 twisted pair + shield . Each pair is made of 2 wires twisted together marked red and blue and the conductor is annealed fine copper strands of 24 awg (27×0.10mm) . The shield is spiraled around the twisted pairs – the shield is made up of fine strands (80 * 0.12) . The overall insulation of flexible pvc is of od 6.00mm – .The cable is well suited for audio system integrations like auditorium , studio , education , medical , events ….

Specification

Annealed OFC Coper 27 x 0.10 mm (24 awg )
1 pair ( 2 c ) + Shield Round Microphone Cable
CL3 flame resistant Rated Jacket suitable for In wall installations
100 % OFC Copper Shield – to avoid EMI and RF Interference
2 c identification by Colour Blue and Red Insulation
Cable od 6.0 mm
Meter marking at every meter for easy length calculation
Packed in 300 m easy Pull Box
Available colour Black

Conductor Annealed OFC Copper
Conductor Gauge 2 c – 27 x 0.10 mm (24 awg )
Cable Shape Round
Insulation Pvc – Red / Blue -1.5 mm
Shield Annealed OFC Copper 80 x 0.12 mm – spiral coverage
Cable OD PVC – 6.0 MM
Cond Ohm/km 87.1 ohm
Conductivity 98 %
Current A 9
Inductance 1.3992 uH/m
Capacitance 162.0003 Pf/m
Packaging 300 M easy pull Boxx
Colour Black

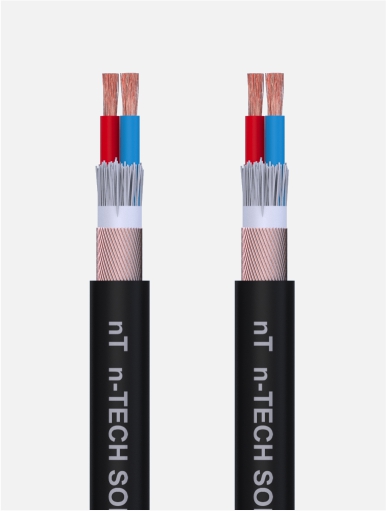

Main Image
Small Image 1
Small Image 2
Small Image 3
Small Image 4
“
