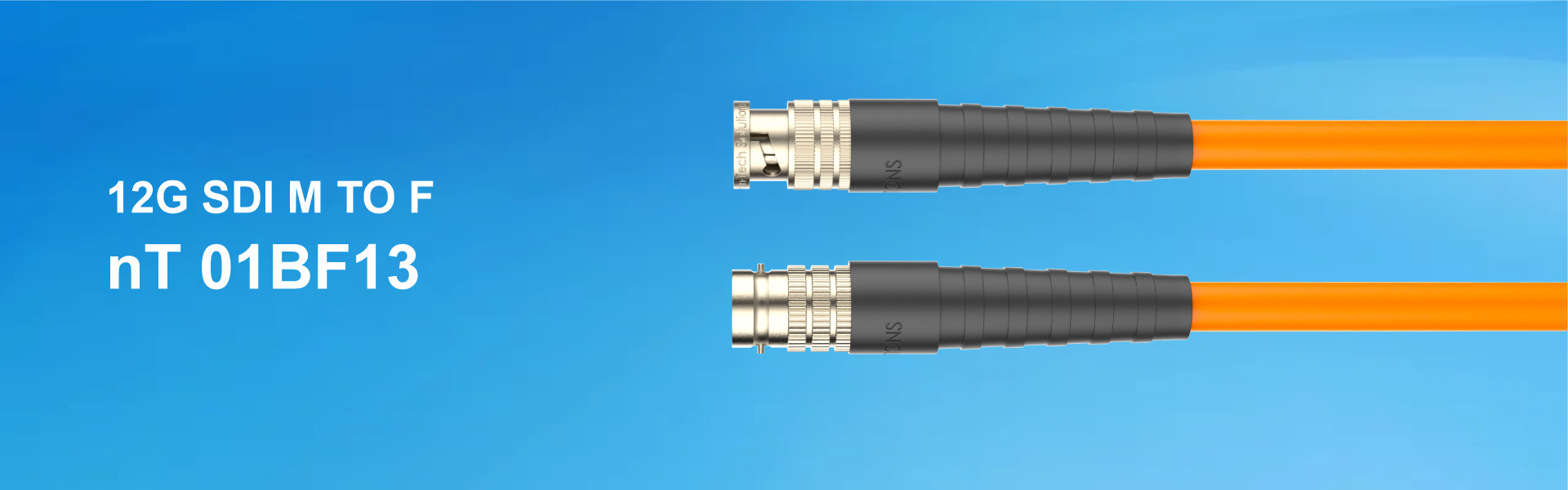

1BF13 12 G SDI M TO F

Product Description

1BF13 SDI BNC F TO SDI BNC M 12G SDI 6 CABLE

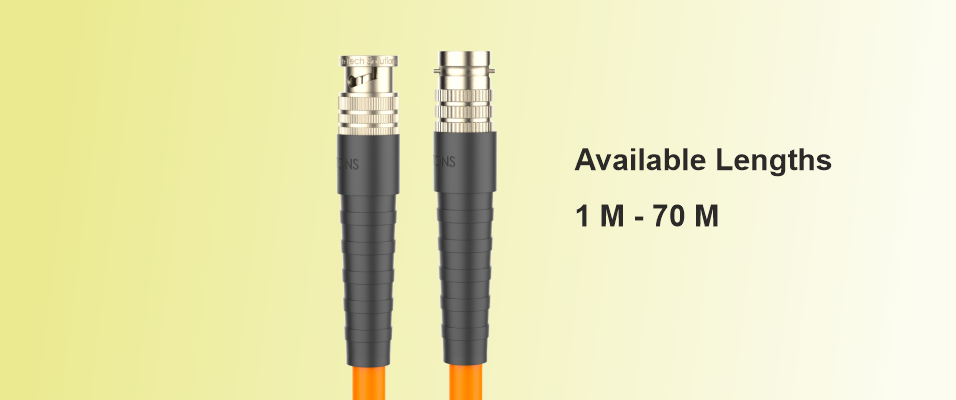

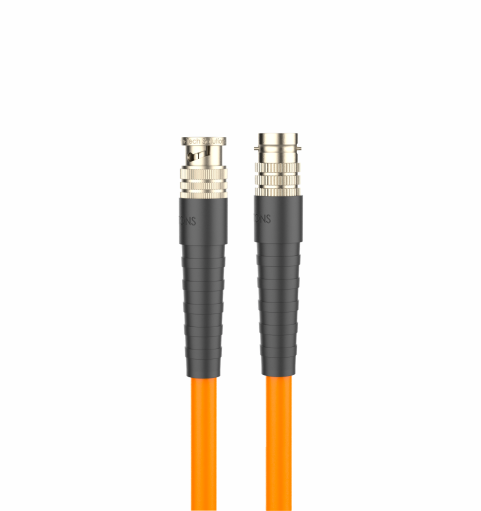

SDI M to SDI BNC F cable is made of SDI 6 Cable , the cable supports 12G Signals . The cable supports connection between normal BNC to BNC devices . BNC Connectors are made of Brass and teflon material . The connectors are nickel coated and pin is gold plated . The connectors and cables are 75 ohms and supports up to 12 G Signals and resolutions up to 4K 60 Hz . The connectors are machine crimped to the cable . The coaxial cable conductor is 18 awg silver coated copper and shielding is 95% coverage for the best performance . Colour : Orange . Available Length 1 – 70 Mtrs .

Specification

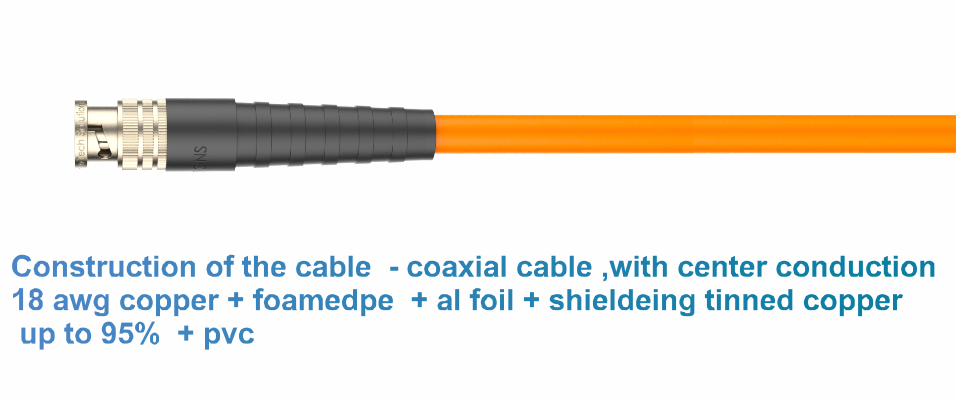

* Construction of the cable – coaxial cable ,with center conduction 18 awg silver coated copper + foamedpe + al foil + shielding tinned copper up to 95% + pvc

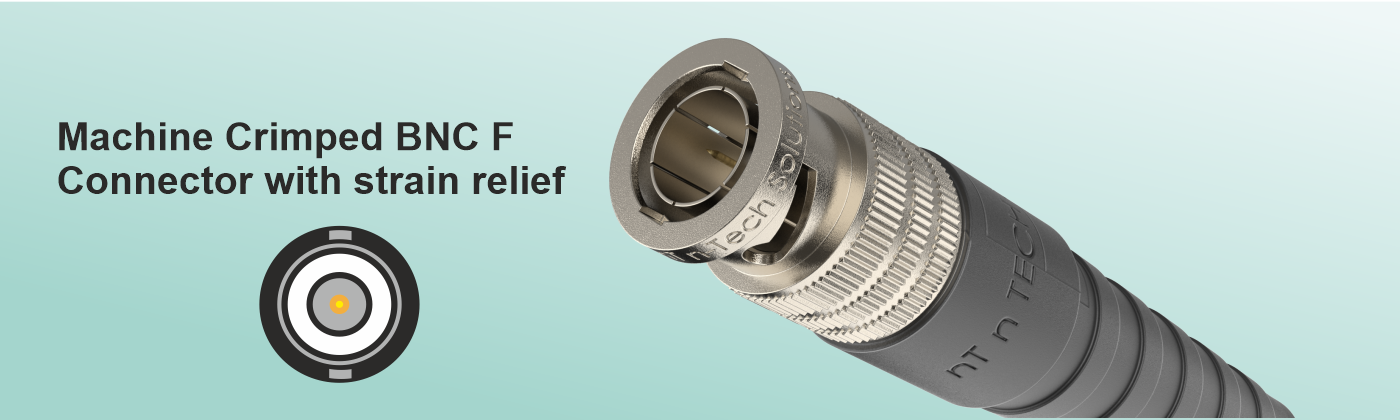

* Machine Crimped BNC M Connector with strain relief * Machine Crimped BNC F Connector with strain relief * Nickel plated body and gold plated pins
* Supports 75 Ohms .
* Support Video and Audio Signals .
* Supports 4K 60 Hz resolutions
* Speed 12 G * Available Lengths – 1-70 Mtrs



Connector A BNC F Connector
Housing Brass + PVC Strain relief
Coating Nickel / Gold
Connector B BNC M Connector
Housing Brass + PVC Strain relief
Coating Nickel / Gold
Connection Type Machine C Crimping
Cable  Coaxial Cable
Ohms 75
Resolution 4K 60 Hz
Speed 12 G
Center Conductor Silver Coated Copper 18 AWG
Shield 95 % Tin Coated Copper
Colour Black
 Length Available 1 – 70 mtrs
