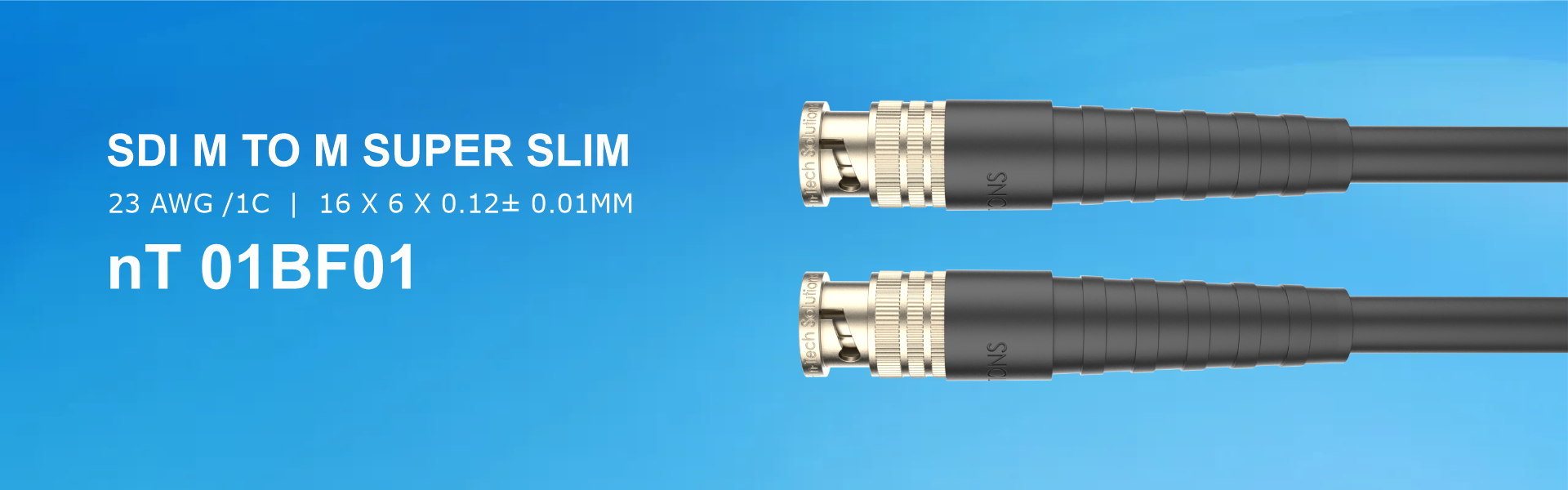

1BF01 SDI M TO M SUPER SLIM

Product Description

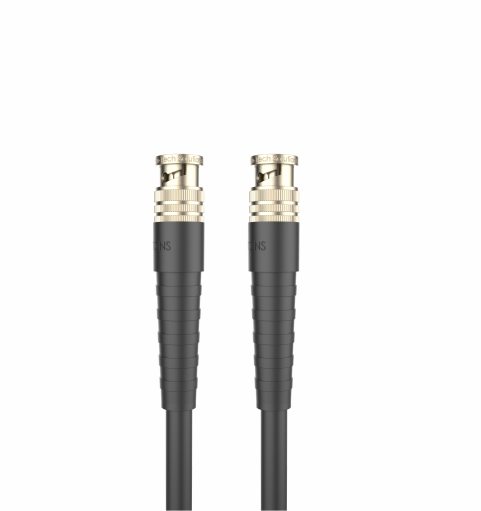

1BF01 SDI M TO SDI BNC M SLIM CABLE

SDI M to SDI BNC M cable is made of slim SDI Cable , the cable supports 6G Signals . The cable supports connection between normal BNC to BNC devices . BNC Connectors are made of Brass and teflon material . The connectors are nickel coated and pin is gold plated . The connectors and cables are 75 ohms and supports up to 6 G Signals and resolutions up to 1080p 60 Hz . The connectors are machine crimped to the cable . The coaxial cable conductor is 23 awg and shielding is 95% coverage for the best performance . Colour : Black . Available Length 1 – 3 Mtrs .

Specification

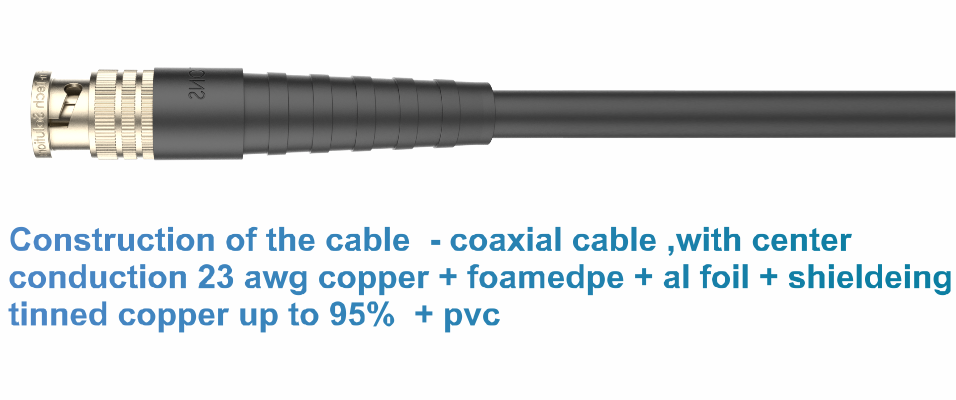

* Construction of the cable – coaxial cable ,with center conduction 23 awg copper + foamedpe + al foil + shieldeing tinned copper up to 95% + pvc

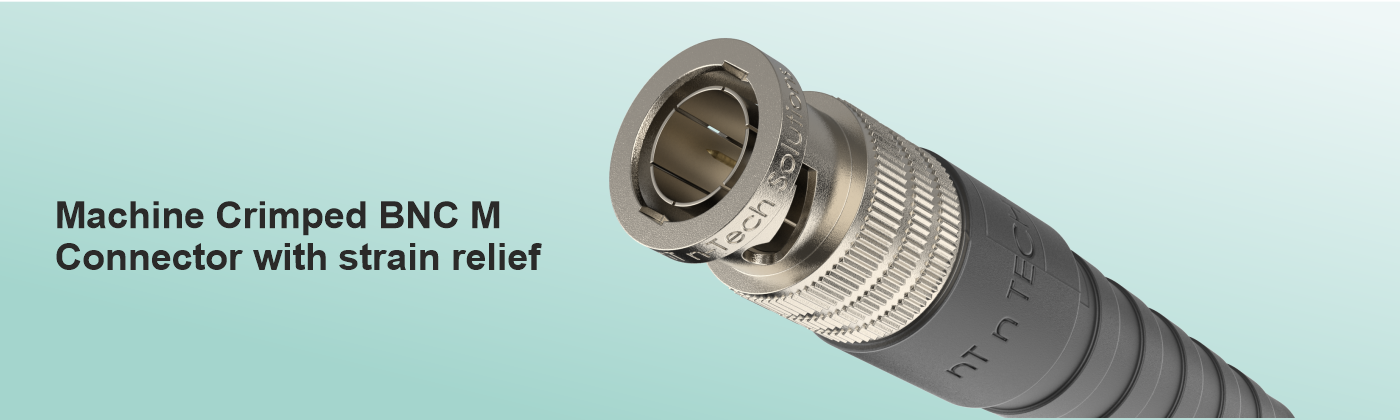

* Machine Crimped BNC M Connector with strain relief
* Nickel plated body and gold plated pins
* Supports 75 Ohms .
* Support Video and Audio Signals .
* Supports 1080p 60 Hz resolutions
* Speed 6 G

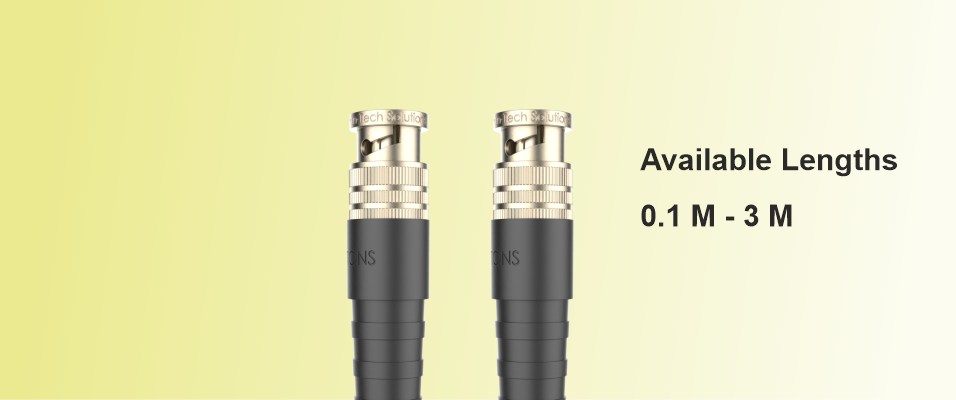

* Available Lengths – 1-3 Mtrs



Connector A BNC M Connector
Housing Brass + PVC Strain relief
Coating Nickel / Gold
Connector B BNC M Connector
Housing Brass + PVC Strain relief
Coating Nickel / Gold
Connection Type Machine C Crimping
Cable  Coaxial Cable
Ohms 75
Resolution 1080p 60 Hz
Speed 6 G
Center Conductor Copper 23 AWG
Shield 95 % Tin Coated Copper
Colour Black
 Length Available 1 – 10 mtrs
