7DD03B SLIM CABINET SINGLE CART

Video Link

Product Description

nT07DD03B Display Floor Cart with Slim storage 47″-98″ displays up to 110 Kgs. , compatible vesa up to 1000 x 600 mm . It is a multipurpose AV cart with 1 shelf for A V equipments . With cable management, power strip, camera mount and enclosed storage space – the cart gives full flexibility for multiple applications and ease of use . With front elegant aesthetix of acoustical panel door for the storage – avaialble in 4 colours to choose . 3″m12 Heavy duty caster wheels enables smooth and easy movement . Available in Black and White colour . Suitable for Conference rooms , Huddel rooms ,Training rooms , Educational , Hospital , Reception and digital signage applications .

Specification

nT7DD03B Point series AV cart is madeup of powder coated cr steel
Suitable for display panel up to 110 kGS –
Vesa Supported – 200X200 , 300X300 ,400×400 , 600×400 , 800X400 , 1000X600 Suitable for 47 – 98 ” displays and interactive panels .
Display height adjustment 160 mm 1 device shelf 1 camera shelf .
1 – 6 AMPS – 6 Universal Socket PDU
Storage Space : hight -550 mm ,width – 530 , depth – 85 mm
Heavy duty 3″ – M12 Caster Wheels Supports Land scape Orientation
Colour – Black / White







Display Size  47 -98 “
Material  Powder coated ms steel
 Material thickness 1.2 mm – 2.5 mm
Weight Capacity 110 Kgs

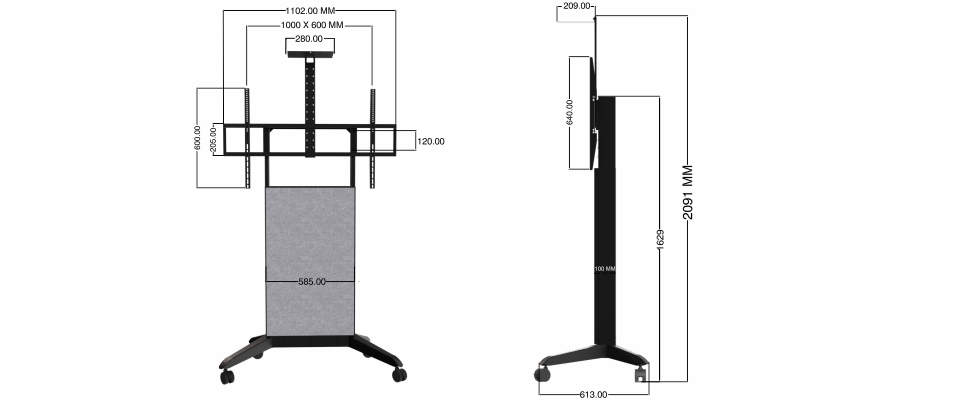

Height 2091 mm
Display Adjustment 160 mm
Vesa 200X200 ,300X300 ,400×400 , 600×400 , 800X400, 1000 X 600 ,
Camera Shelf  1 (280 mm x 209 mm )
Shelf 1 ( 530 x 550 x 85)
 Cable Management Yes
Telescopic No
Caster wheels 3″ M12
BASE SIZE 1114 x 614 mm
Colour Black / White
PDU YES – 6 AMP Universal Socket x 6
Storage Yes ( 400 X 500 )
Orientation Landscape
Main Image
Small Image 1
Small Image 2
Small Image 3
Small Image 4
“
