7DD02F AXE

Video Link

Product Description

nT07DD02F AXE series AV cart

nT7DD02F AXE series AV cart, suitable for display panel up to 150 Kgs – with max vesa 1200 x 600 mm optional 1500x 600 mm – suitable for 50 – 105 ” displays and interactive panels . With 1 device shelf and 1 camera shelf .The cart is simple to assemble and best suitable for interactive panels . The cart is topple proof from both the side of movement of cart . Available in Black and white colour . With sleek and small packing it is easy to carry and transport the cart.Suitable for Conference rooms , Huddel rooms , Training rooms , Educational , Hospital , Reception and digital signage applications .

Specification

nT7DD02F AXE series AV cart is madeup of powder coated cr steel Suitable for display panel up to 150 Kgs.
Vesa Supoorted – 200X200 ,300X300, 400×400 , 600×400 , 800X400 ,1000 X400 ,1000X600 ,1200X600 , optional 1500×600 .
Suitable for 50″ – 105 ” displays and interactive panels .
Display height adjustment 325 mm .
1 device shelf .
1 camera shelf .
1 – 6 AMPS – 6 Universal Socket PDU. Heavy duty 3″ – M12 Caster Wheels.
Supports Land scape Orientation.
Colour – Black / White.

Display Size – 50 – 105″
Material Powder coated ms steel
Material thickness 2mm
Weight Capacity 150 Kgs

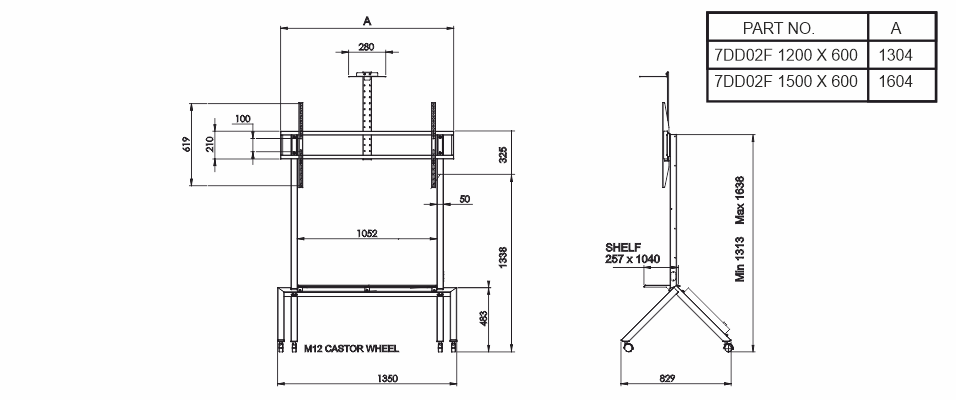

Height 1638 , Display Adjustment -325 mm
Vesa 200×200 ,300X300 ,400×400 mm , 600×400 mm,800×400 ,1000×400 ,1000×600 ,1200×600 optional 1500 x 600
Shelf 1 ( 257 x 1040 mm) , camera Shelf – 1 ( 220 x 280 mm)

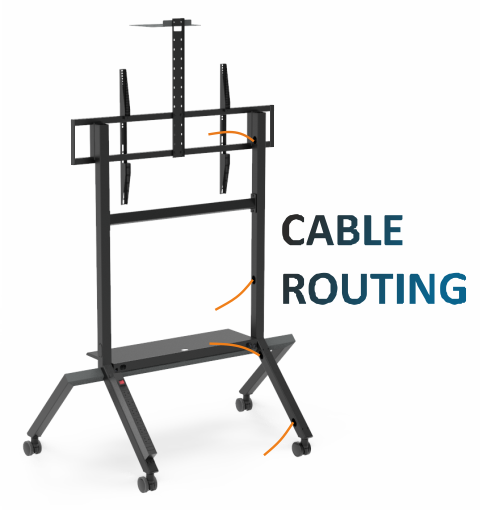

Cable Management Yes
Caster wheels 3″ M12
Base size 1350 x 830 x 483
Colour Black / White
 PDU Yes
Orientation  Landscape
