7DD02E CURVE HEAVY WITH STORAGE/PDU

Product Description

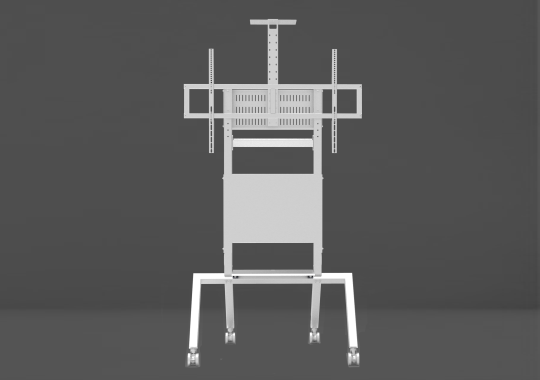

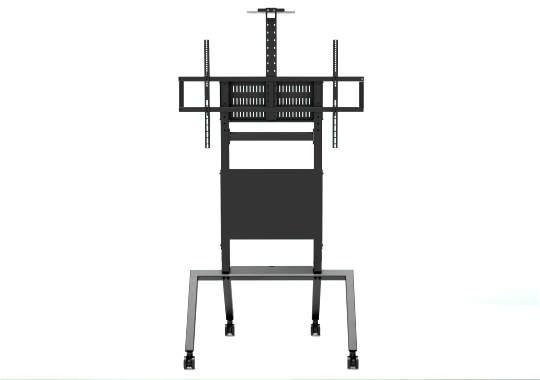

nT7DD02E A series AV cart, suitable for display panel up to 120 Kgs – with max vesa 1000 x 600 mm – suitable for 47 – 98 ” displays and interactive panels . With 1 device shelf , 1 camera shelf and storage at rear of the display – with back side covering . Front aesthetically covered . The cart is simple to assemble and best suitable for interactive panels . Available in Black and white colour . With sleek and small packing it is easy to carry and transport the cart.Suitable for Conference rooms , Huddel rooms , Training rooms , Educational , Hospital , Reception and digital signage applications .

Specification

nT7DD02E A series AV cart is madeup of powder coated cr steel Suitable for display panel up to 120 Kgs.
Vesa Supoorted – 200X200 , 300X300 , 400×400 , 600×400 , 800X400 ,1000 X400 ,1000X600.
Suitable for 47″ – 98 ” displays and interactive panels .
Display height adjustment 1638 mm.
1 device shelf 1 camera shelf .
1 – 6 AMPS – 6 Universal Socket PDU
Storage Space 614 mm x 250 x 80 mm.
Heavy duty 3″ – M12 Caster Wheels.
Supports Land scape Orientation.
Colour – Black / White

Display Size – 50 – 105″
Material Powder coated ms steel , Material thickness –  2mm
Weight Capacity 120 Kgs

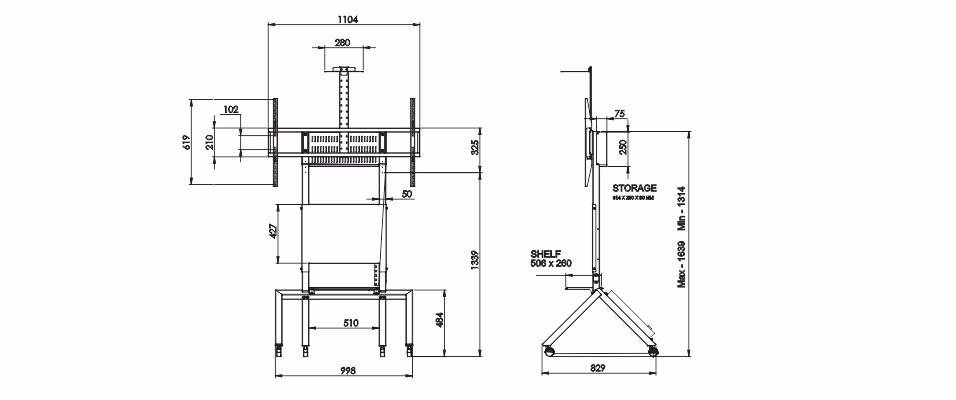

Height 1638 mm , Display Adjustment –  325 mm
Vesa 200×200 ,300X300 , 400×400 mm , 600×400 mm,800×400 ,1000×400 ,1000×600
Shelf 1 ( 506 x 260 mm) , camera Shelf – 1 ( 220 x 280 mm)
Cable Management Yes
Caster wheels 3″ M12
Base size 990 x 830 x 406
Colour Black / White
 PDU Yes
Storage Yes (614 x 250 x 80 mm)
Orientation  Landscape
