7DC01 TABLE MOUNT HEAVY

Video Link

Product Description

nT7DC01 is a heavy duty table mount for displays ranging from 57 ” to 86 ” . Available in Black Colour . The table mount is simple to assemble and use and rugged designed – it offers various feature like height adjustment, compatibility for adding video bar , Heavy duty base for stability , Dual pillar for stablity and balance . The mount is available in black color and also it can be provided in white on order The mount is available in 3 models nT07DC01E suitable for displays from 42″ to 75″ vesa 800×400 weight capacity – 60 Kgs, nT07DC01F suitable for display from 55″ to 86″- vesa 1000×600- weight capacity – 60 Kgs . suitable for office, home, reception, digital signage, restaurants, educational and hospital applications

Specification

Made of CR Powder Coated Steel.
Heavy duty Base.
Dual Poll.
Easy and Simple Assembly .
Vesa supported 200 x 200 to 800 x 400 and 200 x 200 to 1000 x 600.
Weight Capacity 60 Kgs.
Provision to Mount Video Bar mount.
Adjustable Height.
Available in Black Colour .

Material Powder Coated cr steel
Material Gauge 1.5 mm / 2 mm / 5 mm

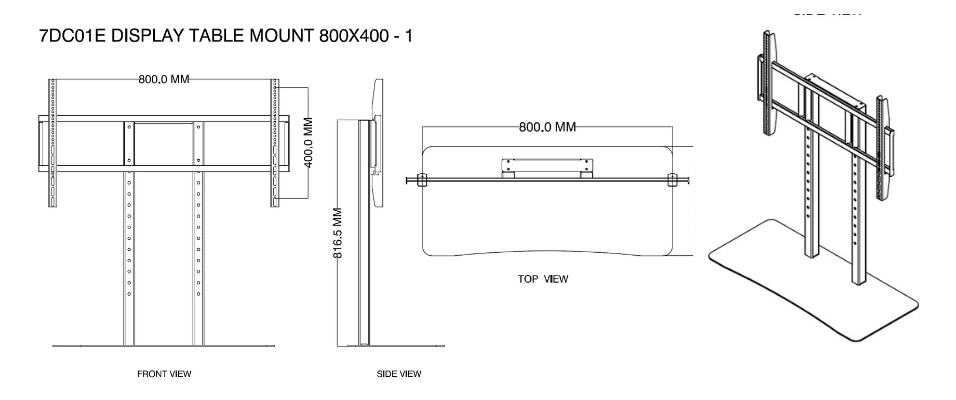

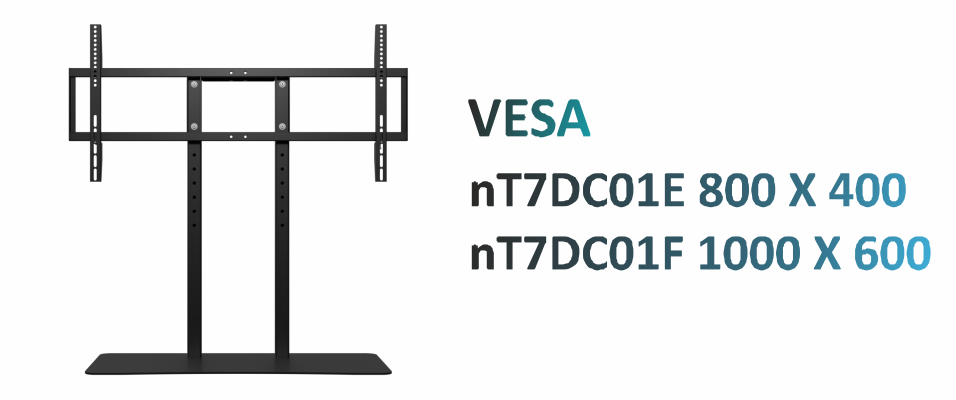

Vesa nT7DC01E 200×200 , 400×400 ,600×400 , 800×400 , nT7DC01F 200×200 , 400×400 ,600×400 , 800×400 , 1000 x 600
Display Size supported nT7DC01E – 46″ – 75 ” , nT7DC01F – 57″ – 86″
Base Dimensions 350 x 800 mm
Height Adjustment 500 mm
 Weight Capacity 60 Kgs
 Colour Black

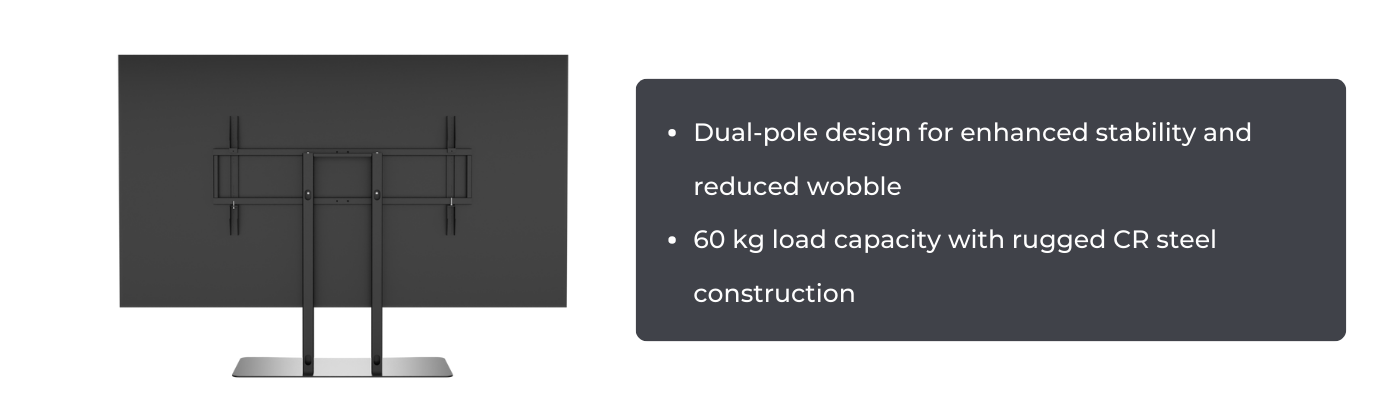

Main Image
