Product Description

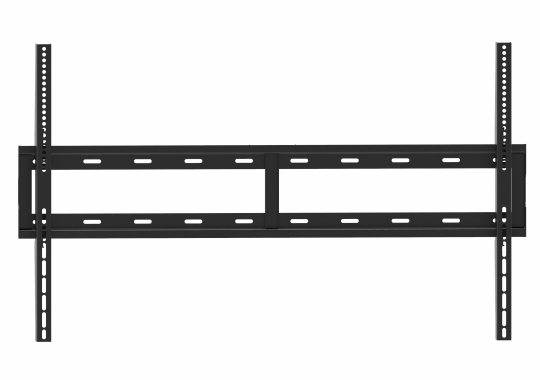

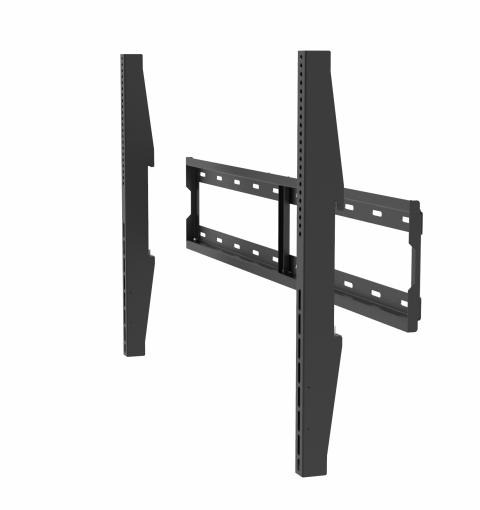

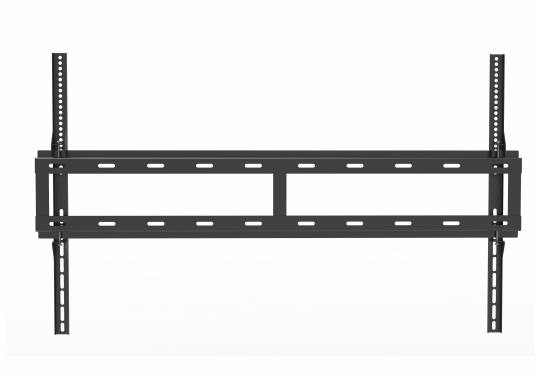

nT07DA17 Heavy duty pop out mount
Heavy duty pop out mount is the best suitable wall mount for large format displays which requires niche paneling and should be easy to access for service . The display can be pulled out by pulling the cord and can be retracted back by pushing the display . It has x,y,z axis micro adjustment for easy alignement with panel and pop out function for easy service . The top bottom micro adjustment is between 0-20 mm , the front back micro adjustment is 30 mm . Available in 3 ranges nT07DA17A suitable for displays from 42″ to 65″-max vesa 600×400 -weight capacity -50 Kgs . nT07DA17B suitable for displays from 55″ to 86″-vesa 800×600 -weight capacity -75 Kgs . nT07DA17C suitable for displays from 65″ to 100″-vesa 1000×600 -weight capacity -100 Kgs . suitable for office , home , reception , digital signage , education and hospital applications .
