Product Description

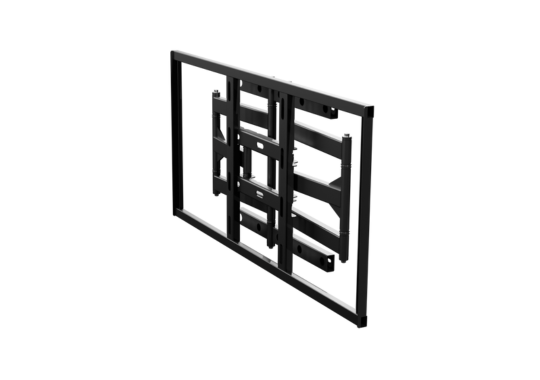

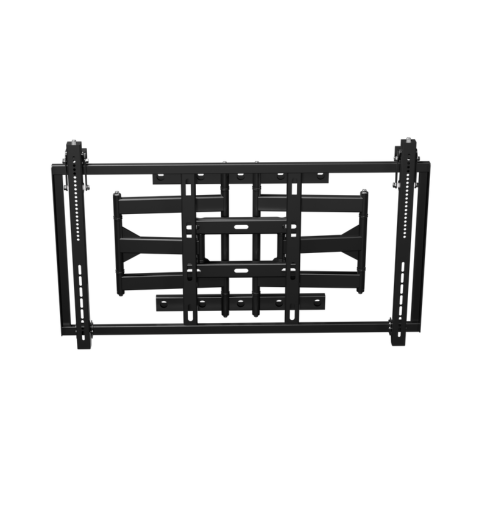

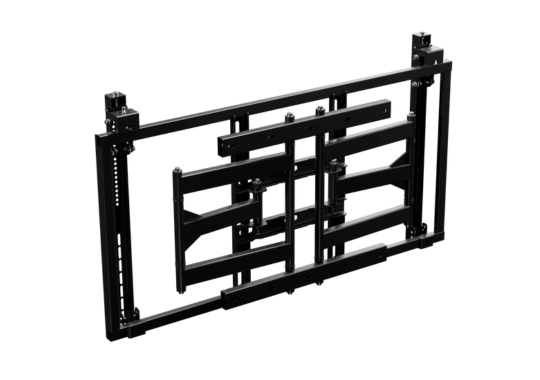

nT07DA13 A/B/C is a heavy duty swivel cantilever mount for display, The mount is made up of powder coated cr steel . The gauge of steel used is 2.0 mm to 4 mm – The swivel mount is simple to use and rugged in design . it offers various feature like smooth movement , pull out , push back , left right tilting , front back tilting , up down keystone adjustment . The mount has 45 degree of swivel movement in left and right . mount is available in black color and also it can be provided in white on order . The mount is available in 3 models nT07DBA13 A suitable for displays from 55″ to 98″ vesa 1000×600 weight capacity – 100 Kgs, nT07DA13B suitable for display from 75″ to 100″- vesa 1200×600- weight capacity – 100 Kgs , nT07DA13C suitable for display from 75″ to 105″- vesa 1500×600- weight capacity – 110 Kgs . Smooth swivel function makes it easy tfor installation , easy servicing and maintenance . suitable for office, home, reception, digital signage, restaurants, educational and hospital applications



Specification

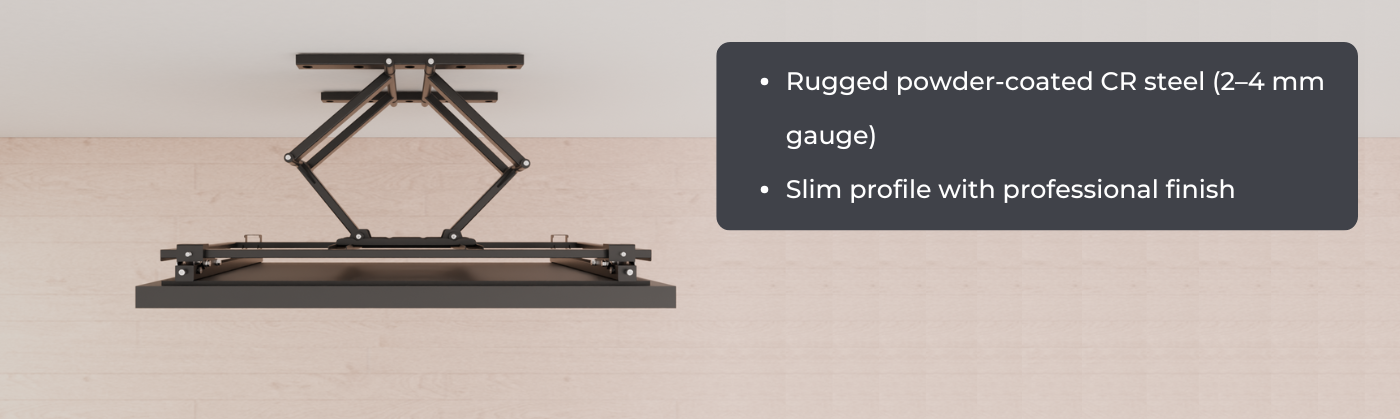

Made of CR Powder Coated Steel.
Rugged design.
Smooth Swivel movement.
Easy pull out and push back of display.
45 degress swivel – left and right.
Up down tilt up to 10 Degree.
Easy and Simple Installation.
Vesa supported 200 x 200 to 1000 x 600 and 200 x 200 to 1200 x 600 and 200×200 to 1500 x 600
Weight Capacity 100 Kgs / 110 Kgs
Available in Black Colour .

Material Powder Coated cr steel
Material Gauge 2 mm / 4 mm

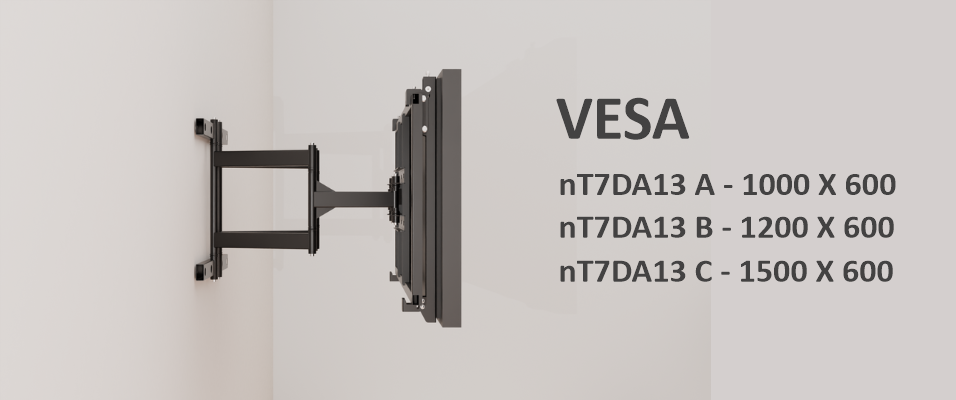

Vesa Vesa : nT7DA13A 200×200 , 400×400 , 800×400 , 1000×600 , nT7DA13B 200×200 , 400×400 , 600×400 ,800×400 1000×600 ,
1200×600 , nT7DA13C 200×200 , 400×400 , 600×400 , 800×400 1000×600 , 1200×600 , 1500×600
Display Size supported nT7DA13A – 55 – 86 ” , nT7DA13B – 75″ – 98″ , nT7DA13C – 75″ – 105
 Up Down Tilt 10 degree

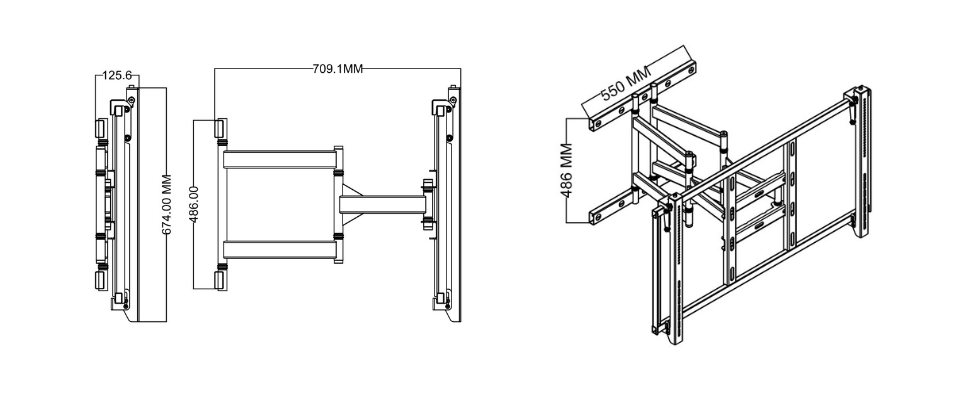

Closing Depth 125.6mm
Pull out Depth 709.1mm
Swivel Angle 45 Degree
 Weight Capacity 100/110 Kgs
Colour Black
