7DA11 HEAVY CANTILEVER 180 D

Product Description

nT07DA11 Heavy Duty 90 degree cantilever wall mount series

Heavy Duty 90 degree cantilever wall mount series for flat and curved display panels -with up and down 15 degree tilting function , dual arm and 90 degree left right motion – available in 3 ranges – nT07DA11A suitable for displays from 42″ to 75″-max vesa 600×400 -weight capacity -50 Kgs . nT07DA11B suitable for displays from 55″ to 86″-vesa 800×600 -weight capacity -75 Kgs . nT07DA11C suitable for displays from 65″ to 100″-vesa 1000×600 -weight capacity -100 Kgs . The mount is provided with tilting and height adjustment options . suitable for office , home , reception , digital signage , education and hospital applications.

Specification

made up of powder coated ms steel material.
The mount has 15 degree up and 15 degree down tilting adjustment through the bolt provided on the arms.
The mount can be extended out and tilted left and right to 90 degrees.
supports displays from 42″ to 75″-max
vesa 600×400 weight capacity -50 Kgs
the minimum closing depth from the wall
supports displays from 55″ to 86″
vesa 800×600 -weight capacity -75 Kgs
the minimum closing depth from the wall
supports displays from 65″ to 100″
vesa 1000×600 weight capacity -100 Kgs
Available in Black Colour .

MATERIAL POWDER COATED MS STEEL
DISPLAY SIZE A-42-72″/B-55-86″/C-65-10″
WEIGHT A-50 kgs/B-75 KGS/C-100 KGS

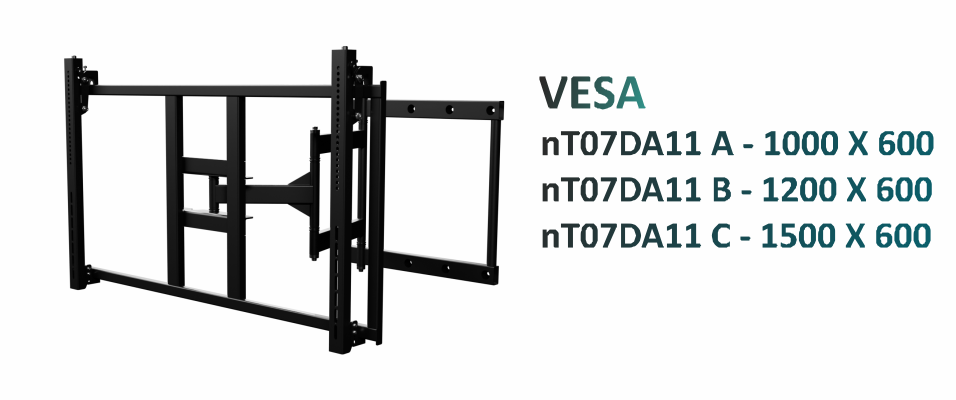

VESA A-200X200,200X400,300X300,400X400,600X400

B-200X200,300X300,200X400,400X400,600X400,800X400,800X600M

C-200X200,300X300,200X400,400X400,600X400,800X400,800X600,1000X400,1000X600
ANGLE ADJUSTMENTS 15 deg up/15 deg down for all

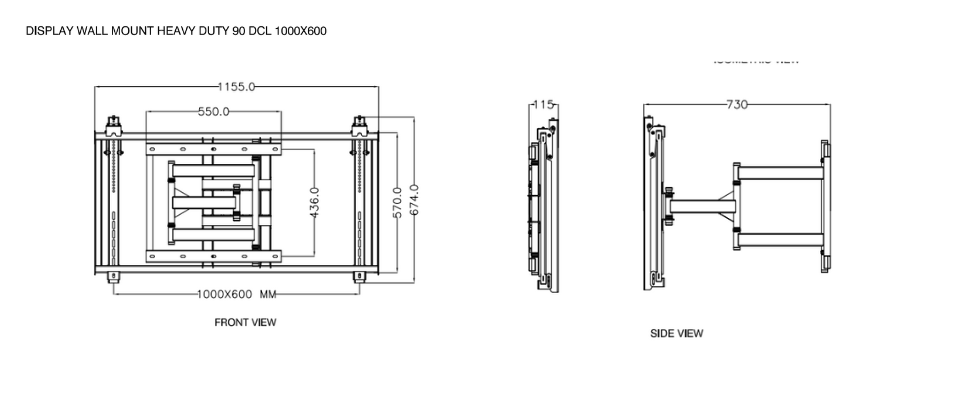

DEPTH A-95mm,B-106mm,C-118mm
MAX EXTENSION A-250mm,B-300mm,C-300mm
COLOUR BLACK

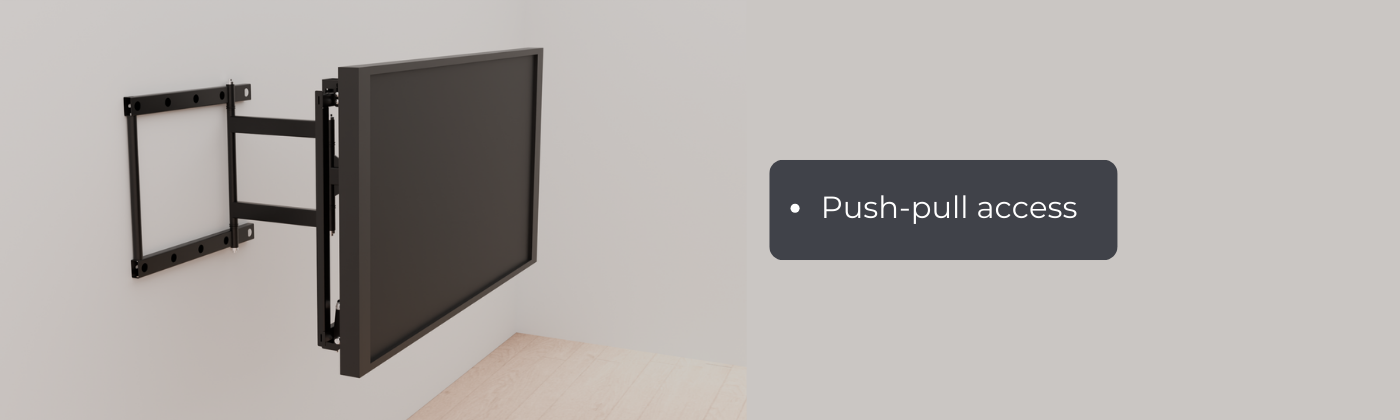

Main Image
