7DA04 HEAVY DUTY FIXED WITH TILT

Video Link

Product Description

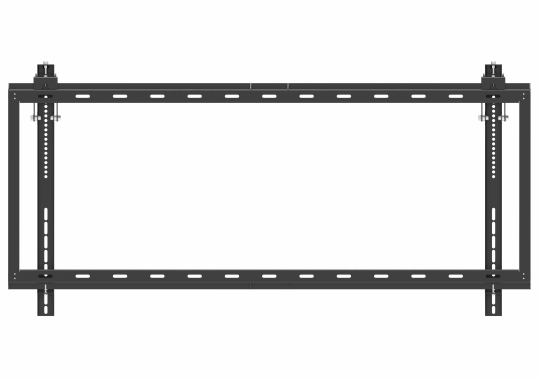

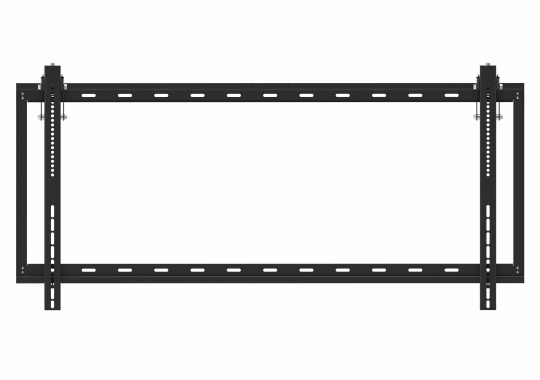

nT07DA04 Heavy Duty fixed wall mount series

Heavy Duty fixed wall mount series for flat and curved display panels -with up and down 12 degree tilting function available in 4 ranges – nT07DA04A suitable for displays from 42″ to 75″-max vesa 800×400 -weight capacity -50 Kgs . nT07DA04B suitable for displays from 55″ to 86″-vesa 1000×600 -weight capacity -75 Kgs . nT07DA04C suitable for displays from 65″ to 120″-vesa 1200×600 -weight capacity -120 Kgs . The mount is provided with tilting and height adjustment options . suitable for office , home , reception , digital signage , educational and hospital applications .

Specification

nT07DA04 is made up of powder coated ms steel material.
The mount has 12 degree up and 12 degree down tilting adjustment through the bot provided on the arms Water level is provided on the mount to make the installation easy and faster.
nT07DA04A supports displays from 42″ to 75″-max vesa 800×400
weight capacity -50 Kgs – it made up of xx mm ms steel.
supports displays from 55″ to 86″-vesa 1000×600
weight capacity -75 Kgs
supports displays from 65″ to 120″
vesa 1200×600 -weight capacity -120 Kgs-
it made up of xx mm ms steel.
Available in Black Colour.

MATERIAL POWDER COATED MS STEEL
MATERIAL THICKNESS 2MM
WEIGHT CAPACITY A-50 Kgs/B-75 Kgs./C-120 Kgs
HEIGHT 680MM
VESA 200X200MM,200X400MM,300X300MM,400X400MM,600X400MM,800X400MM,800X600MM
ANGLE ADJUSTMENT 12 DEG UP/12 DEG DOWN
HEIGHT ADJUSTMENT UPTO 20MM
COLOUR BLACK
