7DA03 FIXED WITH TILT

Video Link

Product Description

nT07DA03 fixed wall mount

Fixed wall mount series for flat and curved display panels -with up and down 12 degree tilting function available in 4 ranges – nT07DA03A suitable for displays from 32″ to 55″-vesa 400×400 -weight capacity -50 Kgs . nT07DA03B suitable for displays from 42″ to 70″-vesa 600×400 -weight capacity -50 Kgs . nT07DA03C suitable for displays from 32″ to 55″-vesa 400×400 -weight capacity -35 Kgs . nT07DA03D suitable for displays from 42″ to 70″-vesa 600×400 -weight capacity -35 Kgs . suitable for office , home , reception , digital signage , education and hospital applications .

Specification

made up of powder coated ms steel material -It has 3 parts – wall plate,
arm and tilting plate.
The mount has 12 degree up and 12 degree down tilting adjustment through
the abs knob provided on the arms Water level is provided on the mount to make the installation easy and faster.
supports displays from 32″ to 55″ -vesa 400×400 and weight
capacity up to 50 kgs – it made up of 1.6 mm ms steel.
supports displays from 42″ to 70″ -vesa 600×400 and weight
capacity up to 50 kgs – it made up of 1.6 mm ms steel
supports displays from 32″ to 55″ -vesa 400×400 and weight
capacity up to 35 kgs – it made up of 1.2 mm ms steel.
supports displays from 42″ to 70″ -vesa 600×400 and weight capacity up to 35 kgs-
it made up of 1.2 mm ms steel.

MATERIAL POWDER COATED MS STEEL
DISPLAY A-32-55″/B-42-70″/C-32-55/”D-35KGS
VESA A-C-200X200,200X400,400X400,600X400
ANGLE ADJUSTMENTS 12 DEG UP /12 DEG DOWN
DEPTH A/B-52MM,C/D-60MM,
PLATE SIZE A-180mmX890mm B-180mmX640mm C-100mmX440mm D-100mmX640mm
COLOR BLACK
KNOB MATERIAL ABS PLASTIC

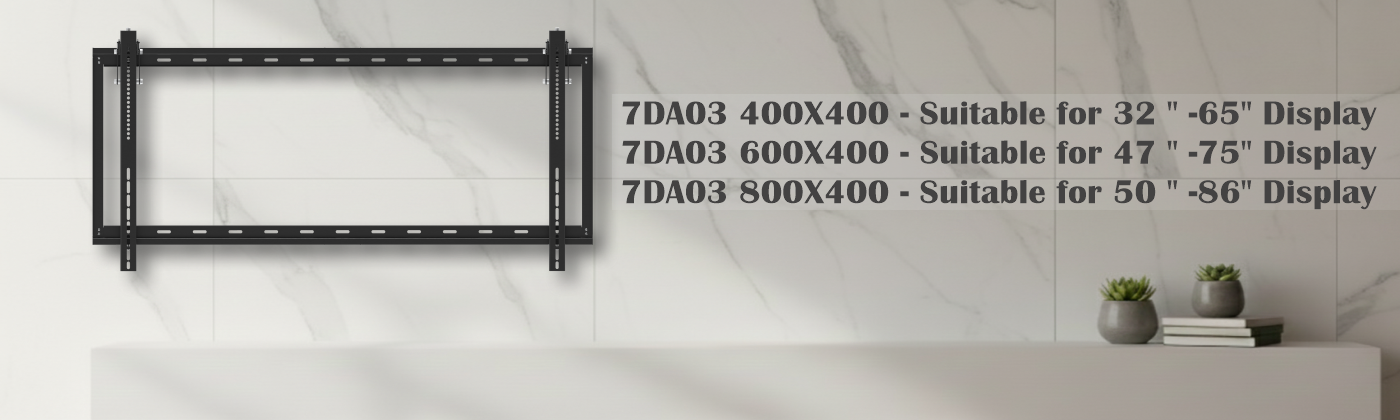

Main Image
