Product Description

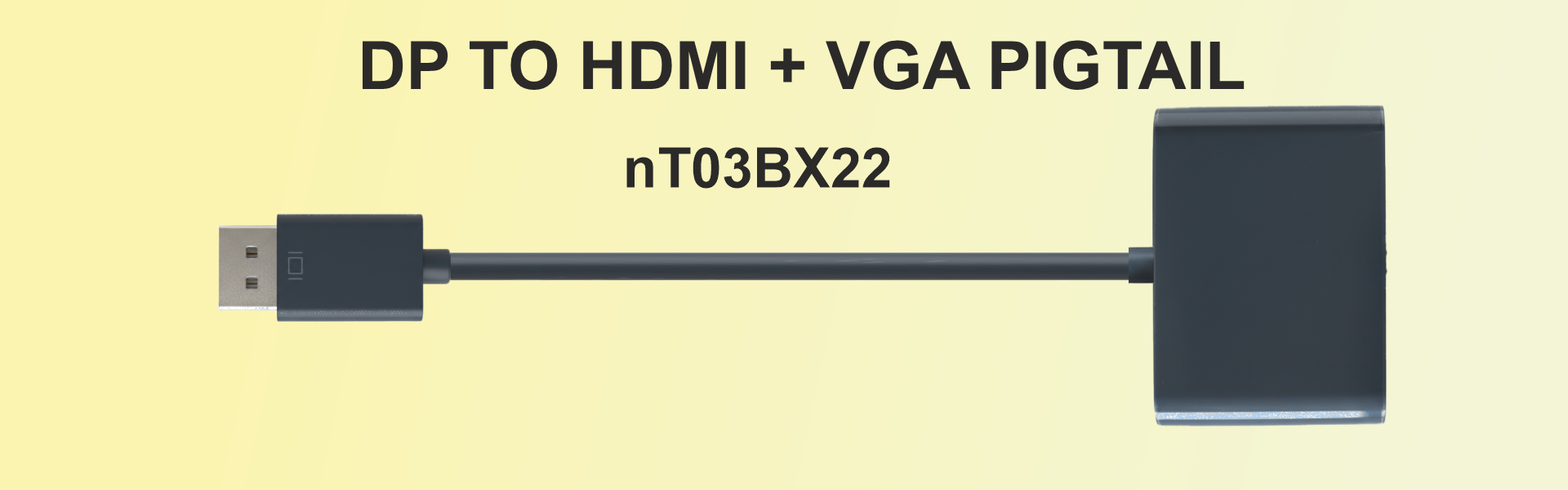

nT03BX22A DISPLAYPORT M TO HDMI +VGA F PIGTAIL

DISPLAYPORT M TO HDMI +VGA F PIGTAIL HELPS TO CONNECT DEVICES LIKE COMPUTER , AND LAPTOPS WITH DISPLAYPORT OUTPUTS TO DISPLAY AND PROJECTORS WITH HDMI OR VGA INPUT . DISPLAYPORT IS SOURCE AND HDMI AND VGA IS FOR DISPLAY . HDMI SUPPORTS RESOLUTION OF 4K30 HZ AND VGA SUPPORTS 1920 X 1200 @60HZ – IT SUPPORTS ONE DISPLAY OUT AT A TIME – HDMI OR VGA .GOLD PLATED PINS AND GOLD FLASH SHELL – THE CABLE IS MADE UP OF TIN COATED COPPER OF 28 AWG – IT IS DOUBLE SHIELDED TO PROVIDE THE BEST DISTURBANCE LESS SIGNALS . It is provided with anti theft tie hole – so that it can be tied to the display cable – avoiding misplacement and theft . AVAILABLE LENGTH 200 MM COLOUR – RAL 5008 – BLUE BLACK . nT03BX22B – IS A DISPLAYPORT M TO HDMI +VGA F PIGTAIL VARIANT – WHICH SUPPORTS 4K60HZ RESOLUTION FOR HDMI AND 1920 X1200 60 HZ RESOLUTION FOR VGA . IT SUPPORTS SIMULTANEOUS OUTPUT FOR BOTH HDMI AND VGA . APPLICATION – WORKSTATIONS , GAMING , DESIGNING , CONTROL ROOM …



Specification

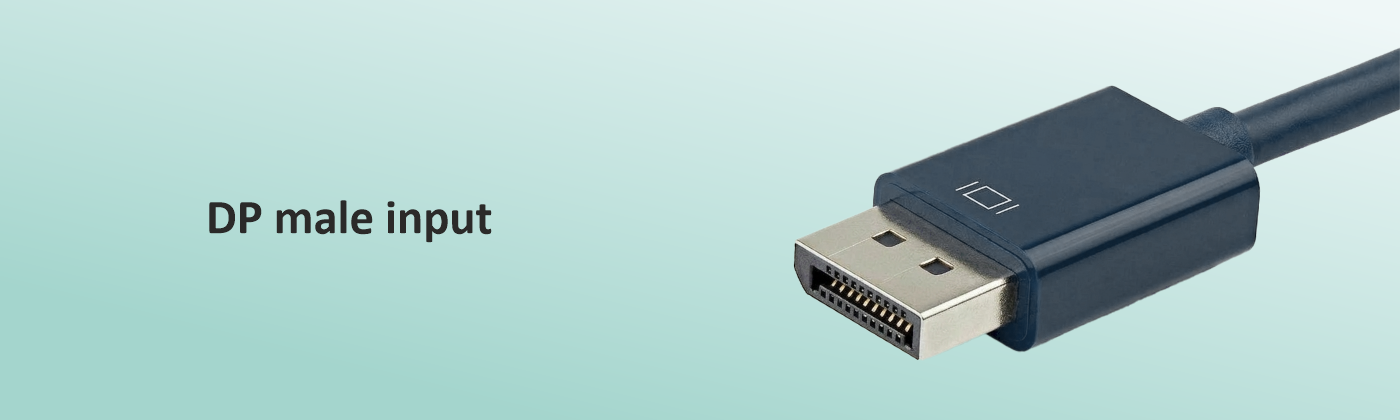

CONNECTOR A DISPLAYPORT MALE
CONNECTOR B HDMI VGA F PIGTAIL
CONDUCTOR TIN COATED COPPER
CABLE GAUGE 28 AWG
PIN COATING GOLD PLATING
SHELL COATING GOLD FLASH

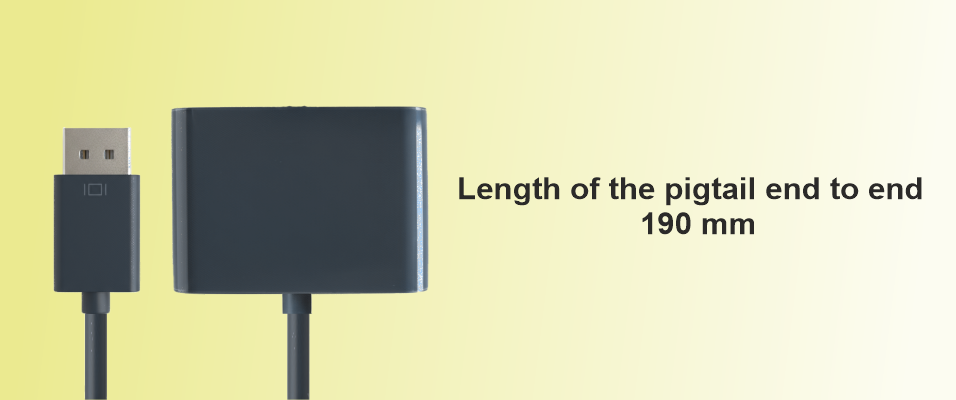

LENGTH 200 MM
COLOUR RAL 5008 – BLUE BLACK
RESOLUTION 1920 X 1200 @60Hz
