Product Description

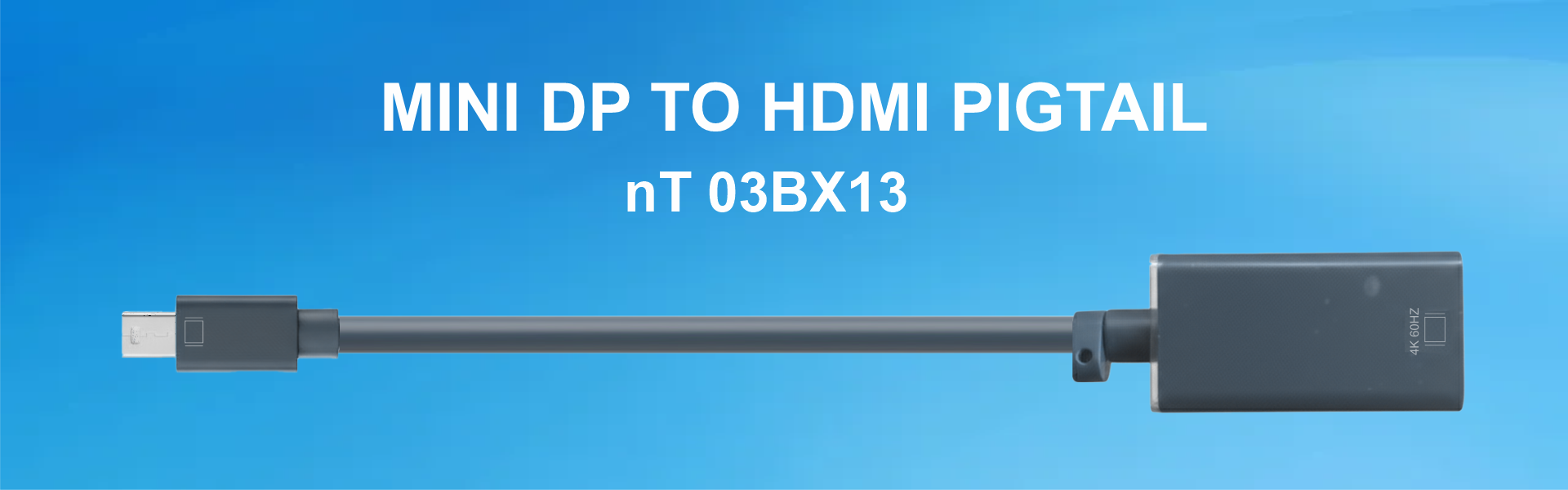

nT03BX13 MINI DISPLAYPORT M TO HDMI F PIGTAIL

nT03BX13 Minidisplayport m to hdmi f pigtail helps to connect devices like computer , and laptops with minidisplayport outputs to display and projectors with hdmi input . Minidisplay port is source and hdmi is for display . It supports resolution of 4k60 h – it is a active conversion pigtail and it supports 6 extednded displays by connecting 6 pigtails to the graphic card .gold plated pins and gold flash shell – the cable is made up of tin coated copper of 28 awg – it is double shielded to provide the best disturbance less signals .it is provided with anti theft tie hole – so that it can be tied to the display cable – avoiding misplacement and theft . Available length 200 mm colour – ral 5008 – blue black . . Application – workstations , gaming , designing , control room …



Specification

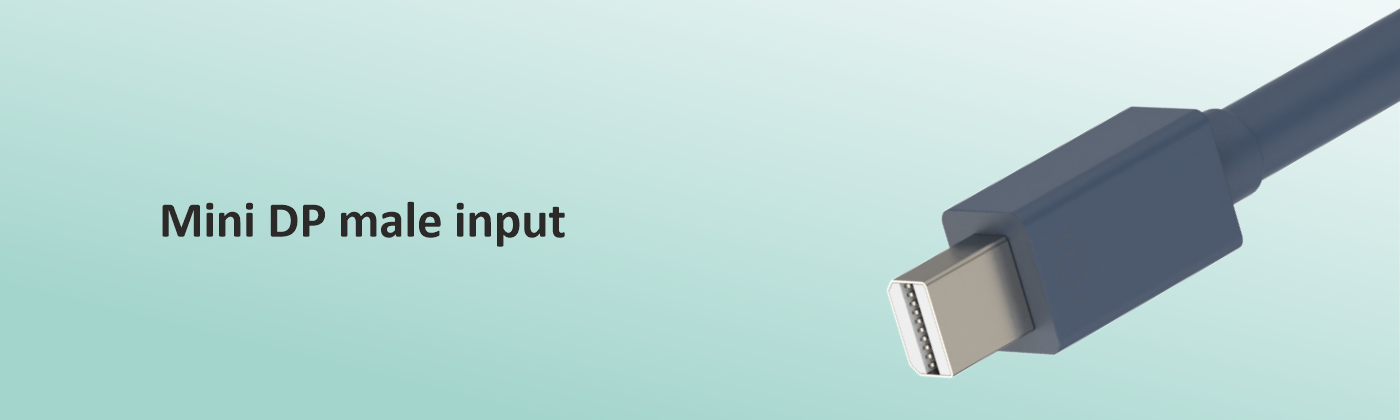

CONNECTOR A MINI DISPLAYPORT MALE

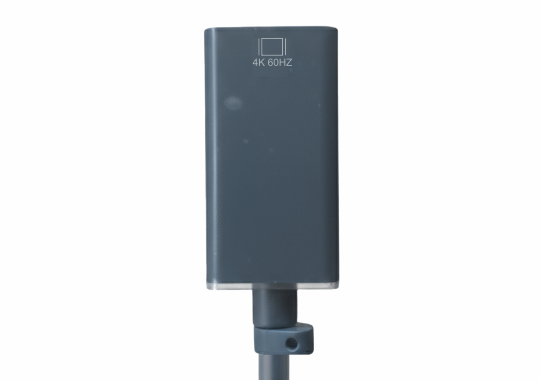

CONNECTOR B HDMI F
CONDUCTOR TIN COATED COPPER
CABLE GAUGE 28 AWG
PIN COATING GOLD PLATING
SHELL COATING GOLD FLASH

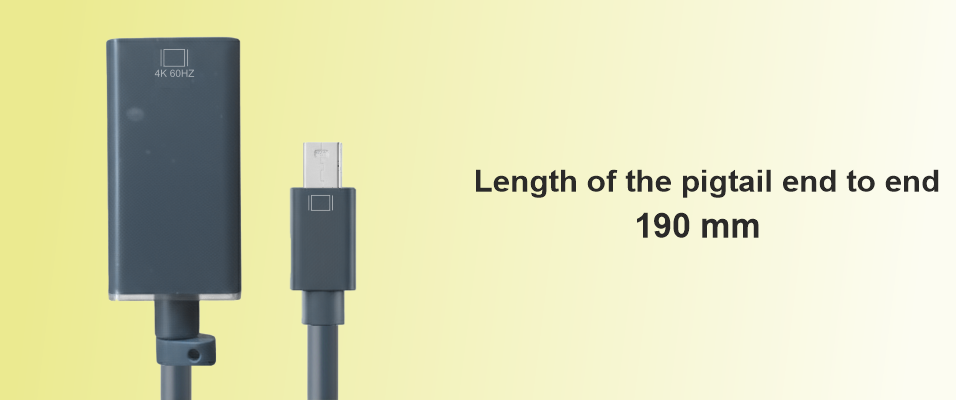

LENGTH 200 MM
COLOUR RAL 5008 – BLUE BLACK
RESOLUTION 4K60Hz
