3AX22 HDMI F/F XLR MOUNT

Product Description

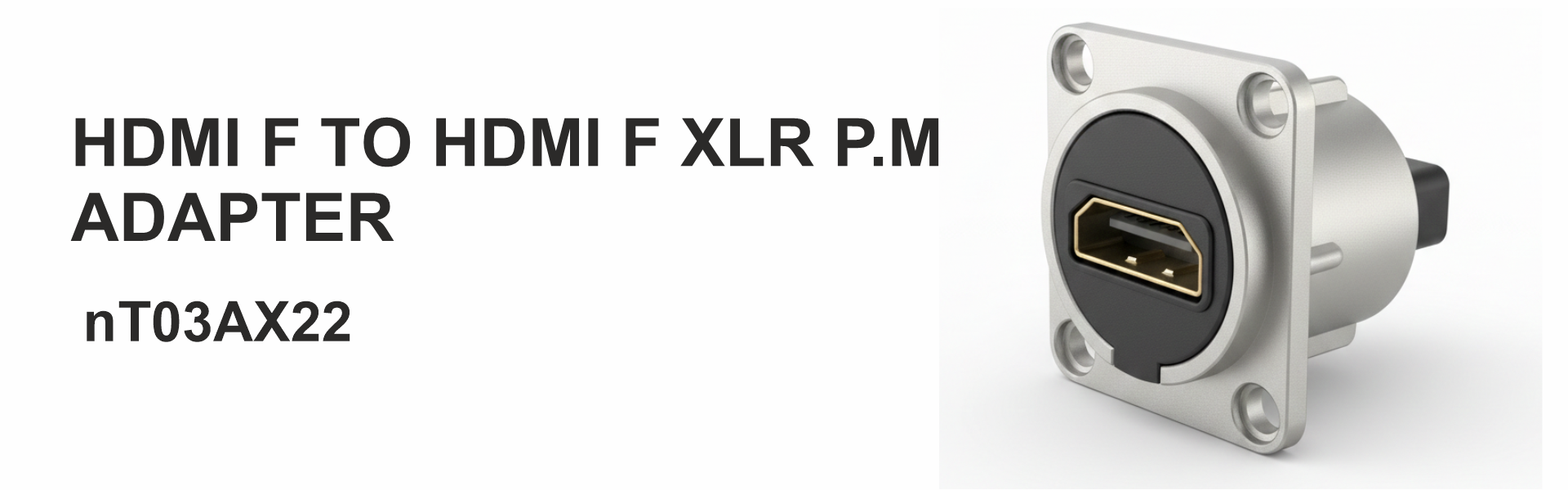

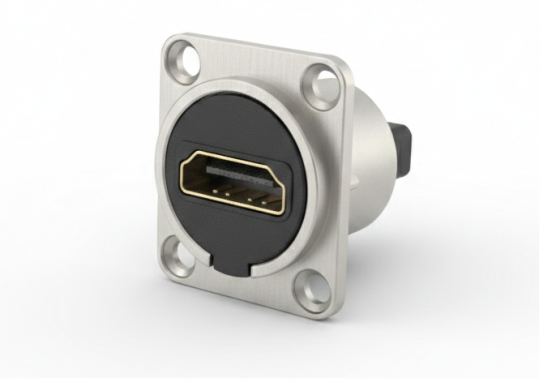

nT03AX22 HDMI F To HDMI F XLR P.M Adapter .

HDMI F to HDMI F XLR Panel Mount adapter is a female to female HDMI Jointer . One end of female is XLR panel mountable using screws . The Panel mount construction is rugged and for longer life . The adapter supports resolution of 4K 60 Hz . The adapter enables joining of cables , it also enables to bring the HDMI connectivity to plate , Interface box , table , wall etc with standard XLR cutout . The adapter pins are phosphor bronze and are gold plated . The adapter is dual moulded for longer life and rugged applications . Supports HDCP , EDID , eARC , ARC , 3D , ETHERNET , CEC … Used for AV Integrations , pro audio like Audiotrium , meeting room , class rooms , hospitals , studio ……

Specification

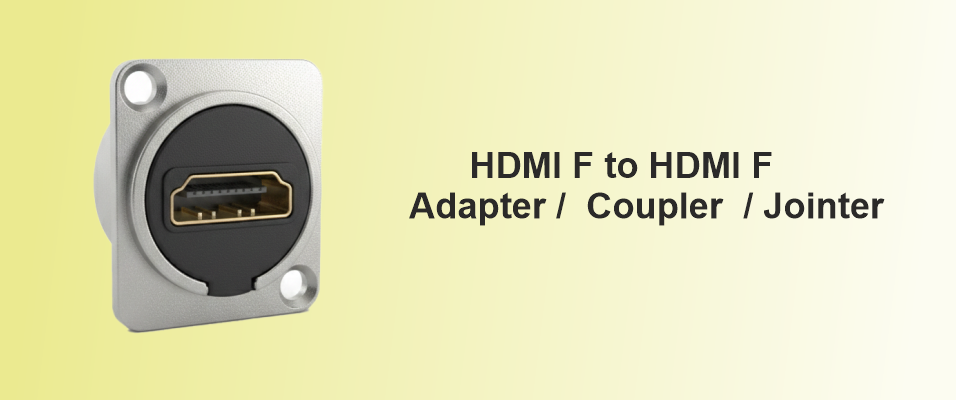

HDMI F to HDMI F -Adapter / Coupler / Jointer ,

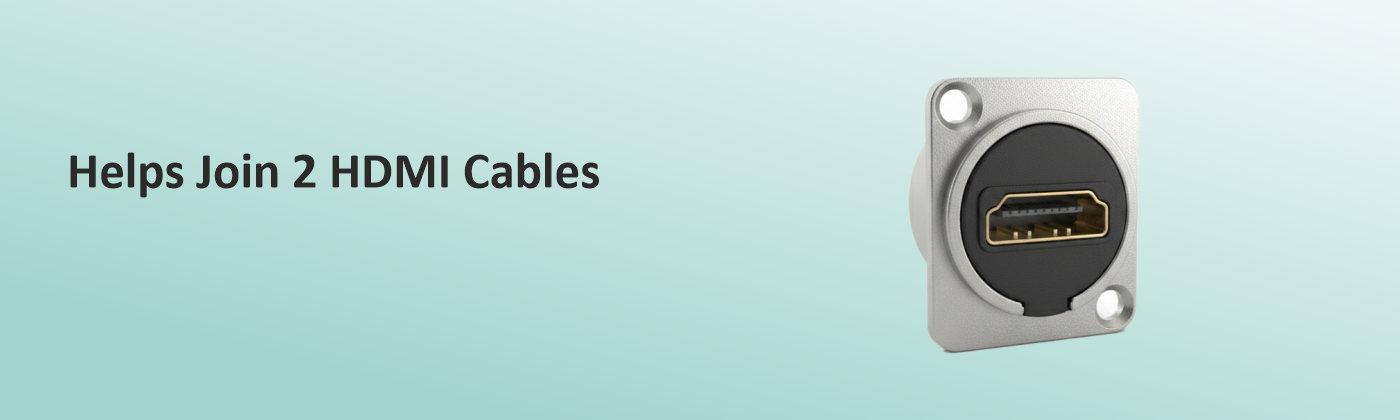

Enables Panel Mounting of HDMI , Helps Join 2 HDMI Cables ,

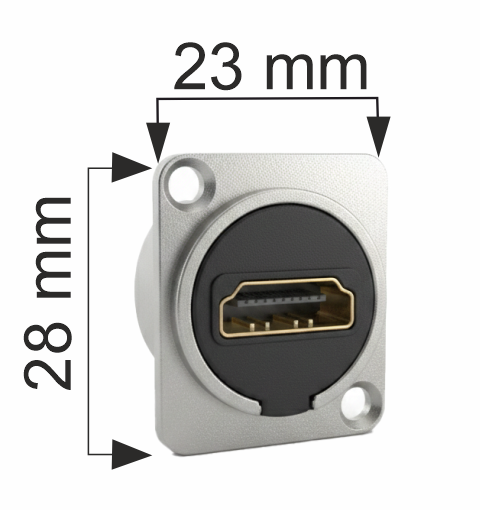

Mounts on any standard XLR cut out , Resolution Supported 4K 60 Hz ,
Rugged Design and construction for longer life ,
Compact and small size for smaller space ,
Bi-directional ,
Includes mounting screws ,
Phosphor bronze pins plated with gold .
Dual moulding .

Connector A HDMI Female
 Connector B HDMI Female with XLR panel mounting
Housing Zinc Casting / Dual Moulding
Connector Pins Phosphor Bronze
Plating Of Pins  Gold Plating
Resolution Supported 4K 60 Hz
 Panel Mounting Screws Star M3 -15 mm
Colour Black
Supports HDCP / EDID /ARC /eARC/3D/Ethernet .
