3AX11 HDMI M TO VGA F PIGTAIL

Video Link

Product Description

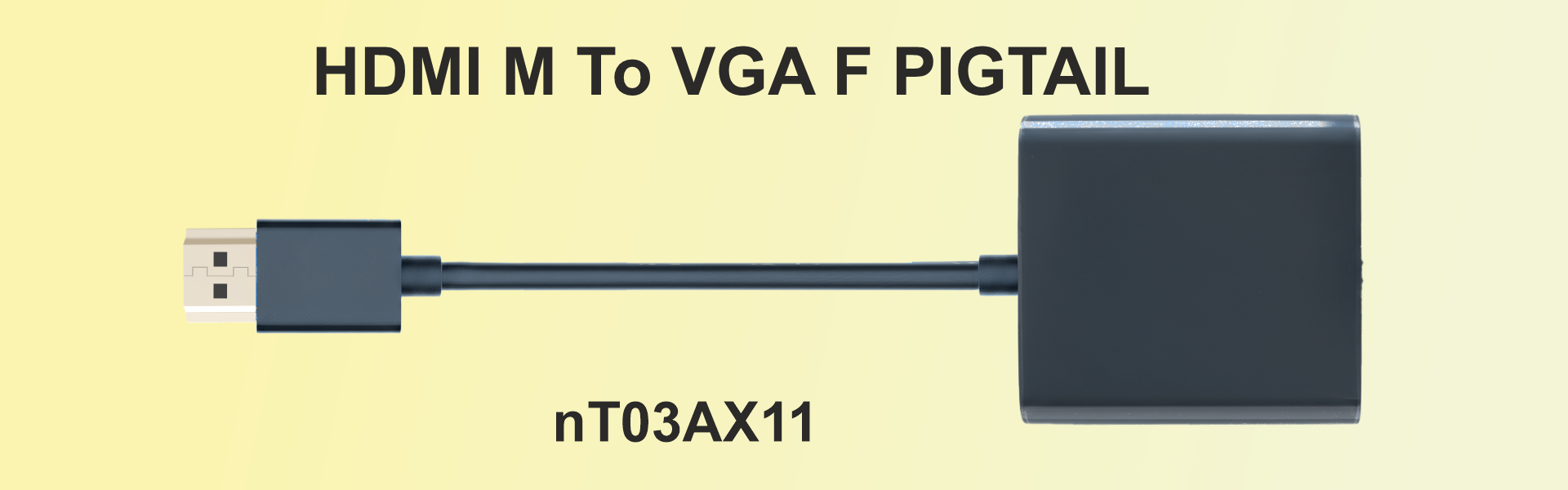

nT03AX11 HDMI TO VGA Pigtail

nT03AX11 HDMI to VGA Pigtail converts digital HDMI signal into analog VGA video. It helps to connect traditional vga display or projectors to the latest Hdmi interface of the sources like laptop , computers etc . It also extracts auido output from the hdmi to stereo 3.5 mm . If the HDMI Sources can’t supply enough power, you can connect your power adapter or computer to the Micro USB female for power .Supports HDCP 1.2.Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input. Supports Analogue Video output up to UXGA and 1080p with 10-bit DAC .It is provided with anti theft tie hole – so that it can be tied to the display cable – avoiding misplacement and theft . Application presentation , desktops , laptop , display , projector interface conversion .

Specification

Hdmi male input,

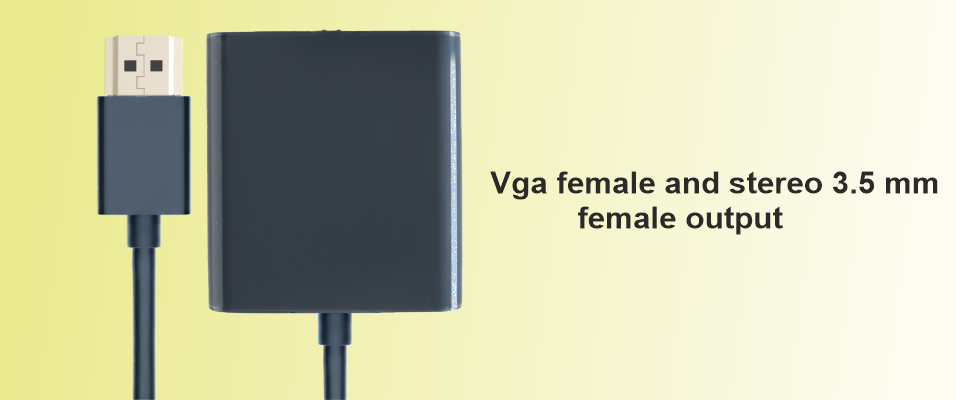

Vga female and stereo 3.5 mm female output,

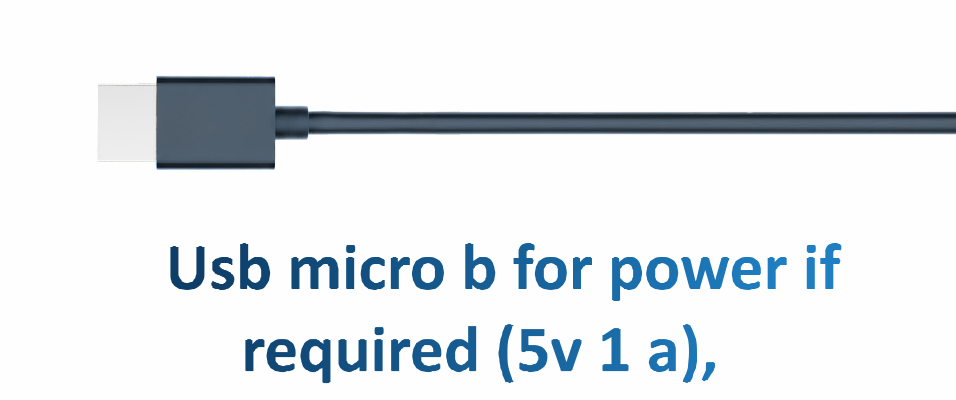

Usb micro b for power if required (5v 1 a),

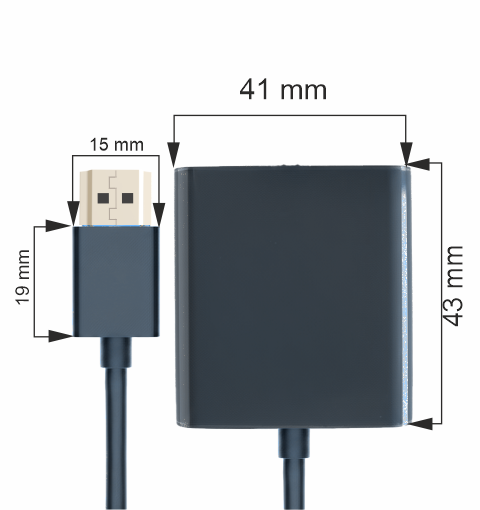

Length of the pigtail end to end -190 mm,
Supports analog resolutions from uxga to 1080 p,
Hdcp compliant,

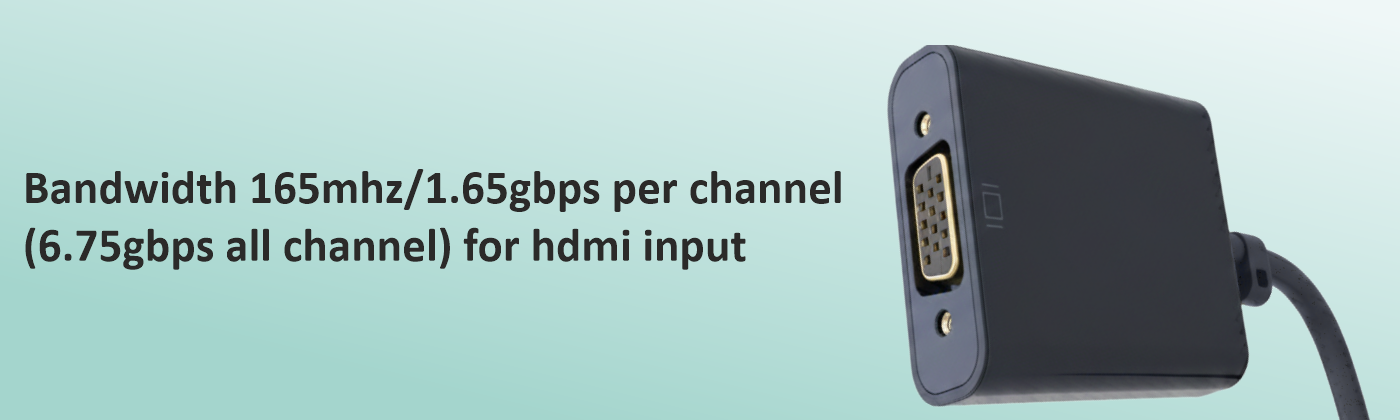

Bandwidth 165mhz/1.65gbps per channel (6.75gbps all channel) for hdmi input,
Vga output can support cables up to 15 mtrs,
Anti theft tie hole of 3 mm od provided,
Colour ral 5008 – blue black colour.

INPUT CONNECTOR HDMI MALE
OUTPUT VIDEO  CONNECTOR VGA FEMALE
OUTPUT AUDIO STEREO,FEMALE
POWER USB MICRO
LENGTH END TO END 190MM
RESOLUTION UP TO UXGA TO 1080P
BANDWIDTH 165MHz/1.65Gbps per channel (6.75Gbps all channel)
TIE HOLE OD 3 MM
VGA OUTPUT CAN SUPPORT LENGTHS UP TO 15 MTRS
COLOUR RAL 500B (BLUE-BLACK)
