3AX06 HDMI MINI/F PIGTAIL

Video Link

Product Description

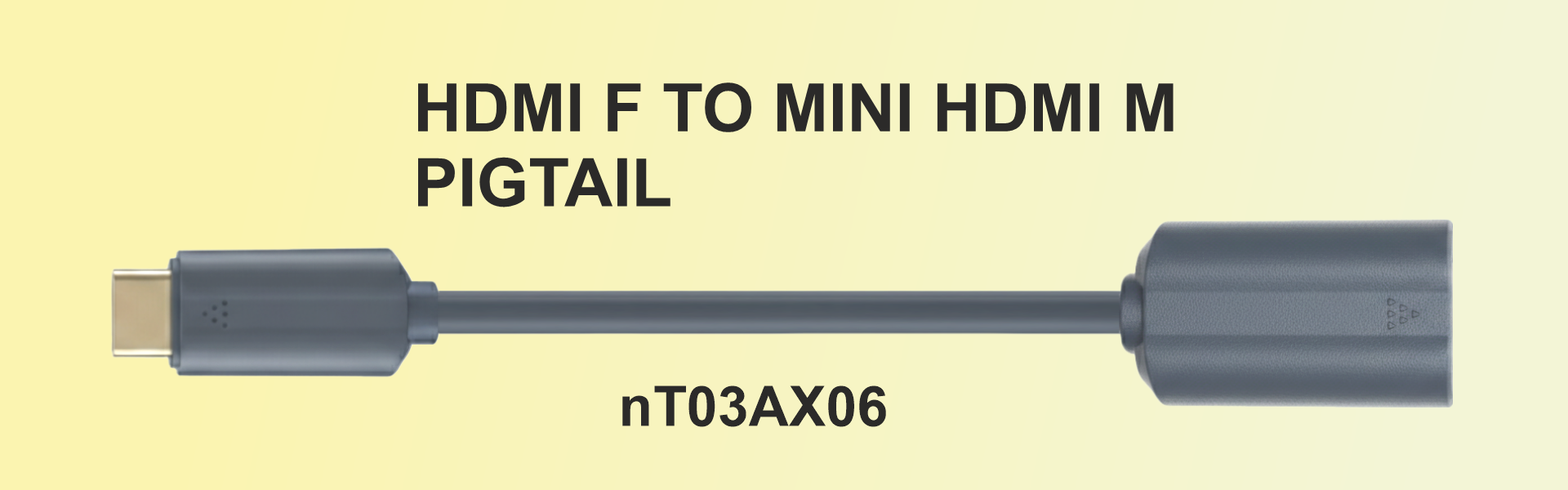

nT03AX06 HDMI F To Mini HDMI M Pigtail

HDMI F To Mini HDMI M Pigtail 250 MM is designed for high-performance connectivity. HDMI female on side A and , Mini HDMI male ( Type C HDMI Port ) on side B , Enables to connect normal HDMI cable to Devices with Mini HDMI Port . Outer housing material- PVC Moulded , Dual Moulding – inner and Outer for better strength , Total length 250 mm including cable , cable is made up of 30 awg twisted differential pairs . Pin material – phosphor bronze , Plating : Gold plated , Resolutions Supported 4K 60 Hz . Supports HDCP , EDID , eARC , ARC , 3D , ETHERNET , CEC … Used for AV Integrations , pro audio like Auditorium , meeting room , class rooms , hospitals , studio ……

Specification

HDMI mini M to HDMI F -Pigtail .
Enables connecting of normal HDMI Cable to Mini HDMI devices .
Protects the port of the Devices .
Resolution Supported 4K 60 Hz .
Rugged Design and construction for longer life .

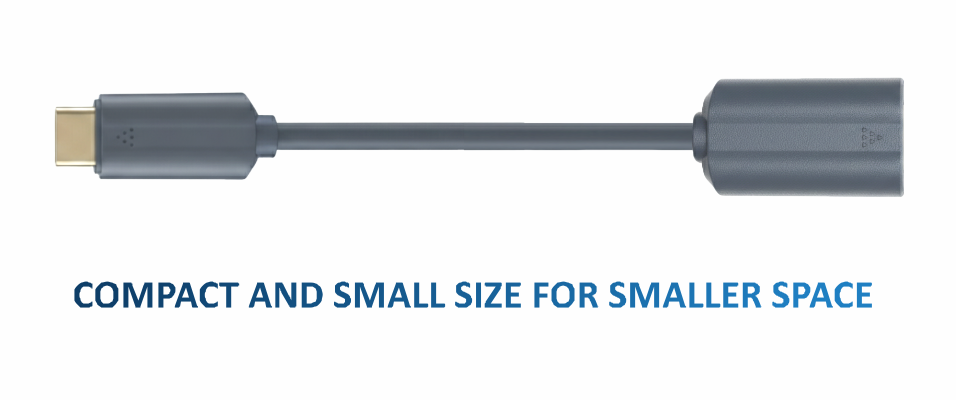

Compact and small size for smaller space .

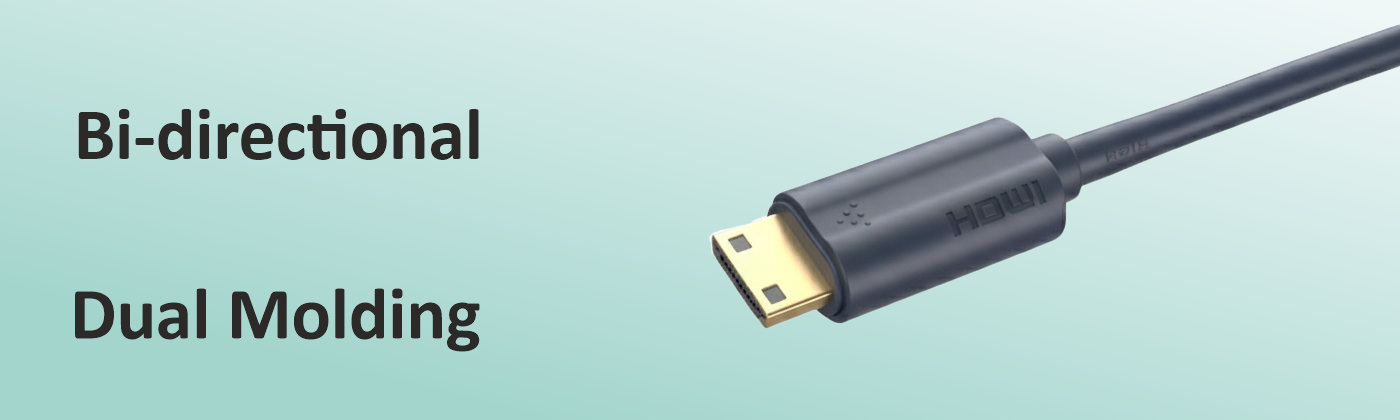

Bi-directional .
Includes mounting screw .
Phosphor bronze pins plated with gold .
Dual moulding .

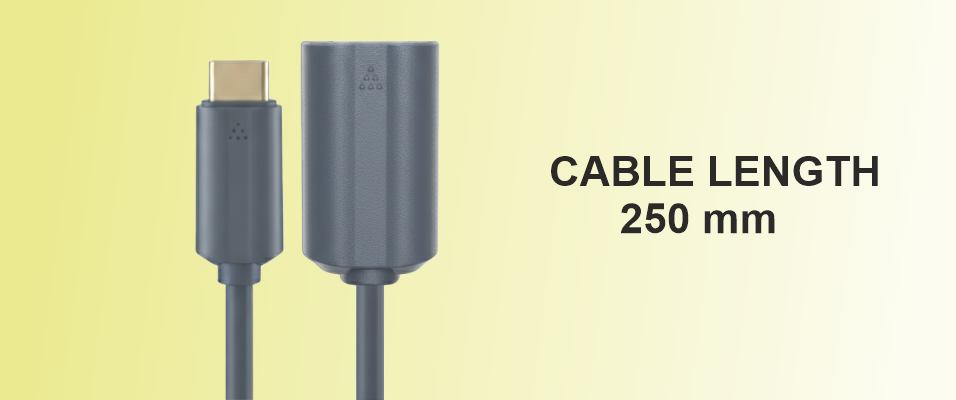

Cable Length 250 mm .
Supports HDCP , EDID , ARC , eARC , 3D , Ethernet .
Colour : Ral 5008 / Blue-Black .

Connector A HDMI Mini male
Connector B HDMI Female
 Housing  Dual Moulding PVC
Connector Pins Phosphor Bronze
Plating Of Pins  Gold Plating
Resolution Supported  4K 60 Hz
Length 190 mm
Cable Gauge Differential Pair – 30 awg
 Supports HDCP / EDID /ARC /eARC/3D/Ethernet
