Product Description
nT03AX05 HDMI M To HDMI F P.M Pigtail

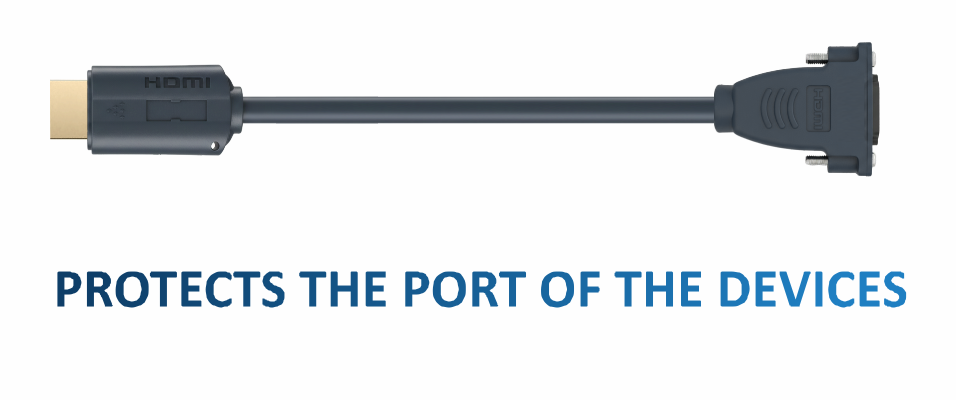

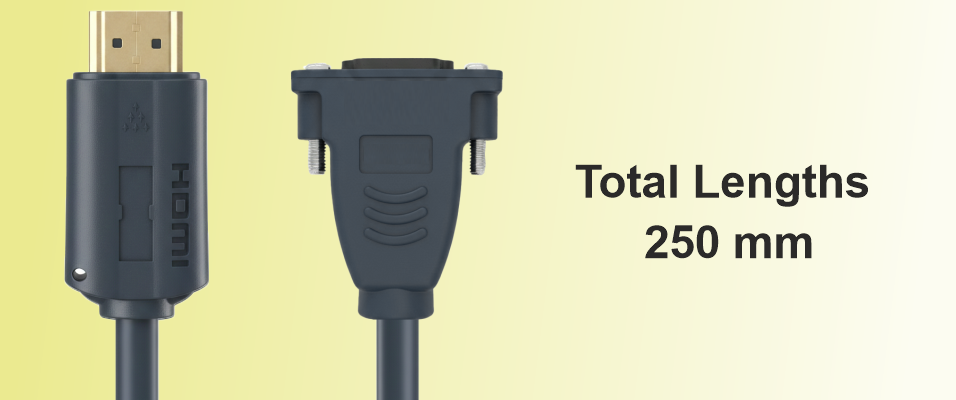

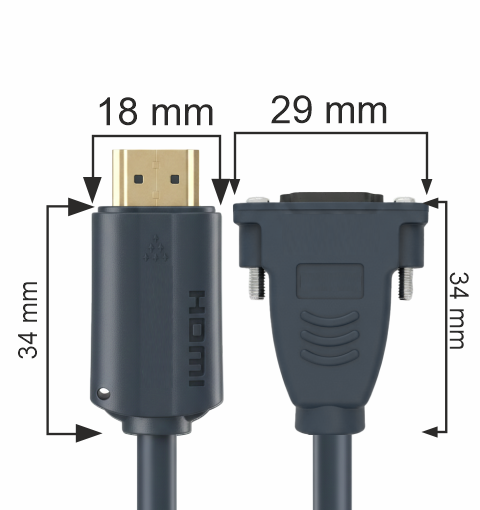

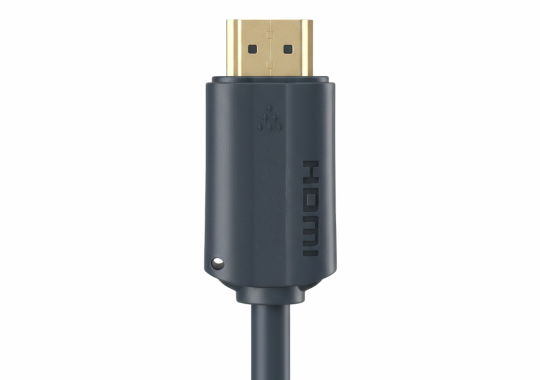

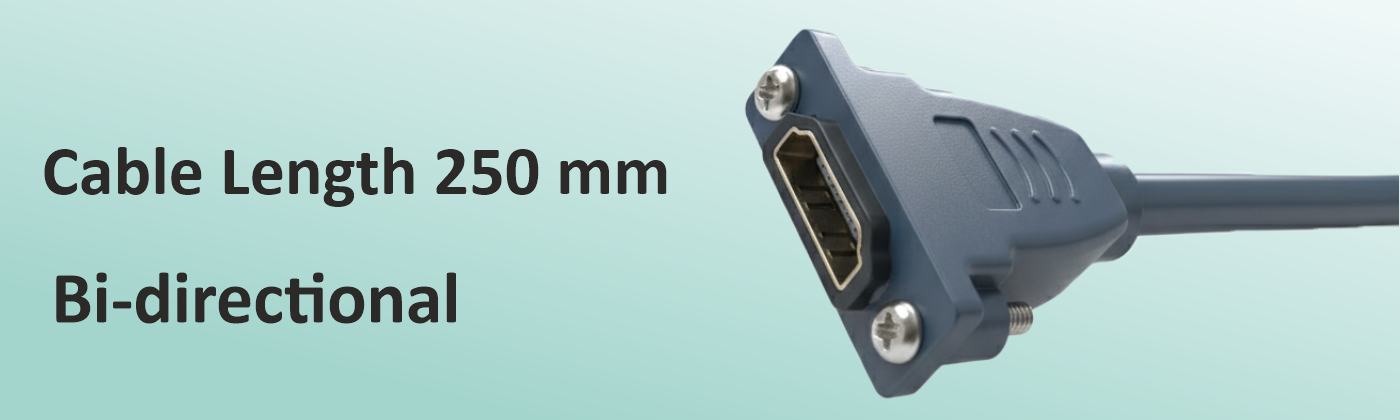

HDMI M To HDMI F P.M Pigtail 250 MM is designed for high-performance connectivity. HDMI male on side A and , HDMI Female Panel Mount on side B , Used for extending the hdmi port of device on the plate or panel – helps in protecting the HDMI port , Outer Housing Material – PVC Moulded , Dual Moulding – inner and Outer for better strength , Total length 250 mm including cable , cable is made up of 30 awg twisted differential pairs . Pigtail enables flexibility and ease to connect HDMI Cables in tight spaces , it also enables to bring the HDMI connectivity to plate , Interface box , table , wall etc . Pin material – phosphor bronze , Plating : Gold plated , Resolutions Supported 4K 60 Hz . Star M3 X 15 mm mounting screws . Ensures reliability and durability for various applications . Supports HDCP , EDID , eARC , ARC , 3D , ETHERNET , CEC … Used for AV Integrations , pro audio like Auditorium , meeting room , class rooms , hospitals , studio ……
