Product Description

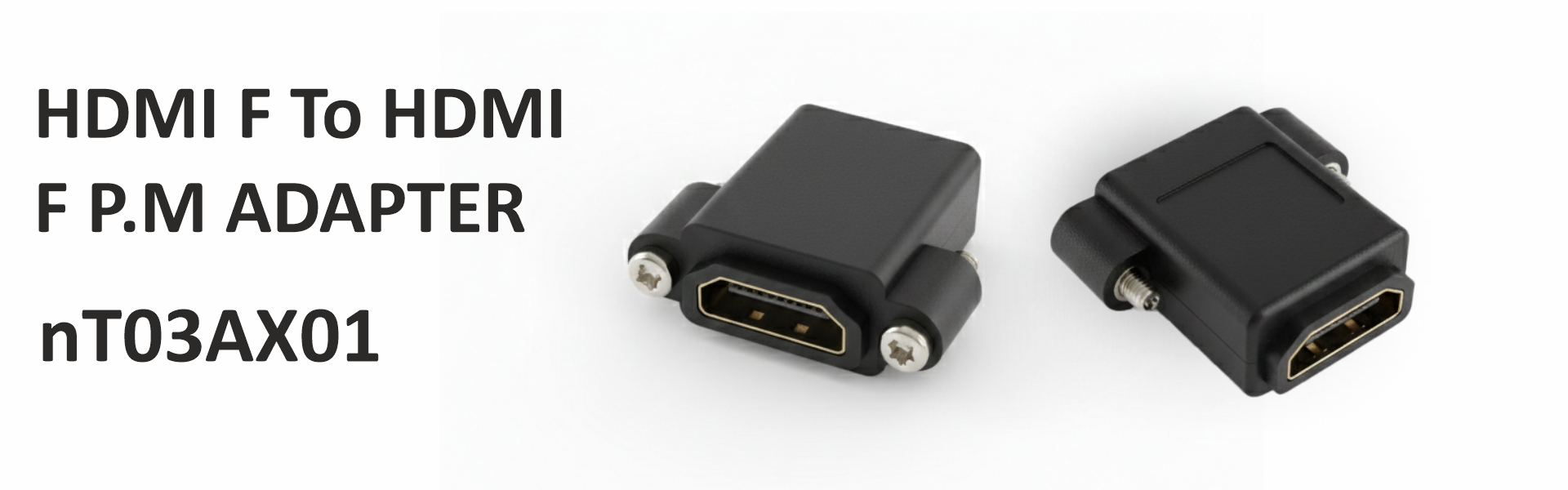

nT03AX01 HDMI F To HDMI F P.M Adapter . HDMI F to HDMI F P.M adapter . HDMI F to HDMI F Panel Mount adapter is a female to female HDMI Jointer . One end of female is panel mountable using screws . The Panel mount construction is rugged and for longer life . The adapter supports reolution of 4K 60 Hz . The adapter enables joining of cables , it also enables to bring the HDMI connectivity to plate , Interface box , table , wall etc . The adapter pins are phosphor bronze and are gold plated . The adapter is dual moulded for longer life and rugged applications . Supports HDCP , EDID , eARC , ARC , 3D , ETHERNET , CEC … Used for AV Integrations , pro audio like Audiotrium , meeting room , class rooms , hospitals , studio ……



Specification

HDMI F to HDMI F -Adapter / Coupler / Jointer , Enables Panel Mounting of HDMI ,

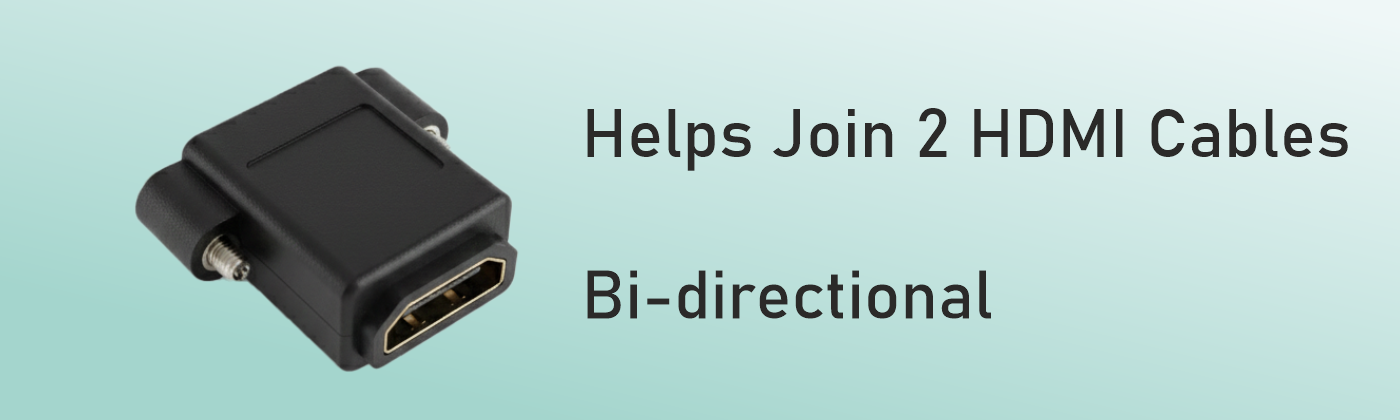

Helps Join 2 HDMI Cables ,
Resolution Supported 4K 60 Hz ,
Rugged Design and constrution for longer life ,
Compact and small size for smaller space , Bi-directional ,
Includes mounting screw ,

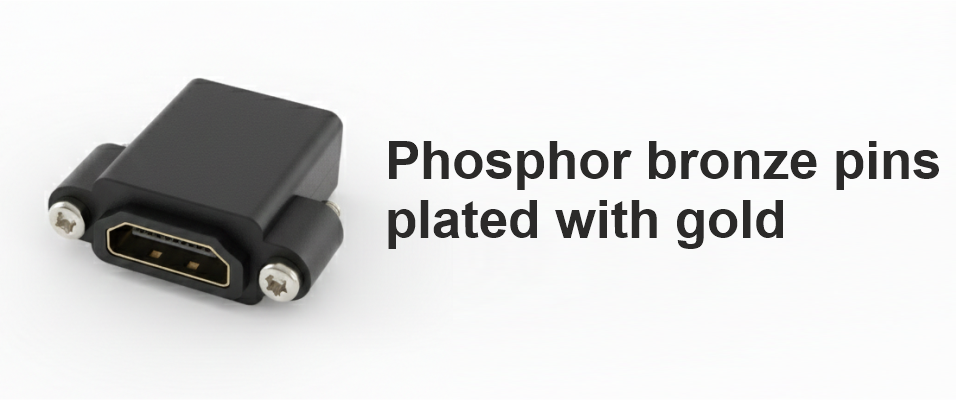

Phosphor bronze pins plated with gold .
Dual moulding .

Connector A HDMI Female
Connector B HDMI Female with Panel mounting
Housing Dual Moulding PVC
 Connector Pins Phosphor Bronze
Resolution Supported 4K 60 Hz
Panel Mounting Screws Star M3 -15 mm
Colour Black
 Supports HDCP / EDID /ARC /eARC/3D/Ethernet .
