2GX12 CAT 6A SHIELDED CABLE

Product Description

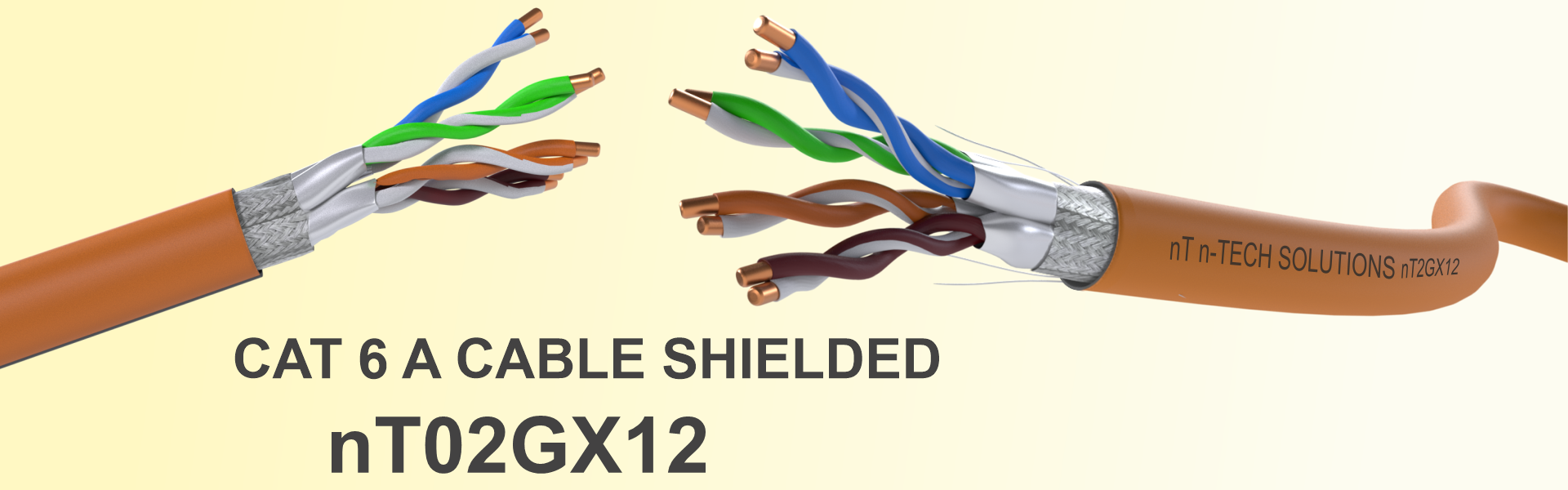

nT2GX12 CAT 6A Shielded Cable

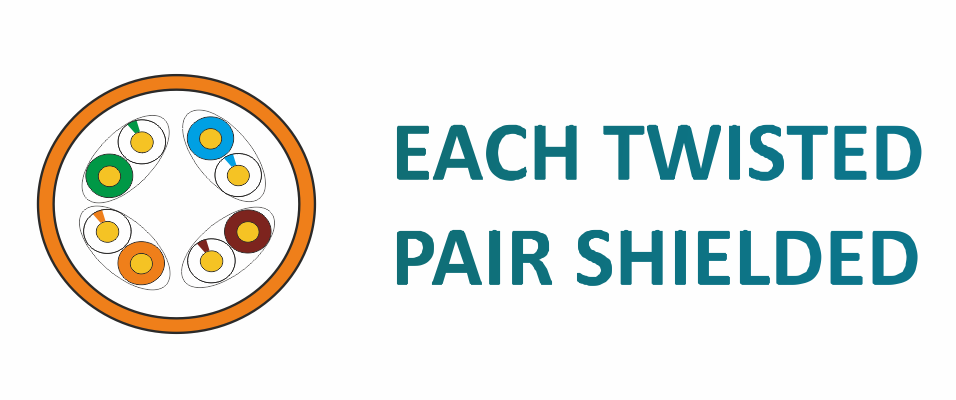

nT2GX12 CAT 6A Cable is shielded twisted pair network cable . Cat 6A shielded cable is the important part of the high speed structured cabling systems, . CAT6 A Shielded twisted pair Cable supports 10 Gbps standard. Each pair is aluminium foiled and overall outer aluminium foil and drain wire. This cable exceeds the requirements of TIA/EIA-568.C.2 Category 6 ISO/IEC Class E . It is a 4 pair 23 awg solid conductor cable . Each pair is coloured differently for identification . Available in 500 mtrs reel packing . Available in orange colour .

Specification

4-pair foiled twisted pair (FFTP) cable.
23 AWG solid copper conductor.
Supports 10 Gbps speed.
Colour coded Skin foamed PE Insulation.
Outer Jacket Pvc – 7.6 mm.
500 Mtrs reel packing.
Available Colours Orange.

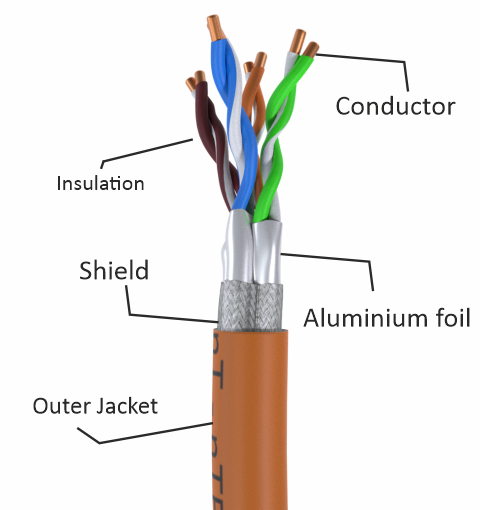

Conductor Solid Bare Electrolytic Grade Copper
Conductor Size 23 AWG
Shield Each Pair foiled and overall foil and shield wire
Insulation Skin foamed PE
Insulation Size 1.38 ± 0.05 mm
Twisted pair identification  Colour coded 4 twisted pairs

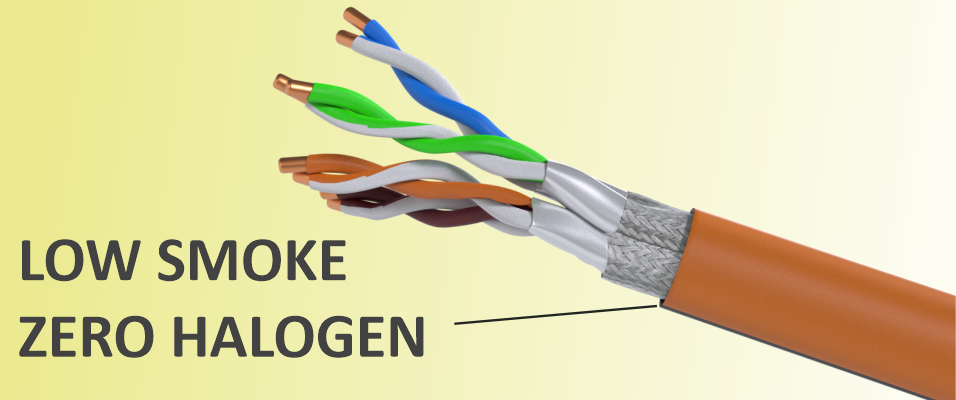

Jacket LSZH
Sheathing Color Orange
Cable Diameter (Approx) 7.6 mm
Speed 10 Gbps
Packing 500 m reel

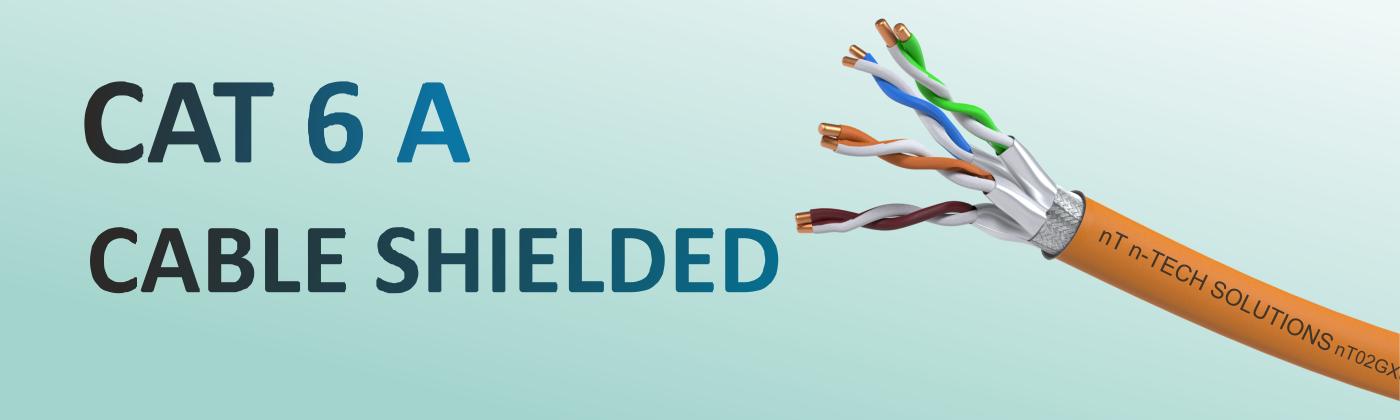

Main Image
Small Image 1
Small Image 2
Small Image 3
Small Image 4
“
