2GX05 CAT 6 OUTDORR ULTRA FLEX CABLE

Product Description

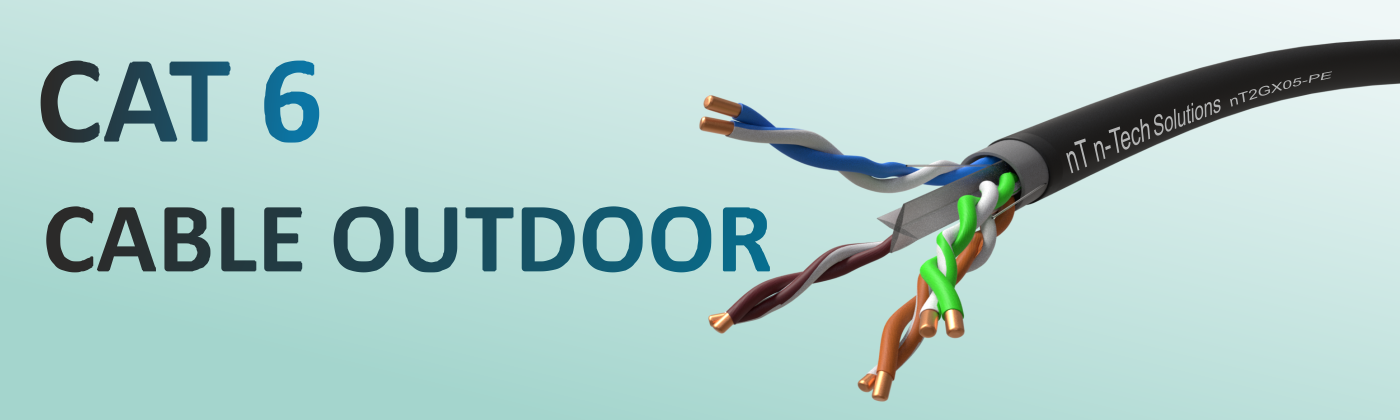

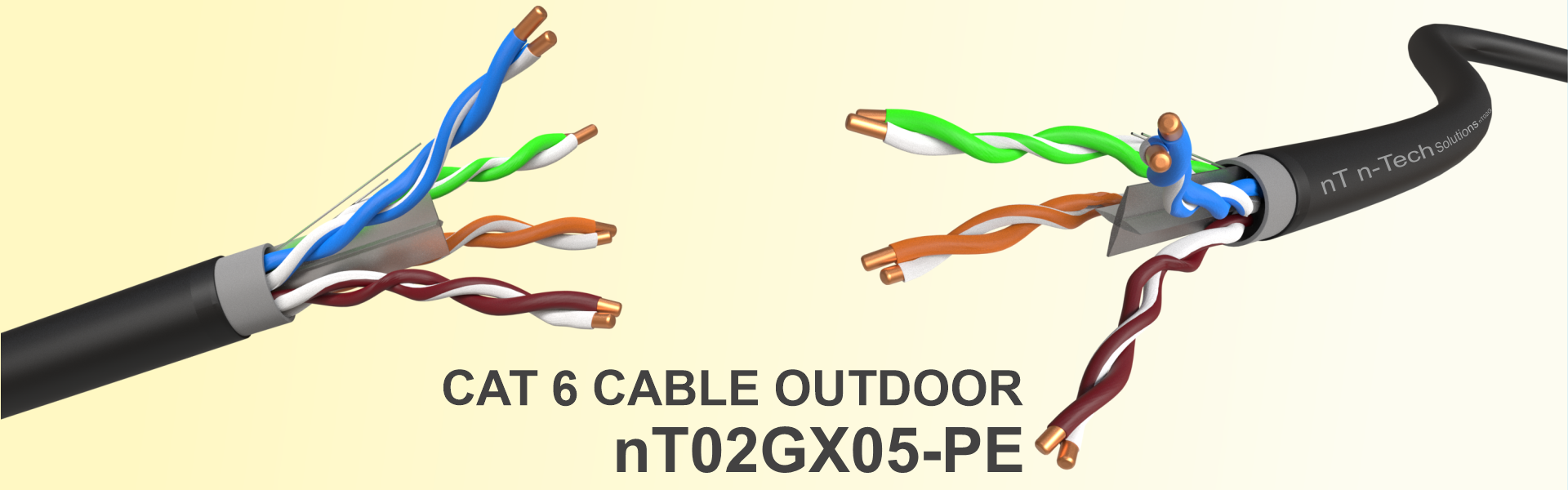

nT2GX05-PE CAT 6 Cable Outdoor .

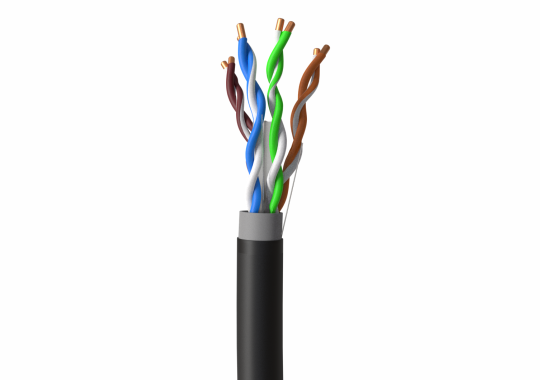

nT2GX05-PE CAT 6 Cable Outdoor is unshielded twisted pair network cable – suitable for outdoor installation . Cat 6 cable is the important part of the structured cabling systems, . CAT6 UTP Cable supports Gigabit Ethernet (1000 Base-T) standard. Operates at a bandwidth up to 250 Mhz. This cable exceeds the requirements of TIA/EIA-568.C.2 Category 6 ISO/IEC Class E . It is a 4 pair 23 awg solid conductor cable . Each pair is coloured differently for identification . The cable is double insulated with inner jacket pvc and outer jacket PE . Available in 305 mtrs reel . Available in Black colour .

Specification

4-pair unshielded twisted pair (UTP) cable.
23 AWG solid copper conductor.

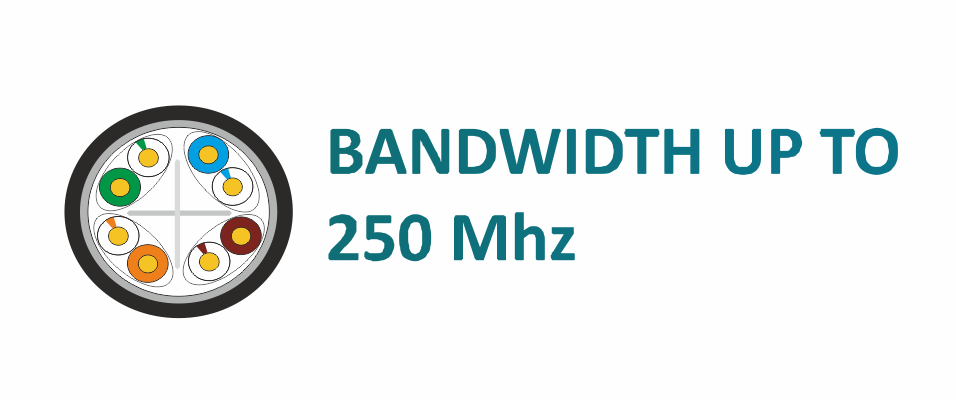

Supports Gigabit 1000 Base T and bandwidth up to 250 Mhz.
Colour coded PE Insulation.
Outer Jacket Pvc + PE – 6.8 mm.
Operating Temperature -10 to 90 degree.
305 Mtrs Reel.
Available Colours Black .

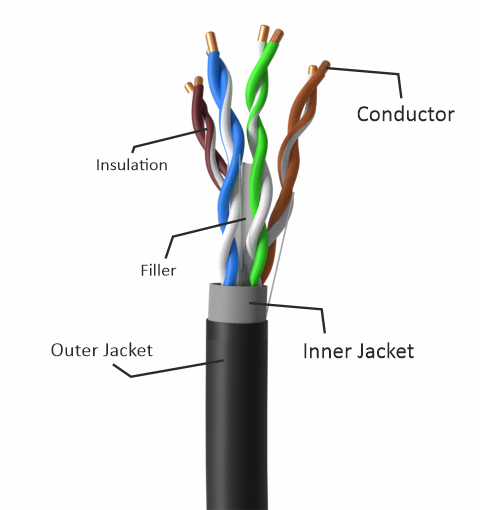

Conductor Solid Bare Electrolytic Grade Copper
Conductor Size 23 AWG
Insulation Polyolefin
Insulation Size  0.980 ± 0.05 mm
Twisted Pair Identification Colour coded 4 twosted pairs

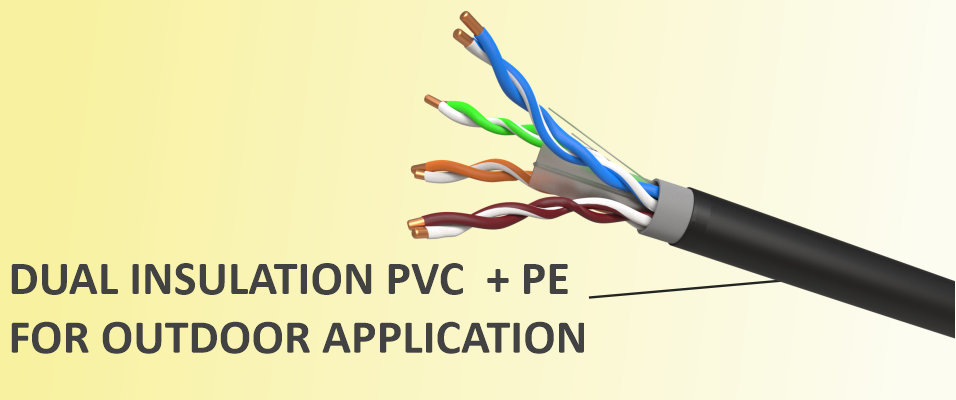

Jacket PVC + PE
Rated Temperature -10 to 90 degrees
Sheathing Color Black
Cable Diameter (Approx 6.8 mm
Speed 1000 Base-T – 250 Mhz
Packing 305 Mtrs Reel
