2GX03 CAT 6 CABLE

Product Description

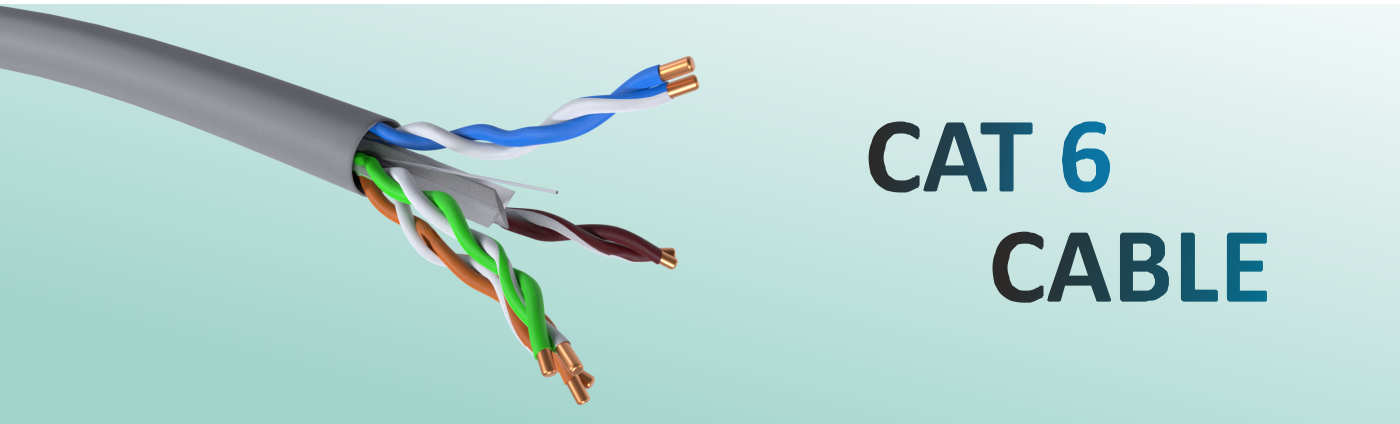

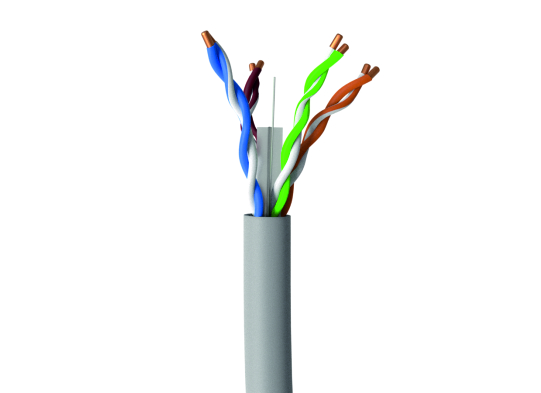

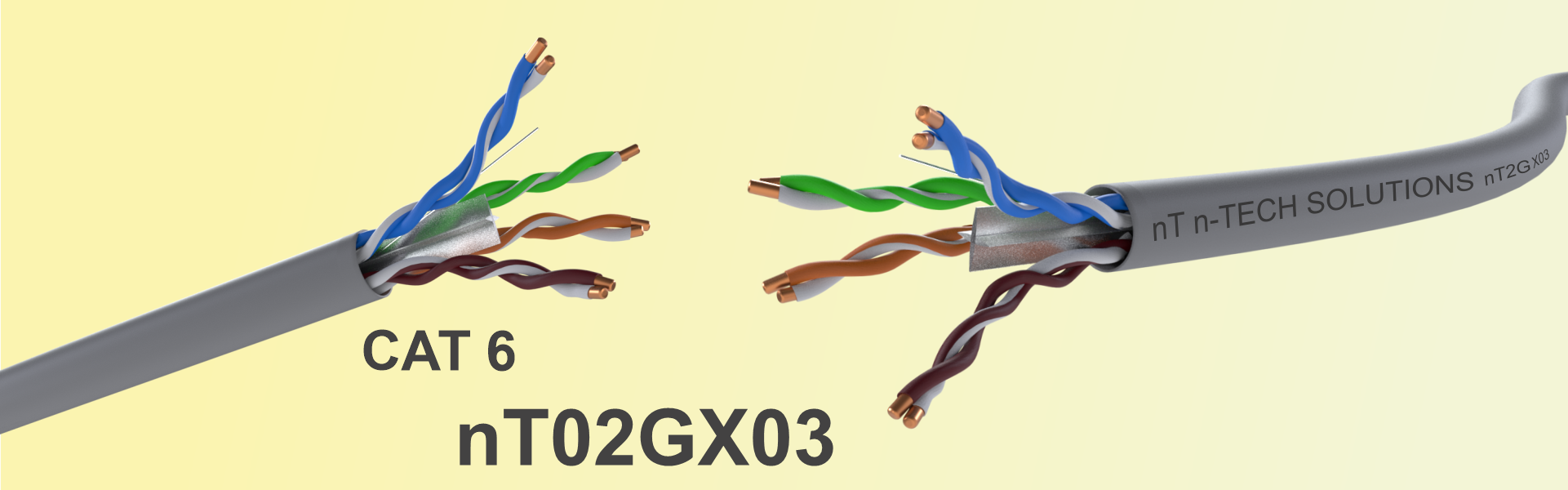

nT2GX03 CAT 6 Cable is unshielded twisted pair network cable . Cat 6 cable is the important part of the structured cabling systems, . CAT6 UTP Cable supports Gigabit Ethernet (1000 Base-T) standard. Operates at a bandwidth up to 250 Mhz. This cable exceeds the requirements of TIA/EIA-568.C.2 Category 6 ISO/IEC Class E . It is a 4 pair 23 awg solid conductor cable . Each pair is coloured differently for identification . Available in 305 mtrs easy pull box . Available in Grey ,Yellow and Blue colours .

Specification

4-pair unshielded twisted pair (UTP) cable

23 AWG solid copper conductor

Supports Gigabit 1000 Base T and bandwidth up to 250 Mhz

Colour coded PE Insulation

Outer Jacket Pvc – 5.9 mm

305 Mtrs Easy Pull Box

Available Colours Grey , Yellow , Blue .

Conductor  Solid Bare Electrolytic Grade Copper
Conductor Size 23 AWG
Insulation Polyolefin
Insulation Size 0.980 ± 0.05 mm

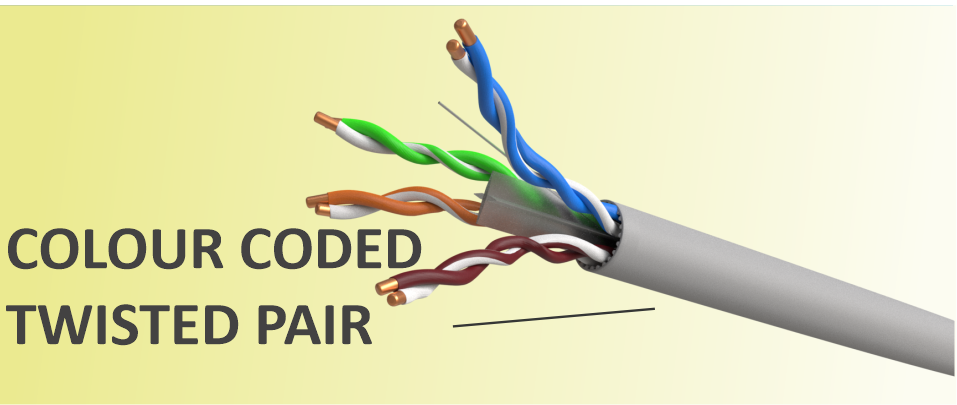

Twisted Pair Identification Colour coded 4 twisted pairs
Jacket PVC
Rated Temperature -10 to 80 degrees
Sheathing Color Grey/Blue/Yellow
Cable Diameter (Approx) 5.9 mm
Speed 1000 Base-T – 250 Mhz
Packing 305 Mtrs Pull box
