2AC01A MINI COAX CABLE

Product Description

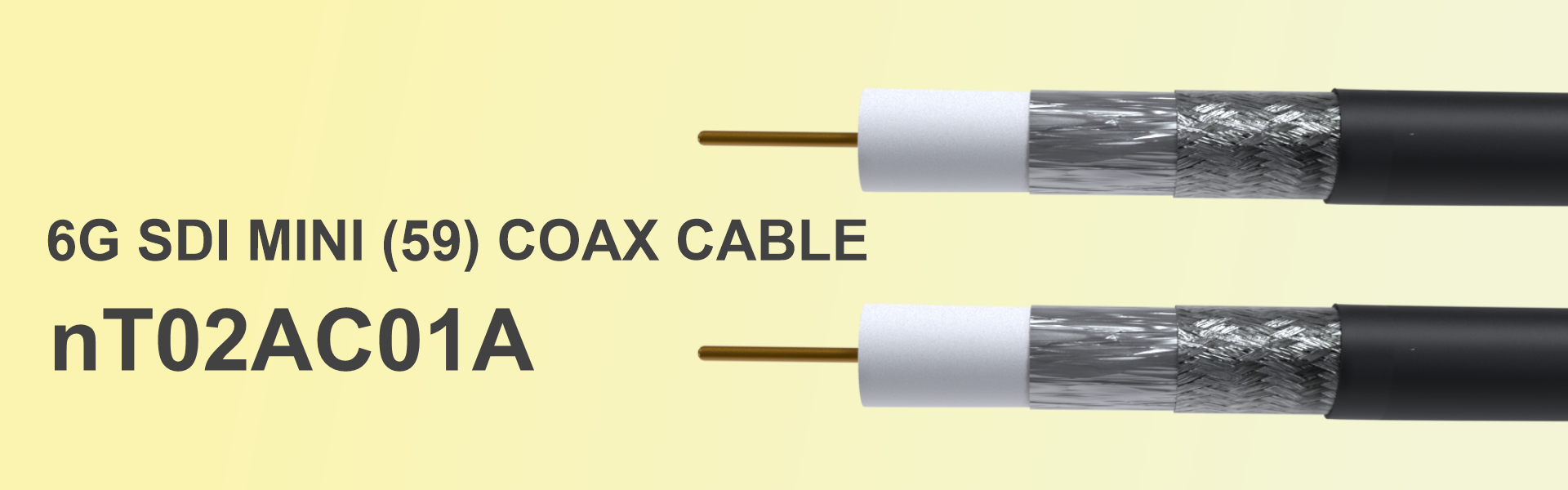

nT02AC01A 6G SDI Mini Coax cable Single stranded .

nT02AC01A is a 6G SDI (Serial Digital Interface) Mini Coax Single st cable – it is a professional-grade coaxial cables used for transmitting uncompressed digital video and audio signals . SDI Mini Coax Cable is a digital 75 ohms coaxial cable and it can carry HD and UHD signals for longer lengths up to 10 mtrs . The center conductor is single strand 20 awg -0.81 mm Copper and the Shield is tin coated copper 100 % coverage with aluminium foil above the foam . The outer insulation is CM rated – making it suitable for multipurpose applications like in wall , open , in rack etc .The cable supports speed up to 6 G Signals . The cable is available in black colour and is packed in easy pull boxes of 300 mtrs . Application – studio , broad case , medical , events , education …..

Specification

Signal Speed 6 G / 3 G
Distance supported 6 G – 40 mtrs.

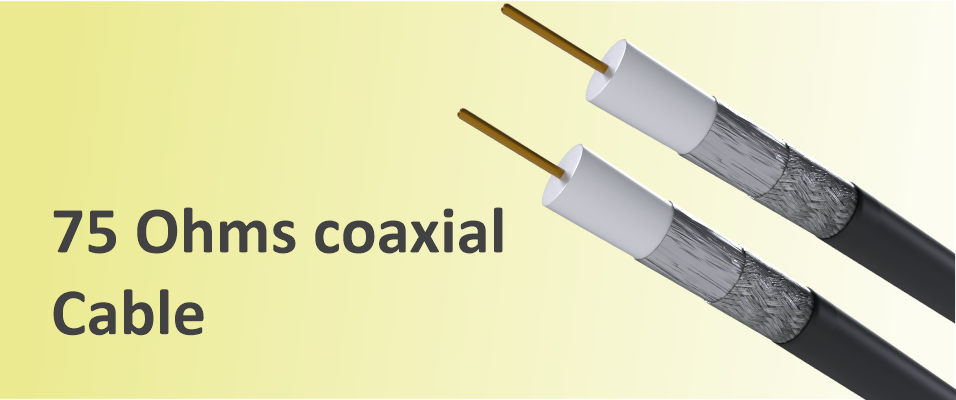

75 Ohms Digital Coax Cable.
Uncompressed Digital Video and Audio Signal.
Center Conductor – 1 x 0.60 mm ( 23 Awg ) Bare Copper.
Shield Al foil over foam + 100 % Coverage Tin Coated Copper.
Foam Dielectric OD 2.95 MM and Outer Jacket 4.6 mm od.
Swept tested 5 MHz – 6000 MHz.
Available in Black Colour .

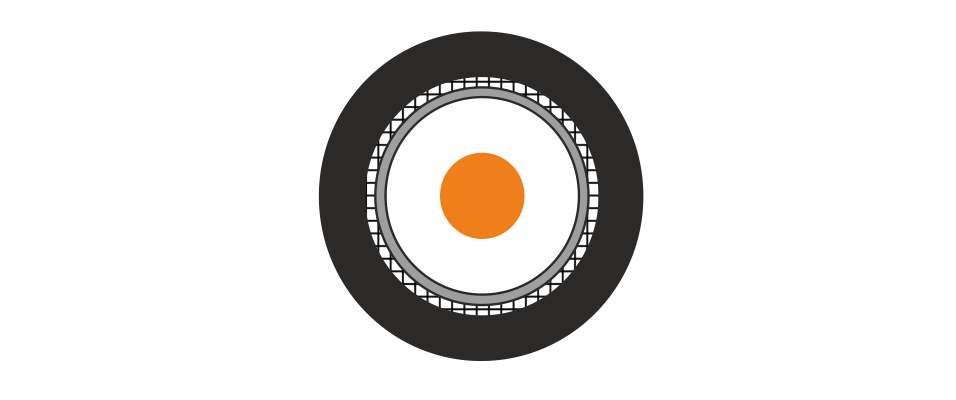

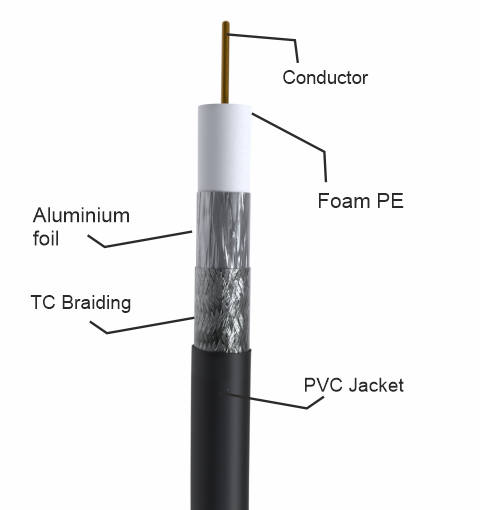

Center Conductor 1 x 0.60 mm ( 23 Awg ) Bare copper
Dielectric Gas Injected Foam PE 2.95 mm
Foil Shield Al Laminated tape -100% coverage
Braid Shield Tinned Copper 100%
Cable Jacket Insulation PVC -Black -4.60 mm
Operating Temperature – 30? to 60?
Impedance 75 ?
Capacitance 55pF/m Nom
Signal Supported 6 G
Distance Supported 6 G -40 mtrs
 Packaging Easy Pull 305 m Box
 Colour Black
Suitable BNC Connector nT4BX02- 360

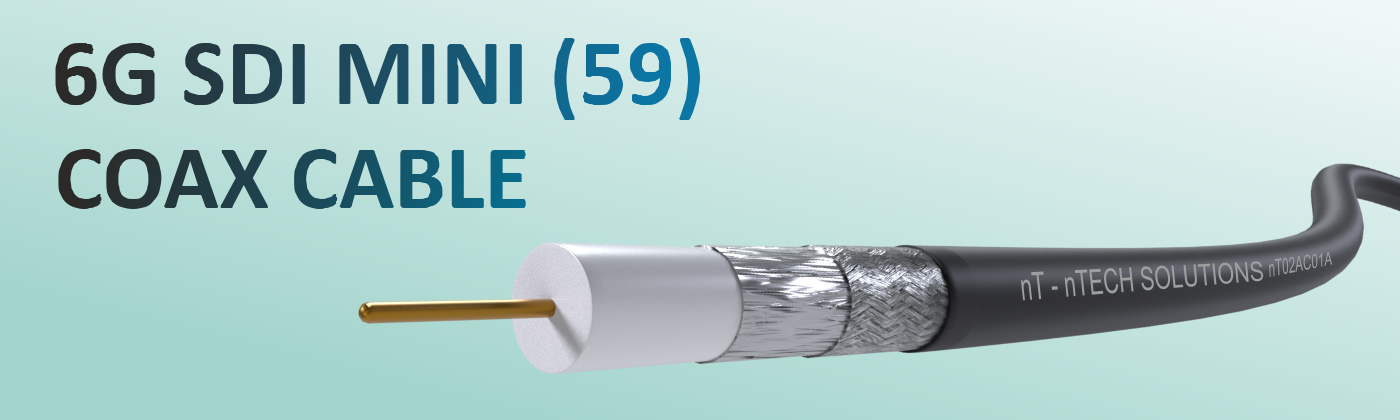

Main Image
