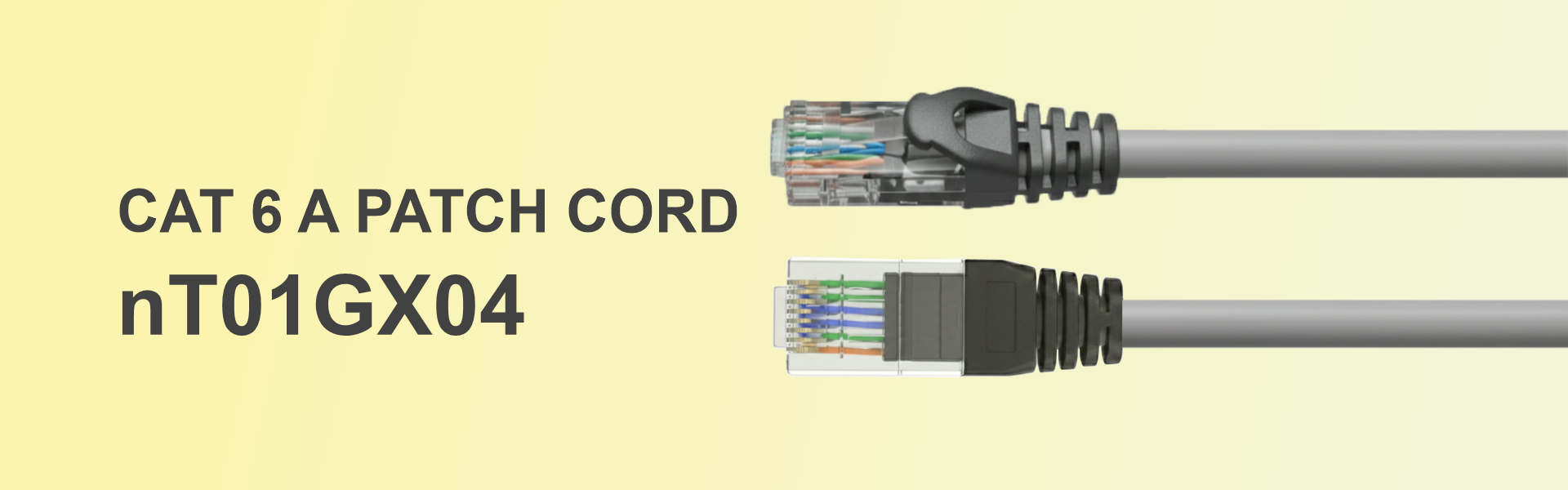

1GX04 CAT 6 A PTACH CORD

Product Description

1GX04 CAT 6 A PATCH CORD

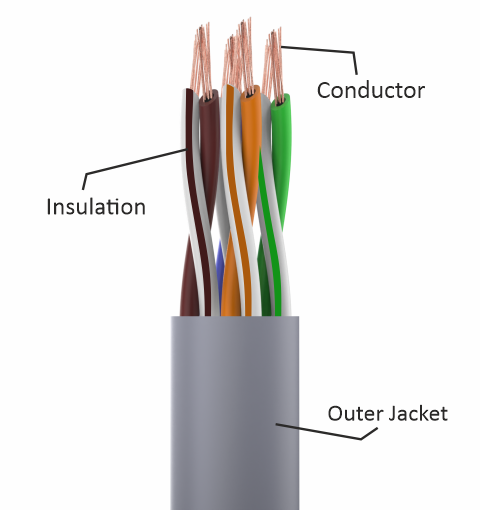

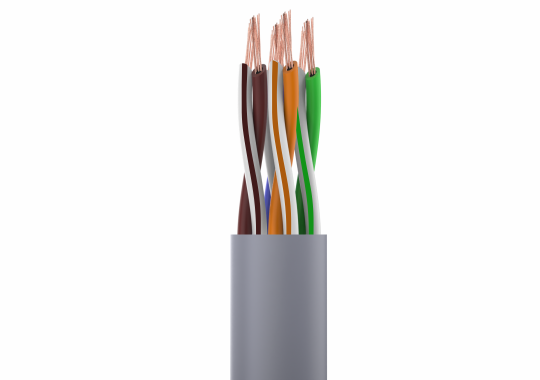

CAT 6 A Patch Cords are made of 24 awg 4 – twisted pairs terminated with cat 6 a RJ 45 Plugs on both the ends . Cable is made up of 4 twisted pairs made up of copper conductor coated with hdpe insulation and pvc outer jacket. Termination standard T-568B Standard . The Cat 6 A Patch cord is factory crimped and machine moulded for the best quality and long life . The patch cord supports 10 G speed . The connector is clear transparent poly carbonate and the pins are gold plated phosphor bronze. Colour : Blue / Grey . Available lengths 0.5 m – 15 m .

Specification

* Construction of the cable – 24 awg – flexible – 4 twisted pair cable.
* Machine Crimped Cat 6 A RJ45 Connector with moulded strain relief

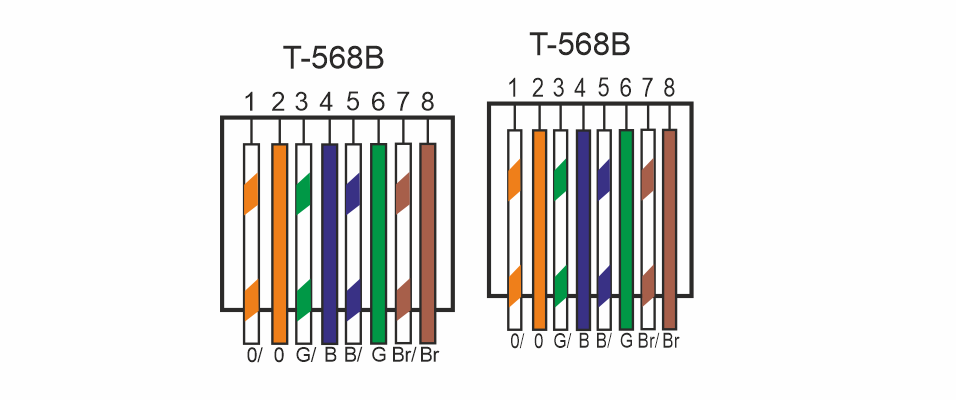

* Connection Standard T-568B .
* Cable conductor Copper
* Supports 10G Speed .
* Connector insulation is made up of Japanese origin Polycarbonate and the pins are phosphor bronze coated with nickel and gold .
* Customized Lengths available .
* Available Lengths – 0.5-15 Mtrs



Connector A Cat 6 A RJ45 Plug
Housing Polycarbonate + strain relief moulding
Coating  Nickel / Gold
Connector B Cat 6 A RJ45 Plug
Housing  Polycarbonate + strain relief moulding
Coating Nickel / Gold
Connection Type Machine Crimpng
Cable Cat 6 A -4 twisted pair
Gauge 24 Awg
Conductor Copper
Connection Standard T-568B
Speed 10 G
Colour Blue / Grey
Length Available 0.5 – 15 mtrs

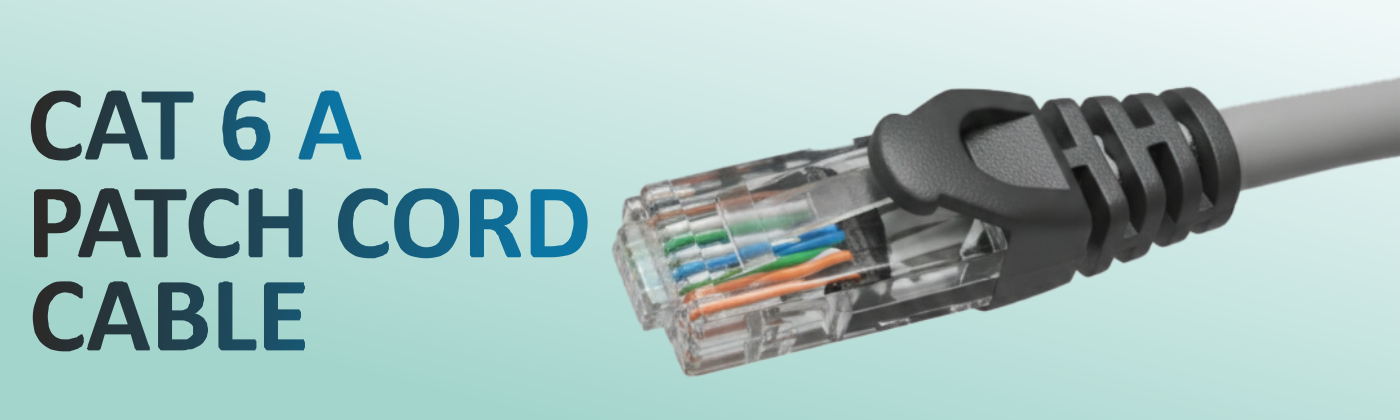

Main Image
