1EA14 6 AMP C14 TO C15

Product Description

nT1EA14 POWER CORD 6A 0.75 Sq mm C 14 TO C15
C14 TO C15 Power cord isa 6 Amp power cord made with 3 core 0.7 5 sq mm power cable . The connectors are heavy duty and rugged and is over moulded for longer life . The 3 pin connectors is nickel coated pin . The connection between the cable and connector is crimping – in order to avoid any loose connections and to avoid heat generation due to loose connection . The cable enables connection between IEC 13 power socket to IEC 16 socket of the devices . IEC 15 pin avoids direct contact of pins in open environment to avoid shocks to customers . The power cord is widely used with most of the devices like computers , monitors , appliances , machines and equipments ….

Specification

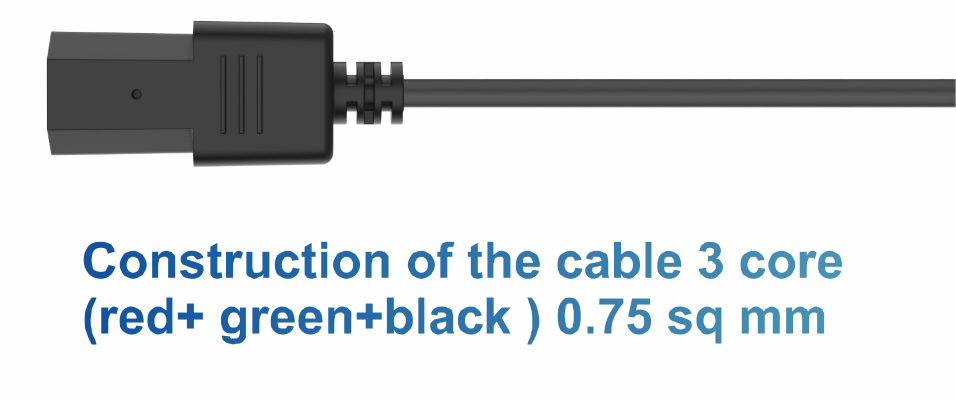

* Construction of the cable 3 core (red+ green +black ) 0.75 sq mm

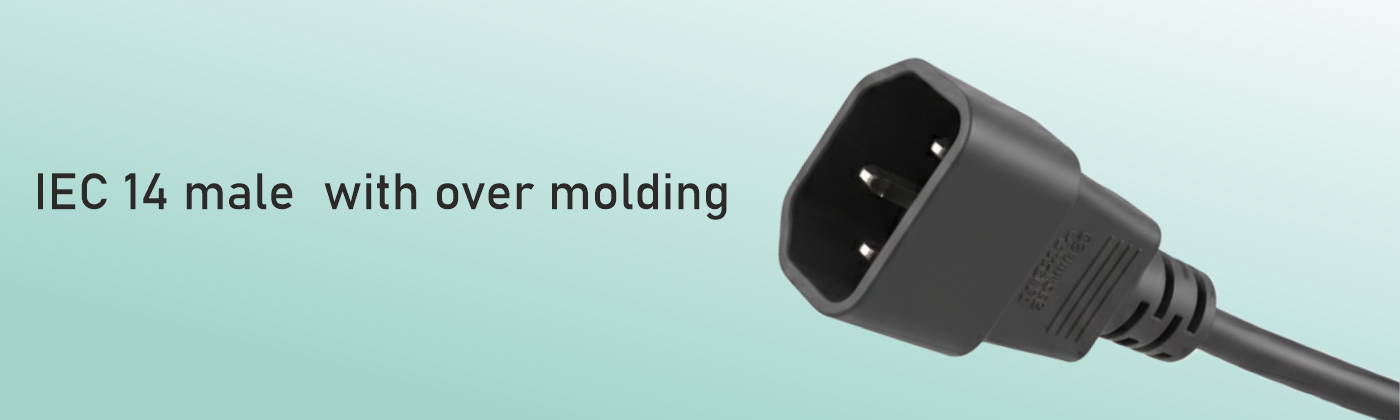

* IEC 14 male with over molding
* IEC 15 female with over molding .
* The connectors are crimped to the wires for longer life and better quality connection .
* The connector is brass with nickel coating. * Power rating 6/10A, 250V .
* Cable conductor copper .
* Available Colour : Black – custom colours also available .

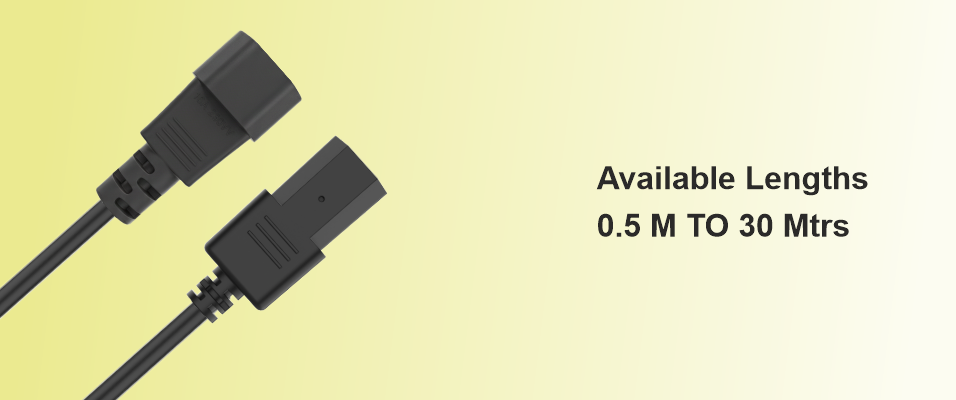

* Available Lengths – 0.5 – 30 mtrs .

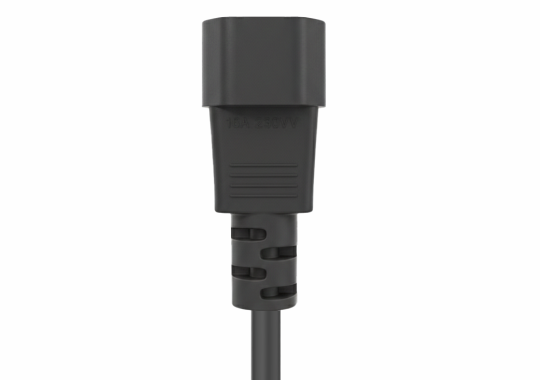

Connector A C1 4 Plug
Connector B C 15 SOCKET
Connection Method Crimping
 Pin Material Brass
Conductor 3 c x 1.0 sqmm , 3 c x 0.75 sq mm , 3 c x 0.5 sq mm Bare copper
Colour Identification Green / Red / Black
Cable Od 1.0 sq mm -8.0 mm , 0.75 sq mm -7.7 mm , 0.50 sq mm – 7.3 mm
Insulation Thickness 0.60 mm
Insulation Test 3.0 KV AC rms for 5 minutes
Voltage Rating 1100V ± 10 % & 50Hz ± 5 %
Lengths Available 0.5-30 mtrs
Colour Black ( others customised )
