Product Description

nT01BH24 USB 3.0 ACTIVE A F PANEL MOUNT TO USB BM CABLE

USB 3.0 Active A f panel mount to B m CABLE enables to connect a usb 3.0 device beyond 5 meters without signal loss . The usb 3.0 active cable supports data transfer speeds up to 5 gbps . The cable is backward compatible with usb 2.0 and usb 1.1 devices . Usb A female port can be panel mounted and is to be connected to the host device and the usb B male port is to be connected to the slave device . The cable is plug and play , hot swappable and no driver required . Power supply input given at usb B male side . Compatible with windows , mac and android systems . Available lengths from 5 meters to 50 meters. Applications machine vision ,video conference camera , speakers , printers , scanners , keyboard , mouse , storage devices …..



Specification

*Usb 3.0 A female panel mount to B male cable,
*Construction of the cable – 24 /20 awg – flexible – 2 shielded twisted pair + 1 twisted pair and 2 c cable + al foil + drainwire + shield + pvc insulation

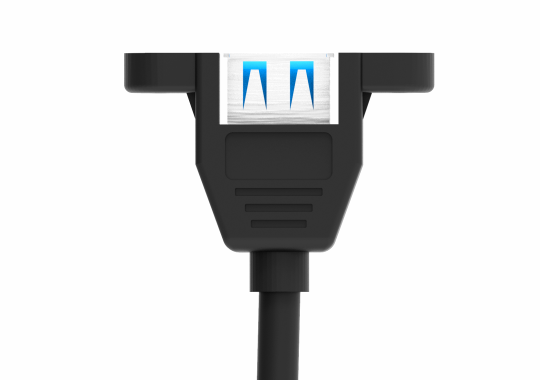

*Usb 3.0 A female – panel mounting type to be connected to the host and the B male towards the slave device,
*Data transfer speed supported – 5 gbps,
*Downward compatible with usb 2.0 and usb 1.1 version,
*External dc power 5 v 2 amps – at usb B male,
*Supported os windows,mac and android,plug and play / hot swappable
And no drivers required,
* available lengths 5 mtrs to 50 mtrs,
* External power adapter provided .

Host USB 3.0 A FEMALE PANEL MOUNT
SLAVE USB 3.0 B MALE
SPEED 5 GBPS
Version USB 3.0(BACKWARD COMPATIBLE WITH USB 2.0 AND 1.1V)
COMPATIBLE OS WINDOWS,MAC,ANDROID
POWER  DC 5V 2 AMPS
LENGTH 5 MTRS TO 50 MTRS
PROJECTION OVER CURRENT PROTECTION
CONNECTION STATUS  LED AT USB A FEMALE
Cable 24 /20 awg – flexible – 2 shielded twisted pair + 1 twisted pair and 2 c cable + al foil + drainwire + shield + pvc insulation
COLOUR BLACK
