Product Description

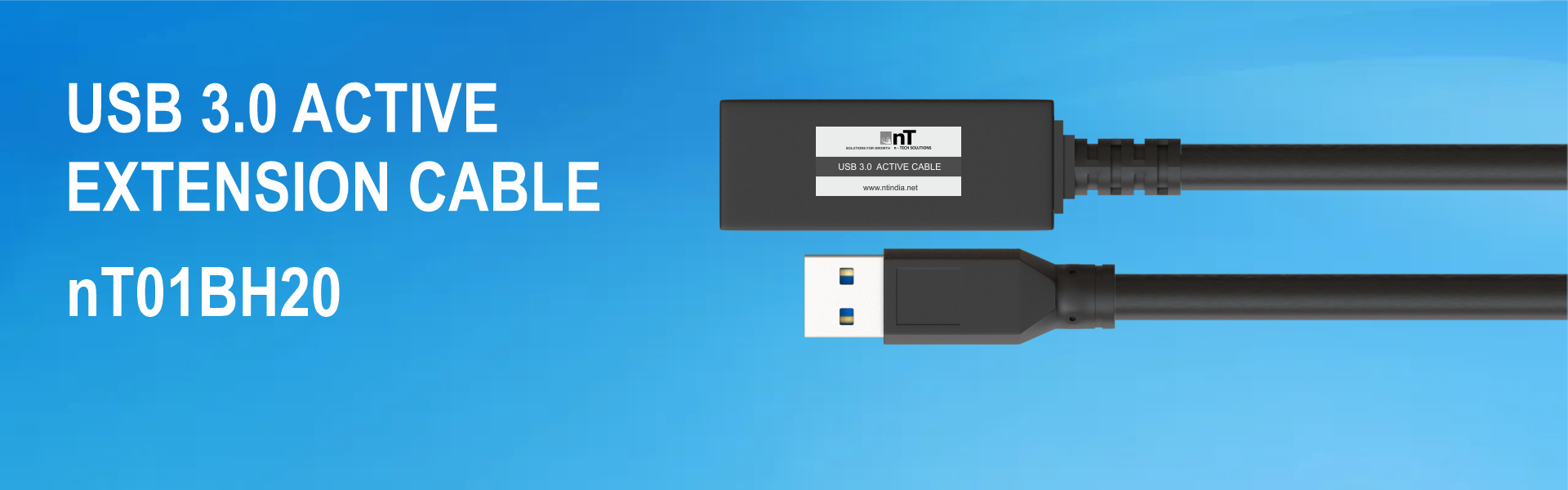

nT01BH20 USB 3.0 ACTIVE EXTENSION CABLE

USB 3.0 ACTIVE EXTENSION CABLE enables to connect a usb 3.0 device beyond 5 meters without signal loss . The usb 3.0 active extension cable supports data transfer speeds up to 5 gbps . The cable is backward compatible with usb 2.0 and usb 1.1 devices . Usb A male port is to be connected to the host device and the usb A female port is to be connected to the slave device . The cable is plug and play , hot swappable and no driver required . Power supply input given at usb A female side . Compatible with windows , mac and android systems . Available lengths from 5 meters to 50 meters. Applications machine vision ,video conference camera , speakers , printers , scanners , keyboard , mouse , storage devices …..



Specification

Usb 3.0 A male to A female cable,

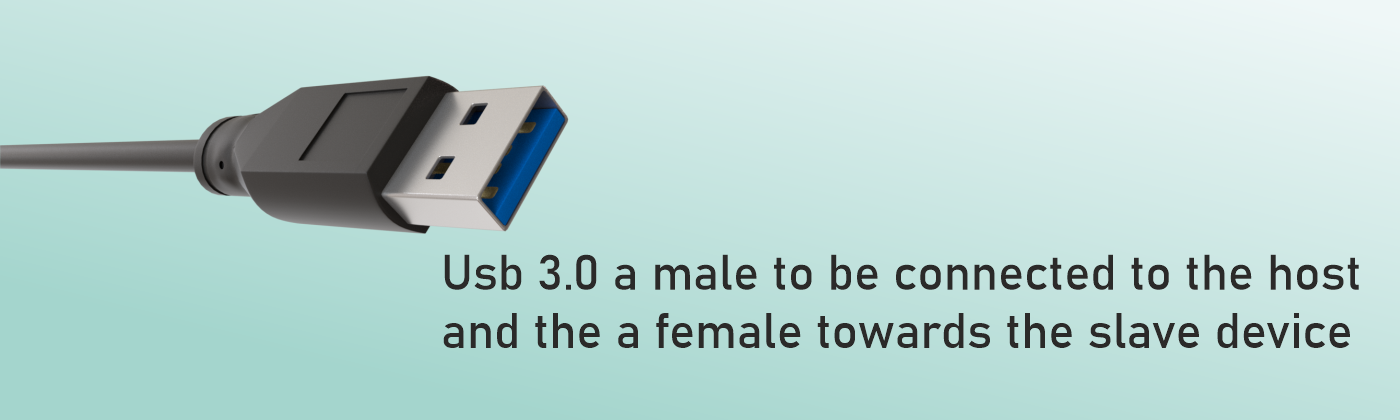

Usb 3.0 A male to be connected to the host and the A female towards the slave device,
Data transfer speed supported – 5 gbps,

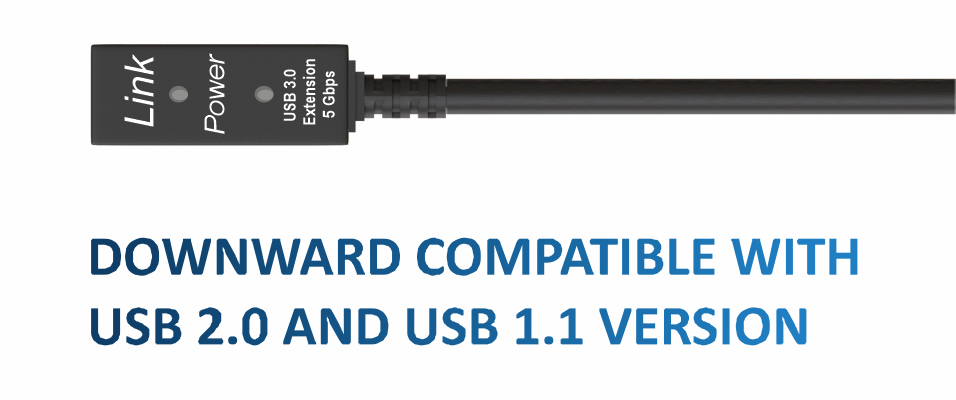

Downward compatible with usb 2.0 and usb 1.1 version,
External dc power 5 v 1 amps – dc port at usb A female,
Supported os windows,mac and android,plug and play / hot swappable

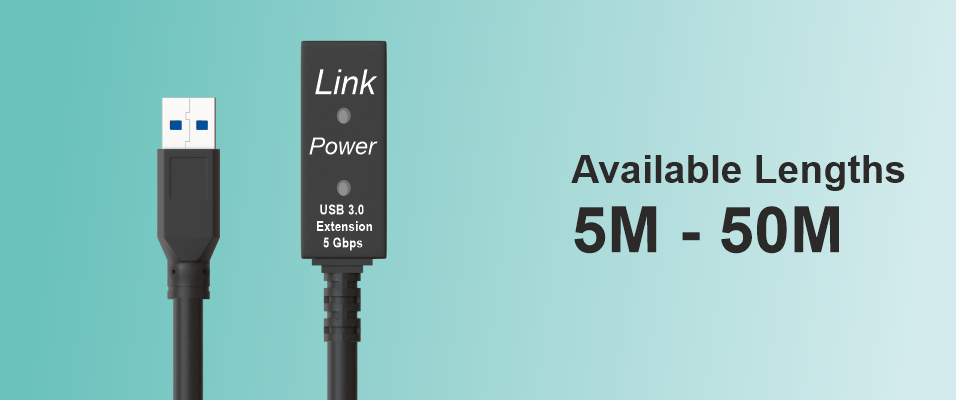

And no drivers required,available lengths 5 mtrs to 50 mtrs,
External power adapter provided beyond 5 mtrs ( no power adapter for 5 mtrs),nT1BH2005 : 5 Mtrs , nT1BH2010 : 10 Mtrs , nT1BH2015 : 15 Mtrs , nT1BH2020 : 20 Mtrs , nT1BH2030 : 30 Mtrs , nT1BH2040 : 40 Mtrs , nT1BH2050 : 50 Mtrs .



HOST USB 3.0 A MALE
SLAVE USB 3.0 A FEMALE
SPEED 5 GBPS
VERSION 3.0(BACKWARD COMPATIBLE WITH USB 2.0 AND 1.1V)
COMPATIBLE OS WINDOWS,MAC,ANDROID
POWER DC 5V 1 AMPS
LENGTH 5 MTRS TO 50 MTRS
PROJECTION OVER CURRENT PROTECTION
CONNECTION STATUS LED AT USB A FEMALE
COLOUR BLACK
