1BH11 USB 2.0 V ACTIVE AM TO AF W POWER

Video Link

Product Description

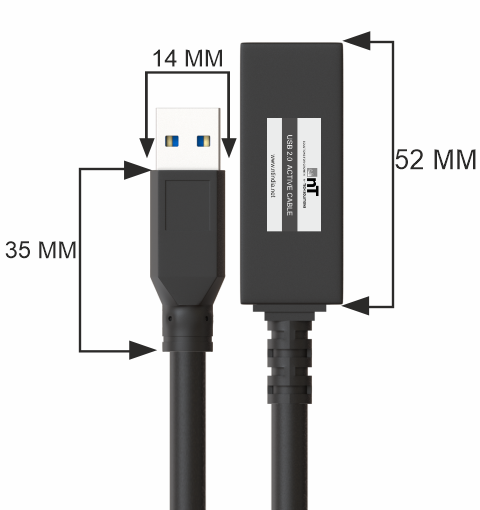

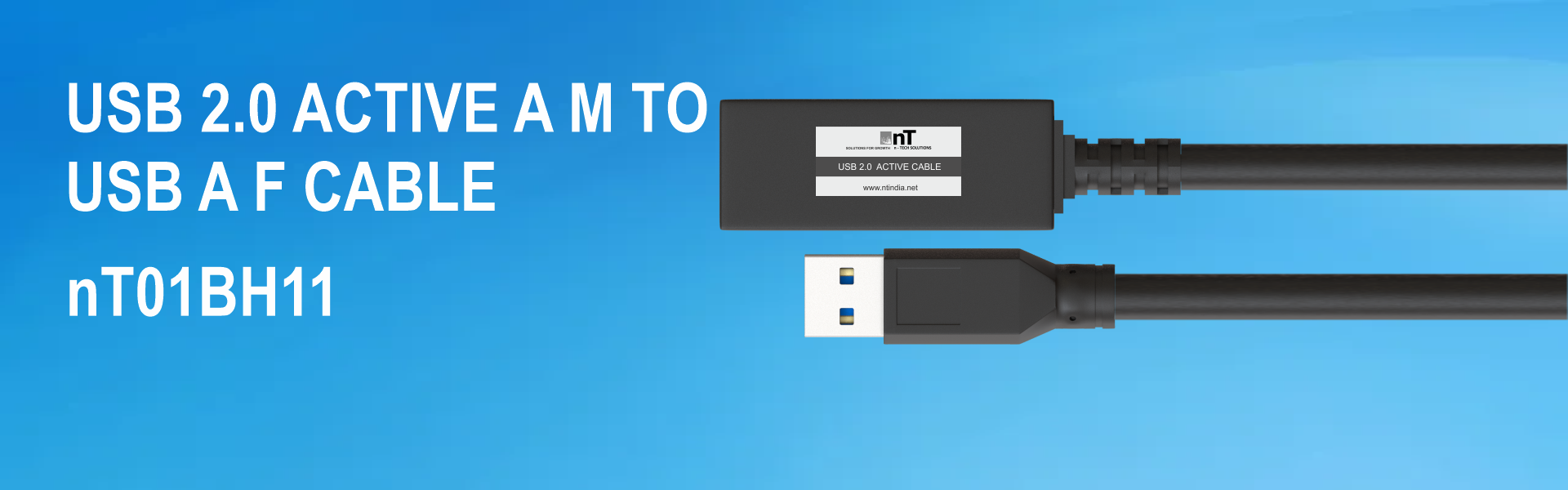

nT01BH11 USB 2.0 ACTIVE EXTENSION CABLE

USB 2.0 ACTIVE EXTENSION CABLE enables to connect a usb 2.0 device beyond 5 meters without signal loss . The usb 2.0 active extension cable supports data transfer speeds up to 480 mbps . The cable is backward compatible with usb 1.1 devices . Usb a male port is to be connected to the host device and the usb a female port is to be connected to the slave device . The cable is plug and play , hot swappable and no driver required . Power supply input given at usb a female side . Compatible with windows , mac and android systems . Available lengths from 5 meters to 50 meters. Applications machine vision ,video conference camera , speakers , printers , scanners , keyboard , mouse , storage devices …..

Specification

Usb 2.0 a male to a female cable,

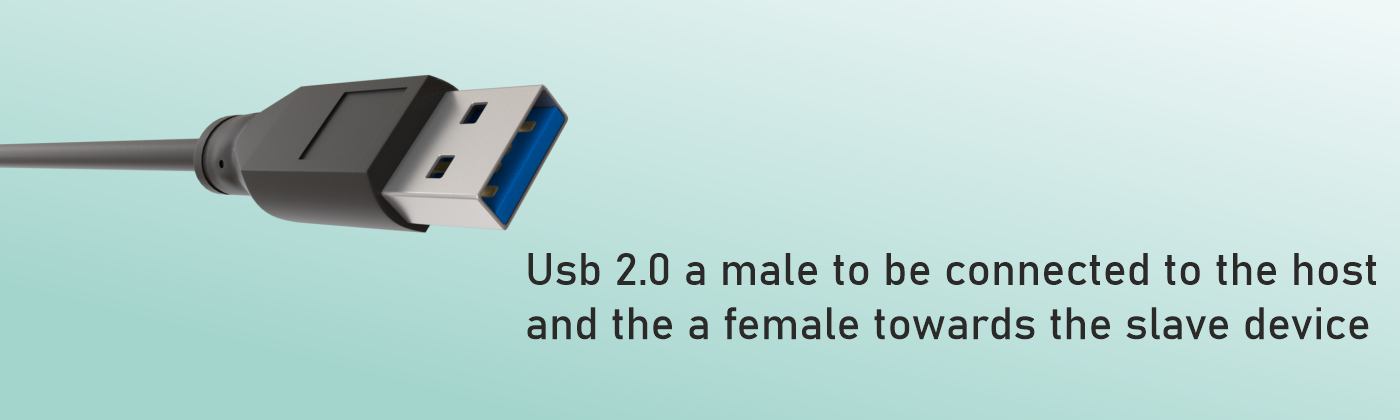

Usb 2.0 a male to be connected to the host and the a female towards the slave device,
Data transfer speed supported – 480 mbps,

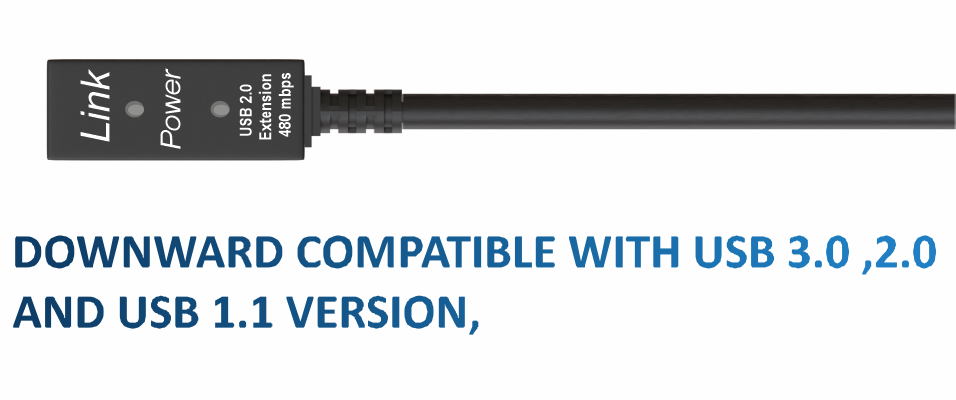

Downward compatible with usb 1.1 version,
External dc power 5 v 1 amps – dc port at usb a female,
Supported os windows,mac and android,plug and play / hot swappable

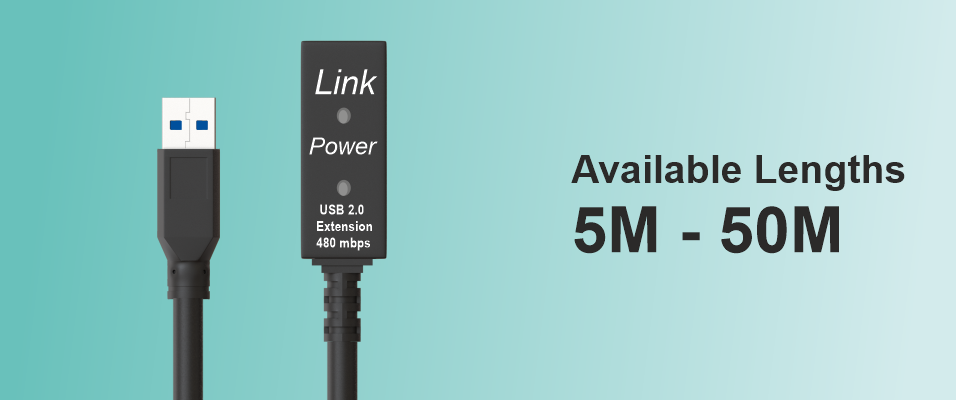

And no drivers required,available lengths 5 mtrs to 50 mtrs,
External power adapter provided beyond 5 mtrs ( no power adapter for 5 mtrs),
nT1BH1105 : 5 mtrs,nT1BH1110 : 10 mtrs,nT1BH1115 : 15 mtrs,
nT1BH1120 : 20 mtr,nT1BH1130 : 30 mtrs,nT1BH1140 : 40 mtrs, nT1BH1150 : 50 mtrs .



HOST USB 2.0 A MALE
SLAVE USB 2.0 A FEMALE
SPEED 480 MBPS
VERSION 2.0(BACKWARD COMPATIBLE WITH USB 1.1V)
COMPATIBLE OS WINDOWS,MAC,ANDROID
POWER DC 5V 1 AMPS
LENGTH  5 MTRS TO 50 MTRS
PROTECTION  OVERCURRENT PROTECTION
CONNECTION STATUS LED AT USB A FEMALE
COLOUR BLACK
