1BG32 USB 4.0 C M TO C M G3 40Gbps

Product Description

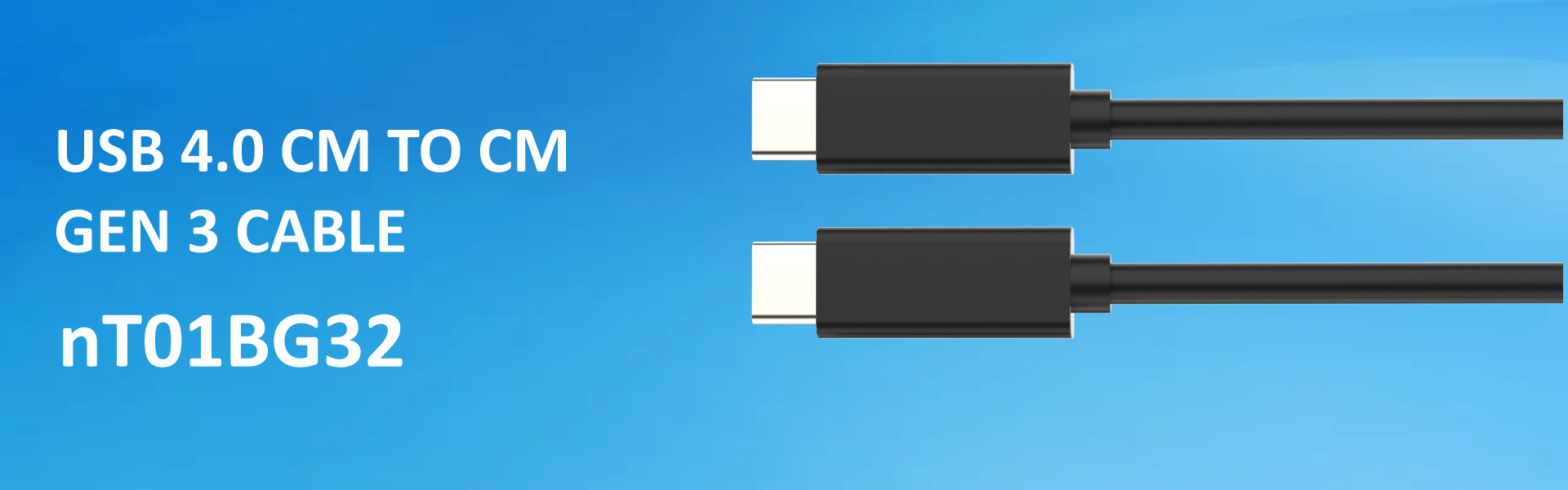

nT01BG32 USB 4.0 CM TO CM GEN 3 CABLE

USB 4.0 CM to CM is full featured Gen 3 cable . The cable and the connector is fully shielded and the pins are gold coated . It supports Power , data and av . The cable supports 48 V – 5A (240W) Power output . The cable supports 8K video signals . The data speed supported up to 40 Gbps for 1 mtr . The cable is with E-marker IC and the c connector is reversible . Support USB 4 , Thunderbolt 3 , Thunderbolt 4 devices . The cable is constructed with shielded twisted pairs and multi core wires and the gauge ranges from 26 to 34 awg . Available Lengths : 1 mtrs . Applications : VR , Power , Data transfer , Video conferencing , AV Connectivity , Docking …..

Specification

* Construction of the cable -26- 34 awg – flexible – shielded twisted pair + twisted pair and multicore cable + al foil + drainwire + shield + pvc insulation

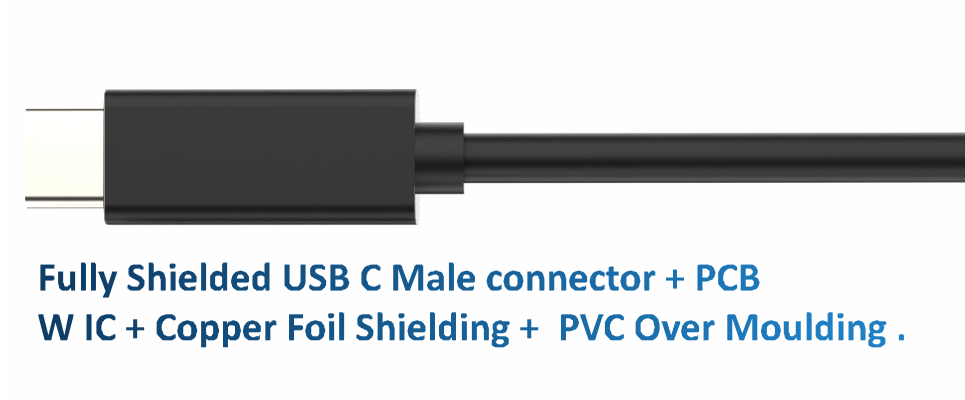

* Fully Shielded USB C Male connector – + PCB W IC + Copper Foil Shielding + PVC Over Moulding .
* Cable conductor Tin Coated Copper

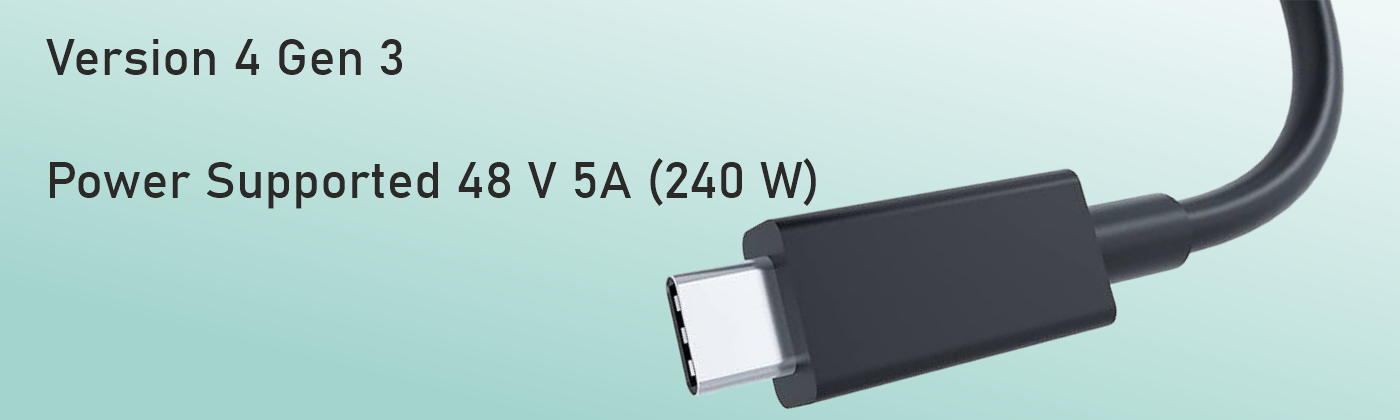

* Version 4 Gen 3 .
* Supports Speed 40 Gbps Speed up to 1 Mtrs .
* Connector is Nickel coated and pins are gold coated .
* Power Supported 48 V 5A (240 W)
* Resolutions supported 4K 60 Hz.
* Shielding protects from EMI an RF Signals .
* Available Lengths – 1 Mtrs

Connector A & B USB C M + PCB Full Shielded
Housing of both connectors ABS + PVC Overmoulding
Coating of both connectors  Nickel / Gold
Connection Type Machine Soldering , Shield Crimping
Cable flexible – shielded twisted pair + twisted pair and multicore cable + al foil + drainwire + shield + pvc insulation
Gauge 26 – 34 Awg
Conductor  Tin coated Copper
Speed 40 Gbps 1 m
Supports Thunderbolt 3 , Thunderbolt 4 , USB 4.0 GEN 3 Bacward compatible with USB 3.0 , USB 2.0 , USB 1.1
Power 48 v – 5A – 240 W
Resolution 8K 60 Hz
Protection EMI & RF Protection
Colour  Black
Length Available 1
