1BG30

Product Description

nT01BG30 USB 4.0 CM TO CM CABLE

USB 4.0 CM to CM is full featured Gen 2 cable . The cable and the connector is fully shielded and the pins are gold coated . It supports Power , data and av . The cable supports 48 V – 5A (240W) Power output . The cable supports 4K video signals . The data speed suppoted up to 20 Gbps for 1 mtr and 2 mtrs . The cable is with E-marker IC and the c connector is reversible .The cable is constructed with shielded twisted pairs and multi core wires and the gauge ranges from 26 to 34 awg . Available Lengths : 1 – 2 mtrs . Applications : VR , Power , Data transfer , Video conferencing , AV Connectivity , Docking …..

Specification

* Construction of the cable -26- 34 awg – flexible – shielded twisted pair + twisted pair and multicore cable + al foil + drainwire + shield + pvc insulation
* Fully Shielded USB C Male connector – + PCB W IC + Copper Foil Shielding + PVC Over Moulding .

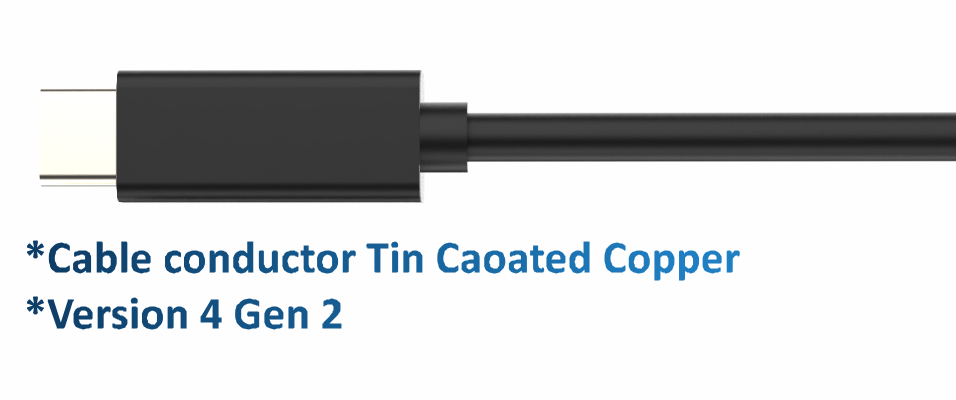

* Cable conductor Tin Coated Copper
* Version 4 Gen 2 .
* Supports Speed 20 Gbps Speed up to 1 Mtrs and 2 .

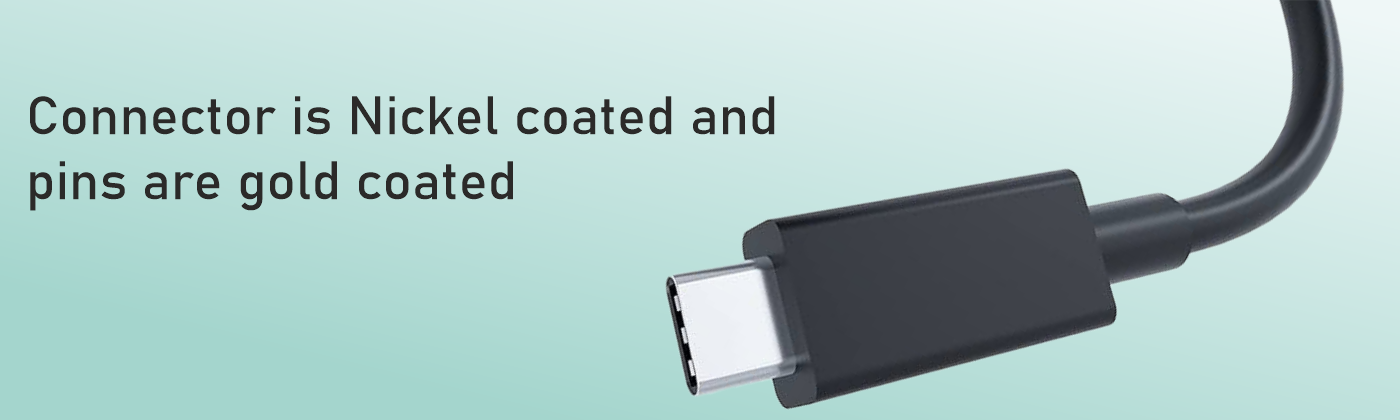

* Connector is Nickel coated and pins are gold coated .
* Power Supported 48 V 5A (240 W)
* Resolutions supported 4K 60 Hz.
* Shielding protects from EMI an RF Signals .

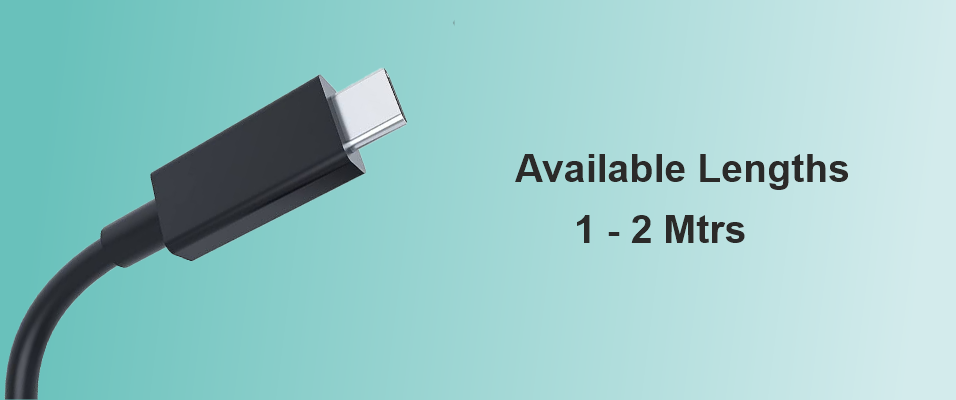

* Available Lengths – 1- 2 Mtrs

Connector A & B  USB C M + PCB Full Shielded
Housing of both connectors  ABS + PVC Overmoulding
Coating of both connectors  Nickel / Gold
Connection Type Machine Soldering , Shield Crimping
Cable flexible – shielded twisted pair + twisted pair and multicore cable + al foil + drainwire + shield + pvc insulation
Gauge 26 – 34 Awg
Conductor  Tin coated Copper
Speed 20 Gbps 1 m & 2 m
Version USB 4.0 GEN 2 Backward compatible with USB 3.0 , USB 2.0 , USB 1.1
Power 48 v – 5A – 240 W
Resolution 4K 60 Hz
Protection EMI & RF Protection
Colour  Black
Length Available 1 – 2 mtrs
