1BG26 USB 3.2 Active C M TO C F

Product Description

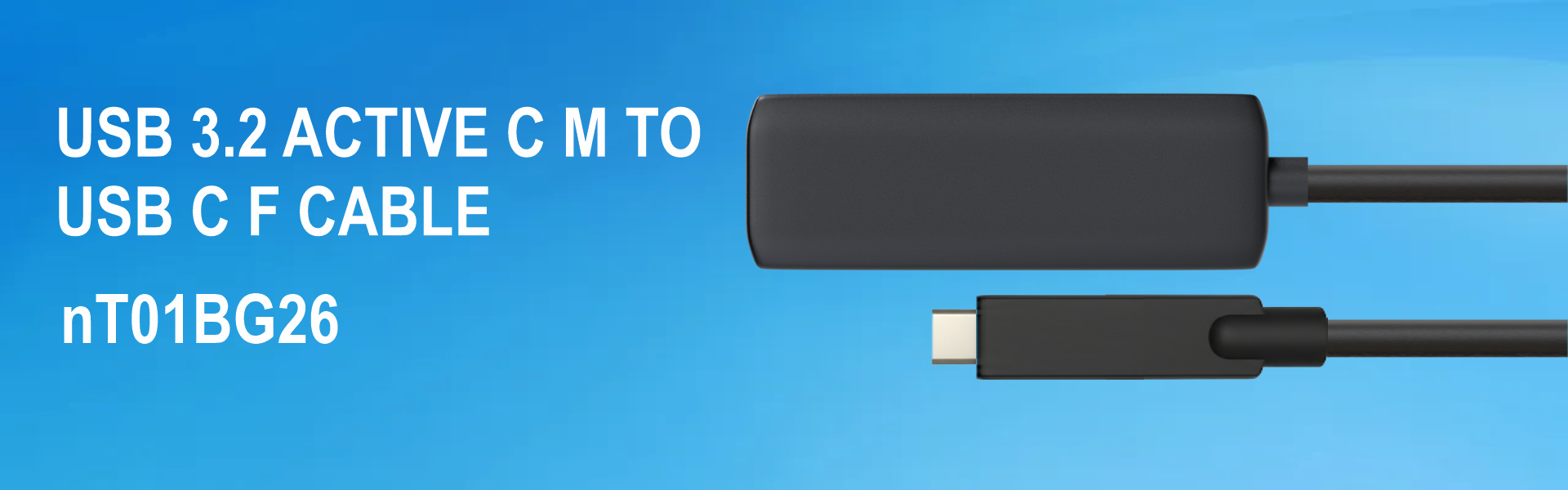

nT01BG26 USB 3.2 ACTIVE C M TO USB C F CABLE

USB 3.2 Active C m to C F CABLE enables to connect a usb 3.2 Gen2 device beyond 3 meters without signal loss . The usb 3.2 – Gen 2 active cable supports data transfer speeds up to 10 gbps . The cable is backward compatible with usb 3.1 , 3.0 , 2.0 and usb 1.1 devices . The C Male side is connected to the Host and the C Female to the devices . . The cable is plug and play , hot swappable and no driver required . The cable supports Powe 5 V 1.5 A. . Compatible with windows , mac and android systems . Available lengths from 5 meters . Applications machine vision ,video conference camera , speakers , printers , scanners , keyboard , mouse , storage devices …..

Specification

Usb 3.2 C male to C Female cable,

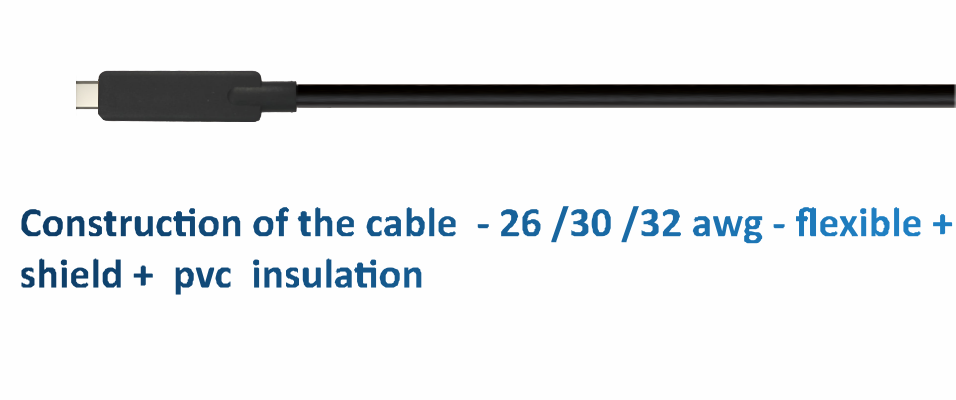

Construction of the cable – 26 /30 /32 awg – flexible + shield + pvc insulation
Usb C M to be connected to Host
Usb C F to be conencted to the Slave devices .
Data transfer speed supported – 10 gbps,

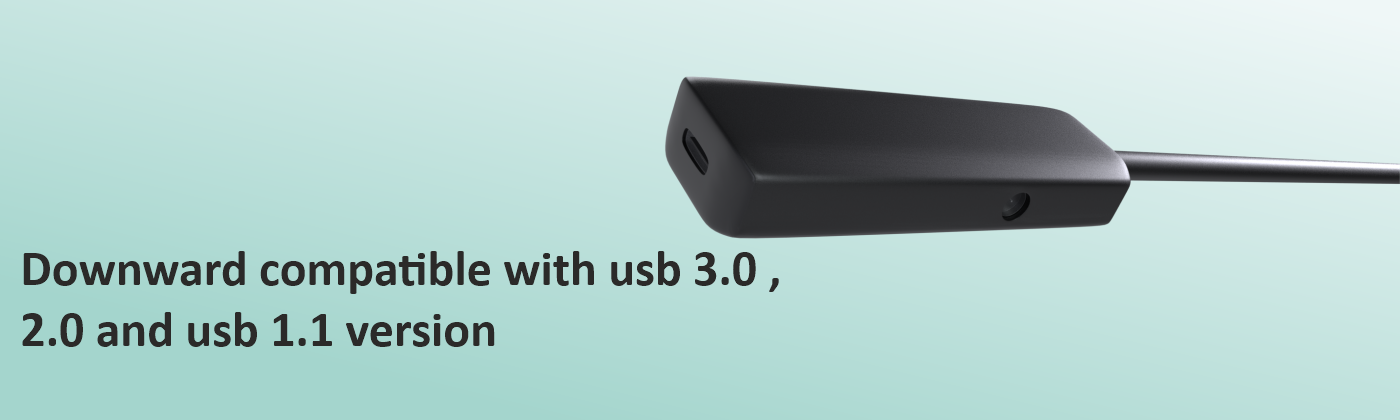

Downward compatible with usb 3.0 , 2.0 and usb 1.1 version,
Power supported 5 V 1.5 A , Supported os windows,mac and android,plug and play / hot swappable
And no drivers required , available lengths 5 mtrs

Connector A  USB C M- Host
Housing  ABS Housing with strain relief
Connector B USB C F- Device
Housing ABS Housing with strain relief
Coating of both connectors  Nickel / Gold
Connection Type / PCB / Machine Soldering
Cable 26 /30 /32 awg shielded twisted pair cables
 Version Usb 3.2 Gen 2 , Backward compatible with usb 3.1 ,3.0 /2.0/1.1
Speed 10 Gbps , Supports – Data
Supports Data
Power  5 V 1.5 A
Protection EMI & RF Protection
Colour Black

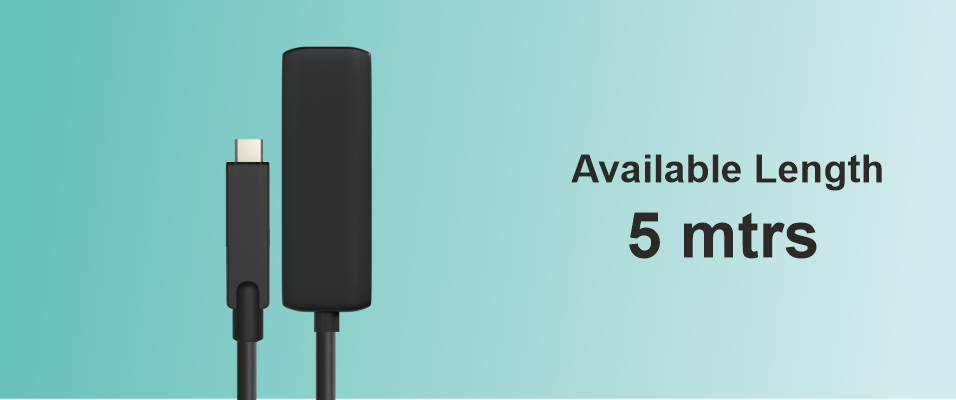

Length Available 5 mtrs
Main Image
Small Image 1
Small Image 2
Small Image 3
Small Image 4
“
