1BG22 USB C M TO C M ACTIVE CABLE

Product Description

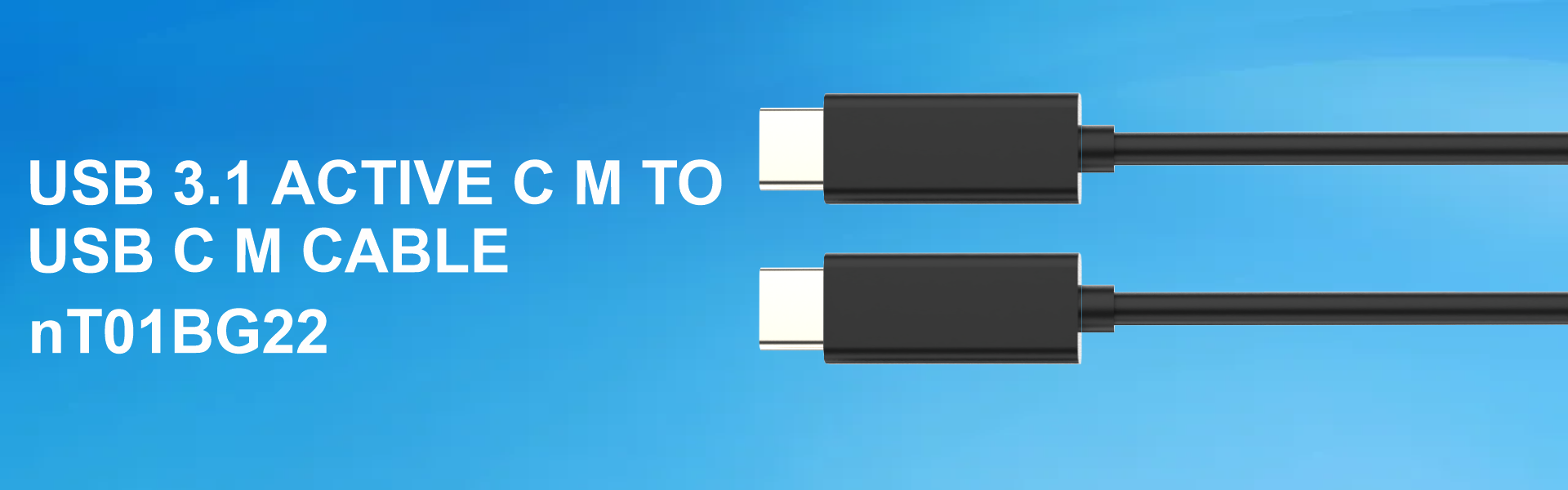

nT01BG22 USB 3.1 ACTIVE C M TO USB C M CABLE

USB 3.1 Active C m to C m CABLE enables to connect a usb 3.1 device beyond 3 meters without signal loss . The usb 3.1 active cable supports data transfer speeds up to 5 gbps . The cable is backward compatible with usb 3.0 , 2.0 and usb 1.1 devices . Usb c male port is to be connected to the host device and the power side usb C male port is to be connected to the slave device . The cable is plug and play , hot swappable and no driver required . Power supply input given at usb C device side . Compatible with windows , mac and android systems . Available lengths from 5 meters to 30 meters. Applications machine vision ,video conference camera , speakers , printers , scanners , keyboard , mouse , storage devices …..

Specification

Usb 3.1 C male to C male cable.

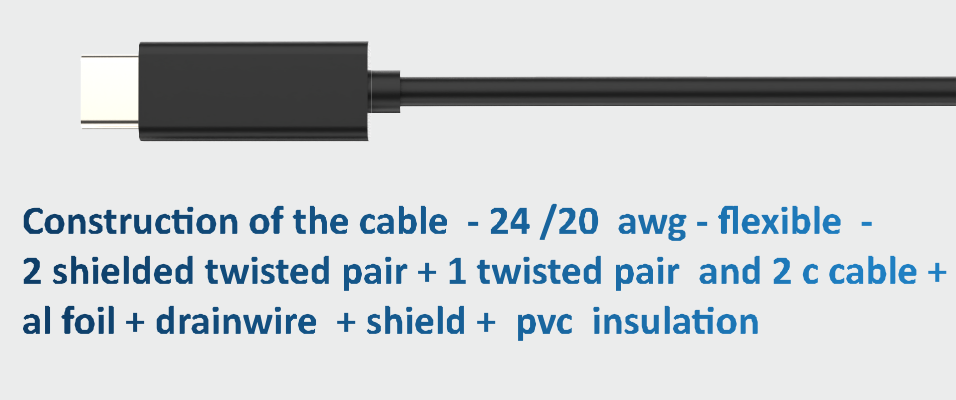

Construction of the cable – 24 /20 awg – flexible – 2 shielded twisted pair + 1 twisted pair and 2 c cable + al foil + drainwire + shield + pvc insulation
Usb C male to be connected to the host and the C male towards the slave device.
Data transfer speed supported – 5 gbps.
Downward compatible with usb 3.0 , 2.0 and usb 1.1 version,
External dc power 5 v 2 amps – at usb C male Device side.
Supported os windows,mac and android,plug and play / hot swappable

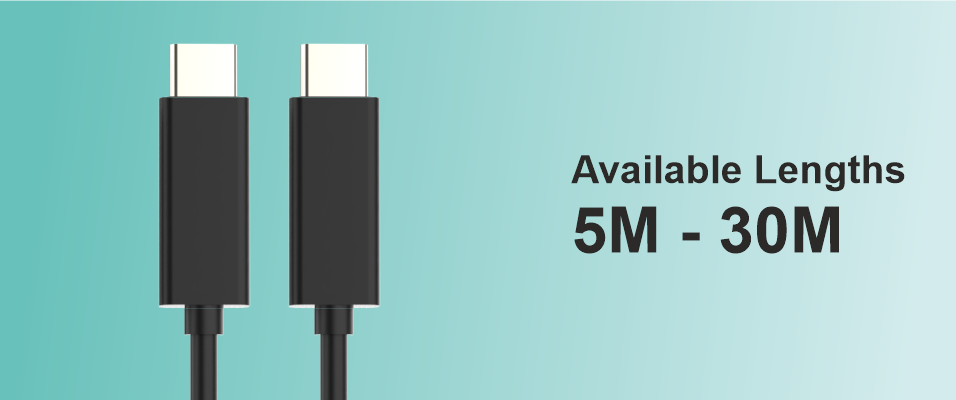

And no drivers required,available lengths 5 mtrs to 30 mtrs.
External power adapter provided .

HOST USB C MALE TO COMPUTER
SLAVE USB C MALE TO DEVICE
SPEED 5 GBPS
VERSION USB 3.1(BACKWARD COMPATIBLE WITH USB 3.0 , 2.0 AND 1.1V)
COMPATIBLE OS  WINDOWS,MAC,ANDROID
POWER DC 5V 2 AMPS
LENGTH 5 MTRS TO 30 MTRS
PROJECTION OVER CURRENT PROTECTION
CONNECTION STATUS LED AT USB A FEMALE
CABLE 24 /20 AWG – FLEXIBLE – 2 SHIELDED TWISTED PAIR + 1 TWISTED PAIR AND 2 C CABLE + AL FOIL + DRAINWIRE + SHIELD + PVC NSULATION
COLOUR BLACK
