1BG18 USB A TO C FIBER

Product Description

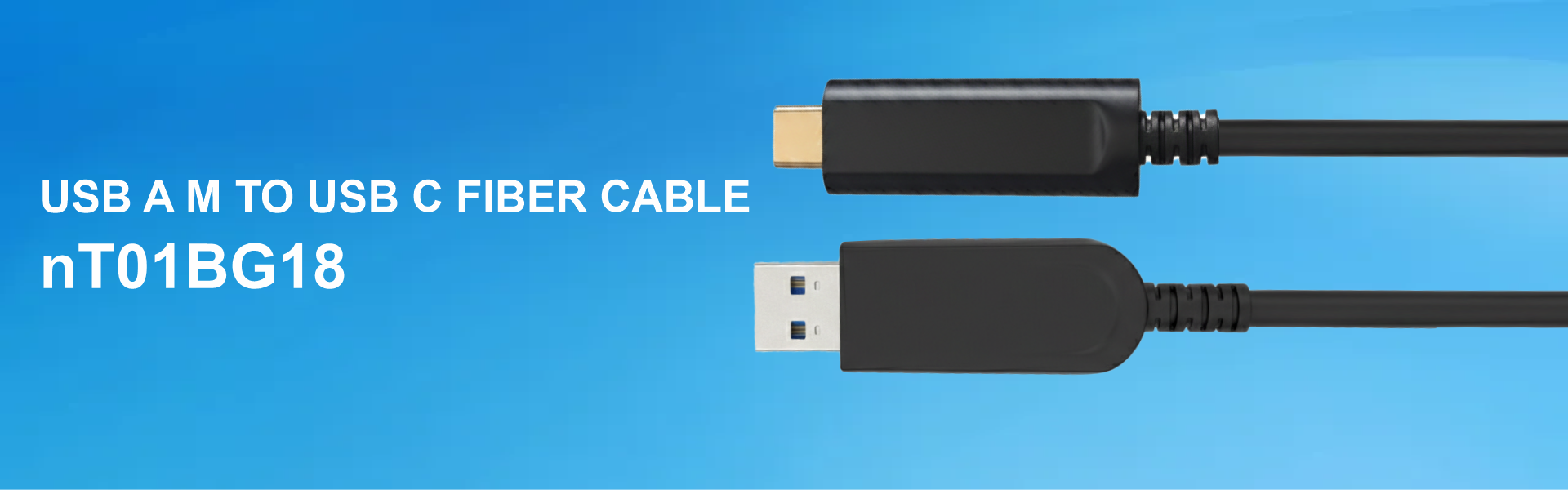

nT01BG18 USB A M TO USB C FIBER CABLE

USB 3.1 A-C AOC is the Gen2 active optical cable which can support downward compatible with USB 2.0 . Super speed data transmission – support length up to 15m max, – signal quality is much more stable . Data speeds supported 10Gbps super speed , meets USB3.1 gen2 standard . Hybrid fiber + copper cable construction . Rugged connectors with casting housing . Support 5V 900mA max . The cable is single direction – A male is to be connected to Host and C male to the slave devices . It is suitable for applications that do not have on-site power supply .This optical fiber cable can be applicated to machine vision, Remote monitoring, etc.

Specification

* Construction of the cable -Hybrid fiber + copper .
* Fully Shielded USB C Male connector – + PCB + Metal Casting Housing

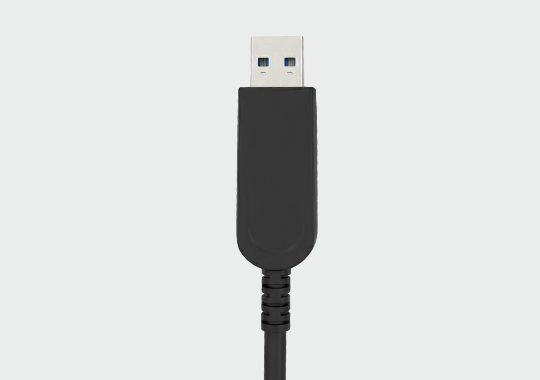

* USB A Male connector – + PCB + Metal Casting Housing
* USB A M to be connected to the Host .
* USB C M to be connected to the Slave device. * Cable conductor Tin Coated Copper and fiber optics.
* Supports Speed 10 Gbps .

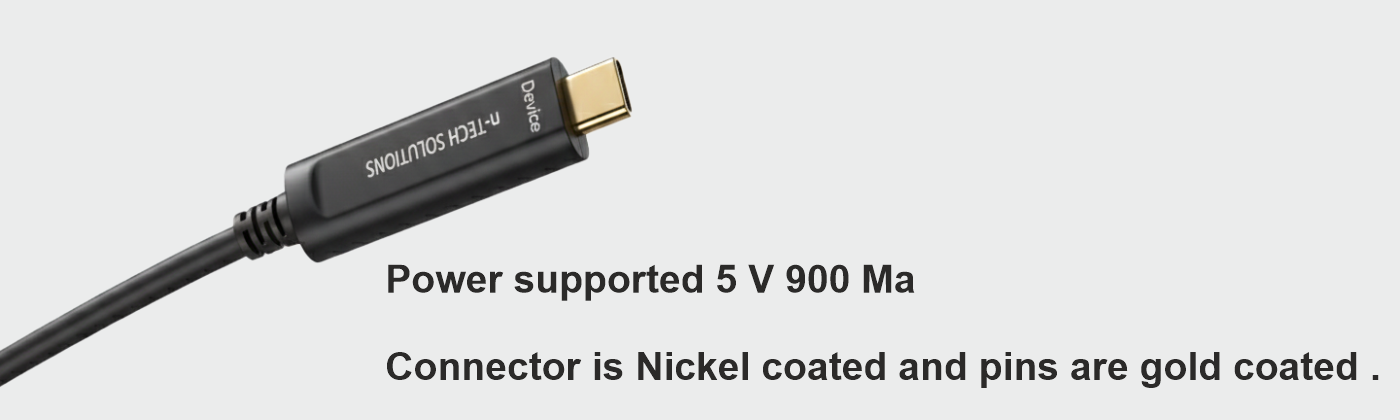

* Power supported 5 V 900 Ma
* Connector is Nickel coated and pins are gold coated . * Meet USB 3.1 Gen2 Standard .

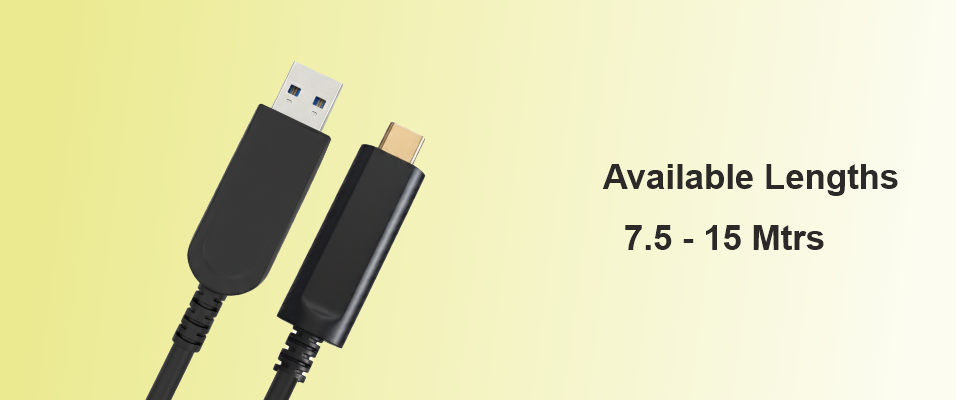

* Available Lengths – 7.5 – 15 Mtrs

Connector A USB A M – Host
Housing Rugged Metal Casting Housing with strain relief
Coating Nickel / Gold
 Connector B USB C M – Device – Slave
 Housing Rugged Metal Casting Housing with strain relief
Coating Nickel / Gold
Connection Type  / PCB / Machine Soldering
Cable Hybrid copper + fiber
Version Usb 3,1
Compatibility Backward compatible with usb 3.0 /2.0/1.1
Speed 10 Gbps
Supports Data + Power
Power 5V 900 A
Protection EMI & RF Protection
 Colour Black
Length Available 7.5 – 15.0 mtrs
