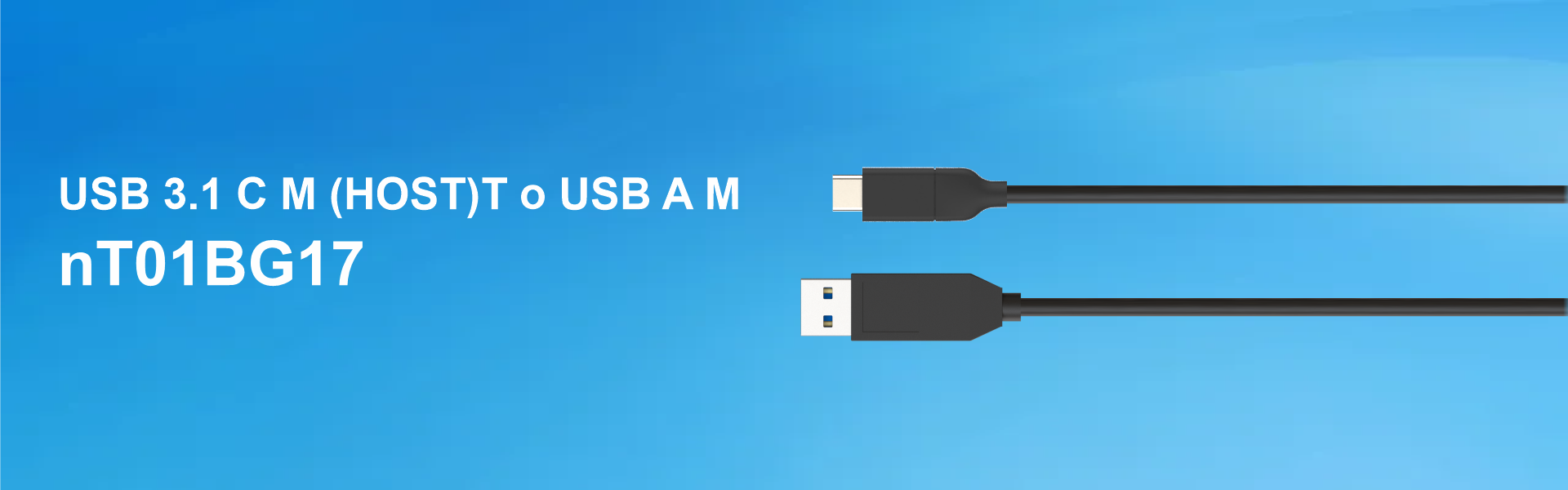

1BG17 USB 3.1 C M (HOST) TO USB A M

Product Description

nT01BG17 USB 3.1 CM TO AM CABLE

USB 3.1 CM to AM is a data cable . The cable and the connector is fully shielded and the pins are gold coated. It supports Power and data . The data speed supported up to 5 Gbps for 1 – 3 mtrs . The C port is connected to the host and A is to the devices – the A male cannot be connected to the Host . The c connector is reversible .The cable is constructed with shielded twisted pairs and multi core wires and the gauge ranges from 26 to 34 awg . Available Lengths : 1 – 3 mtrs . Applications : VR , Power , Data transfer , Video conferencing , Docking

Specification

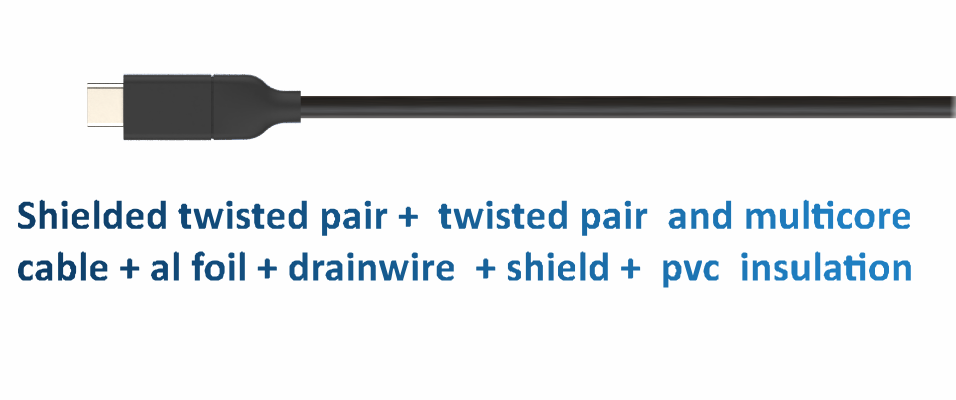

Shielded twisted pair + twisted pair and multicore cable + al foil + drainwire + shield + pvc insulation
Fully Shielded USB C Male connector – + PCB W IC + Copper Foil Shielding + PVC Over Moulding .
USB A Male connector with shielding .
Host is USB A and Slave is USB C . Cable conductor Tin Coated Copper
Supports Speed 5 Gbps for 1 – 3 mtrs .
Connector is Nickel coated and pins are gold coated .
Power Supported 3A (15 W)
Shielding protects from EMI an RF Signals . Available Lengths – 1- 3 Mtrs

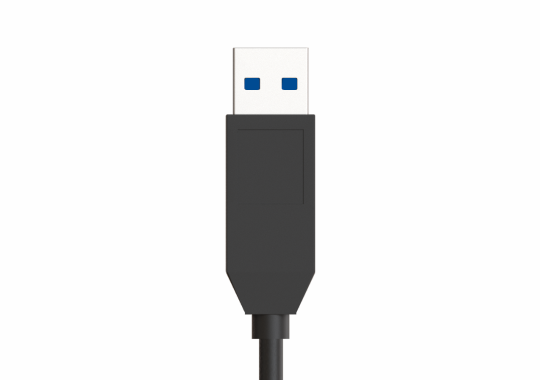

Connector A USB A M fully Shielded
Housing ABS + PVC Overmoulding
Coating Nickel / Gold
 Connector B USB C M + PCB Full Shielded
 Housing  ABS + PVC Overmoulding
Coating Nickel / Gold
Connection Type Machine Soldering , Shield Crimping
Cable flexible – shielded twisted pair + twisted pair and multicore cable + al foil + drainwire + shield + pvc insulation
Gauge  26 – 34 Awg

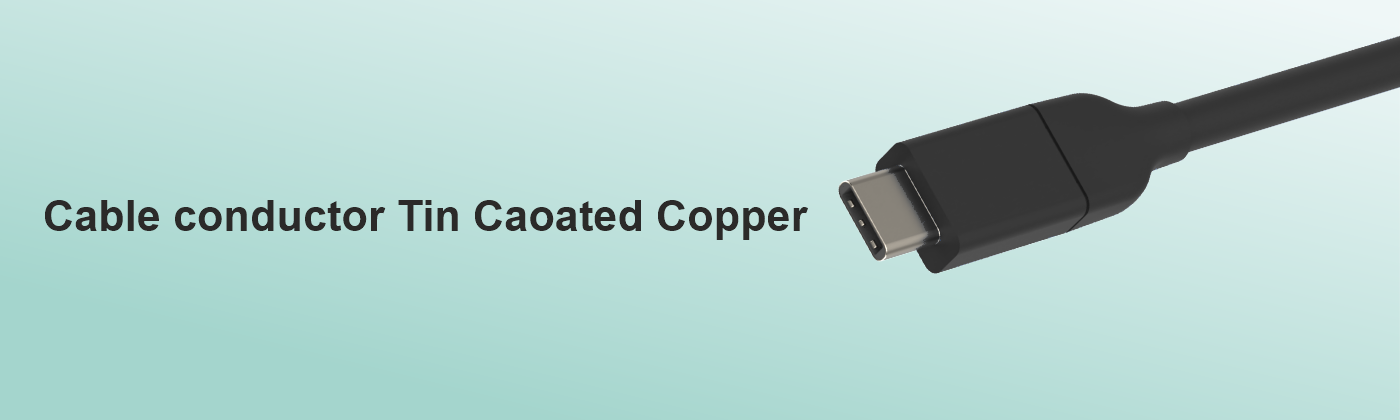

 Conductor Tin coated Copper
Speed  5 Gbps ( 1 – 3 m)
Compatibility USB 3.1 GEN 2 , USB 3.0 , USB 2.0 , USB 1.1
Host USB CM
Slave  USB A M
Protection EMI & RF Protection
Colour Black

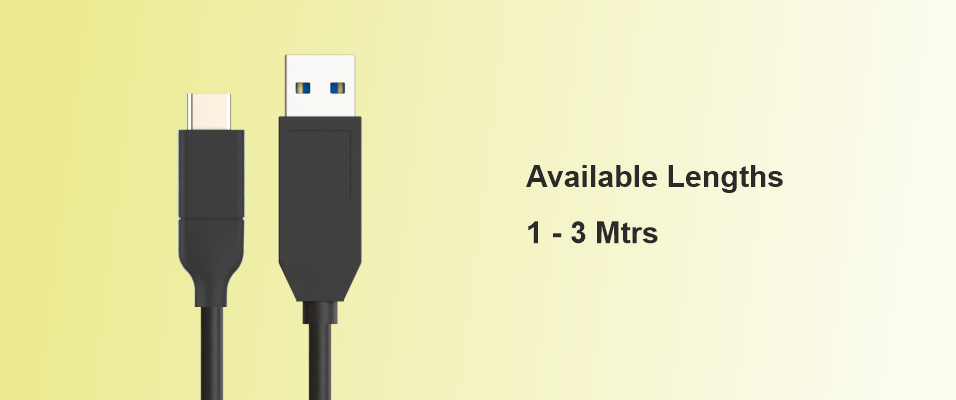

Length Available  1 – 3 mtrs
