1BG09 USB C TO USB B M 2.0 V

Product Description

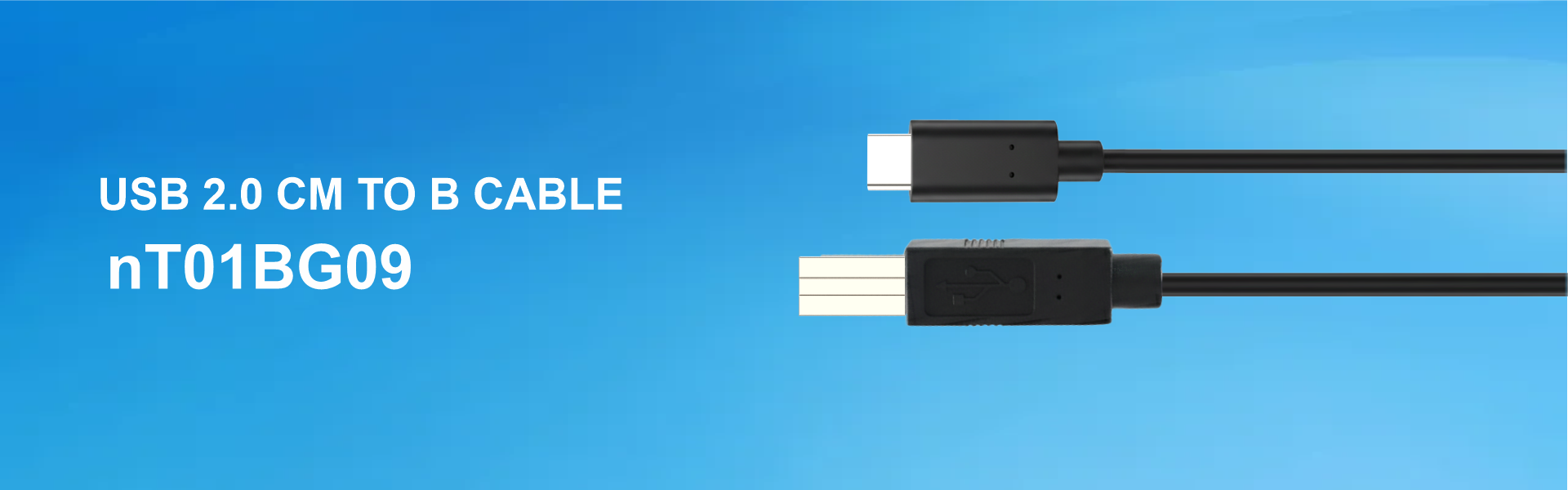

nT01BG09 USB 2.0 CM TO B CABLE

USB 2.0 CM to B Cable is compliant with version 2.0 cable and is backward compatible with v 1.1 . The cable and the connector is fully shielded and the pins are gold coated . It supports Power and data . The cable supports 5V 3 A (15W) Power output . The data speed suppoted up to 480 mbps . The cable is used for charging and data sync .The cable is constructed with twisted pairs and multi core wires and the gauge ranges from 28 to 24 awg . Available Lengths : 1 – 4 mtrs . Applications : Power , Data transfer , Video conferencing , Docking …..

Specification

* Construction of the cable -28 awg – 24 awg flexible – twisted pair and multicore cable + al foil + drainwire + shield + pvc insulation

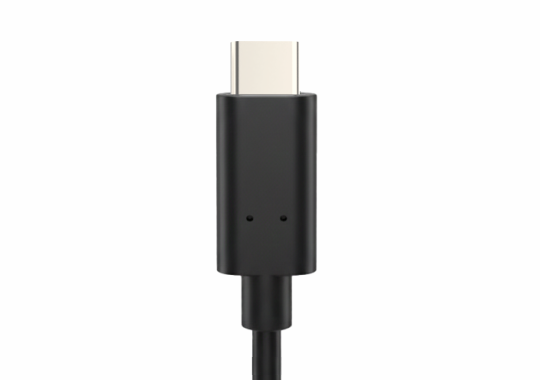

* Fully Shielded USB C Male connector – + PCB W IC + Copper Foil Shielding + PVC Over Moulding .
* USB B fully shielded connector + PVC over moulding .
* Bidirectional .
* Cable conductor Tin Caoated Copper
* Supports Speed 480 Mbps .

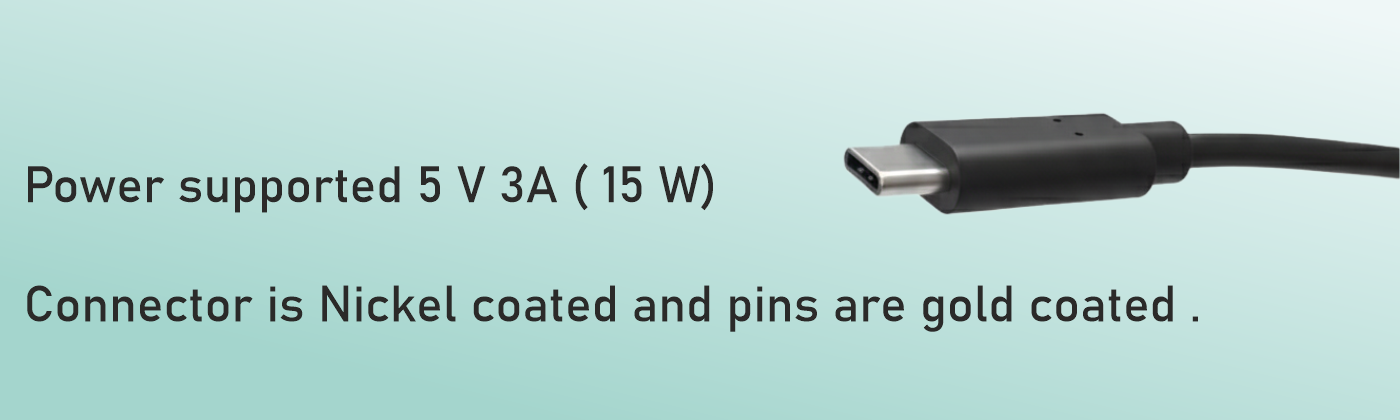

* Power supported 5 V 3A ( 15 W)
* Connector is Nickel coated and pins are gold coated . *Shielding protects from EMI an RF Signals .

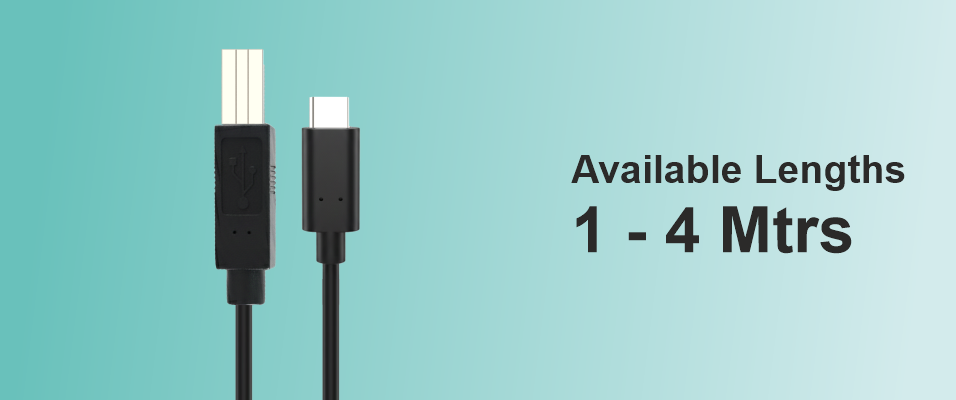

* Available Lengths – 1- 4 Mtrs

Connector A USB C M + PCB Full Shielded
 Connector B USB B Full Shielded
Housing ABS + PVC Overmoulding for 2 connectors
Coating Nickel / Gold for 2 connectors
Connection Type Machine Soldering , Shield Crimping
Cable flexible – twisted pair and multicore cable + al foil + drainwire + shield + pvc insulation
Gauge  28 – 24 Awg, speed 480 mbps
Conductor Tin coated Copper
Version USB 2.0 Backward compatible with USB 1.1
Power  3A – 15 W
Protection EMI & RF Protection
Colour Black
Length Available 1 – 4 mtrs
