1BG02 USB 3.1 A TO C

Product Description

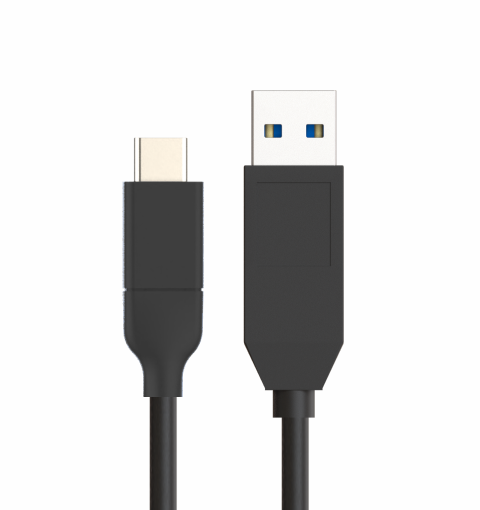

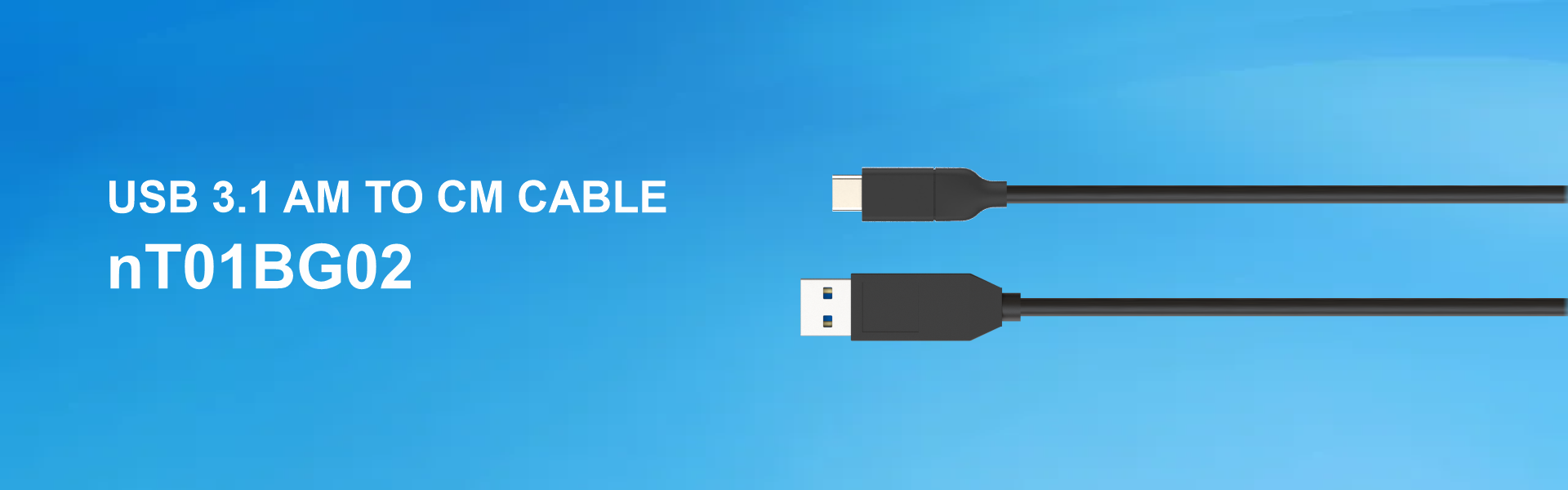

nT01BG02 USB 3.1 AM TO CM CABLE

USB 3.1 AM to CM is a data and charging cable . The cable and the connecter is fully shielded with gold plated pins . It supports Power and data . The cable supports 3A (15W) Power output . The data speed supported up to 5 Gbps for 1 1 – 3 mtrs . The A port is connected to the host and C is to the devices – the c male cannot be connected to the Host . The c connector is reversible .The cable is constructed with shielded twisted pairs and multi core wires and the gauge ranges from 26 to 34 awg . Available Lengths : 1 – 3 mtrs . Applications : VR , Power , Data transfer , Video conferencing , Docking …..

Specification

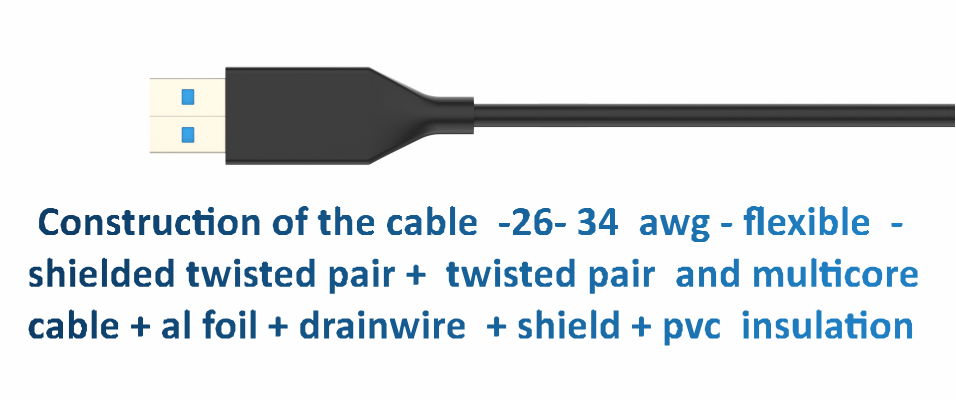

* Construction of the cable -26- 34 awg – flexible – shielded twisted pair + twisted pair and multicore cable + al foil + drainwire + shield + pvc insulation

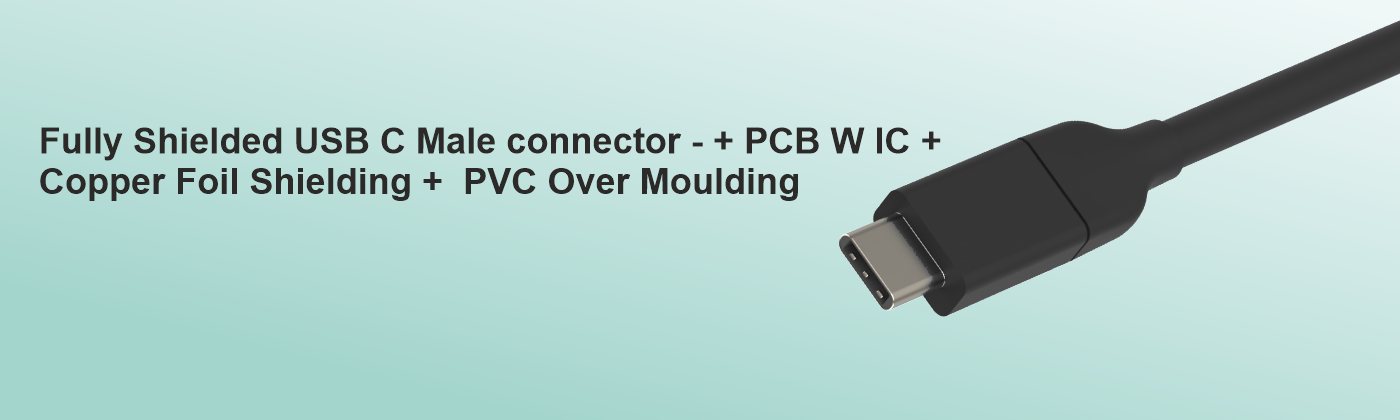

* Fully Shielded USB C Male connector – + PCB W IC + Copper Foil Shielding + PVC Over Moulding .
* USB A Male connector with shielding .
* Host is USB A and Slave is USB C . * Cable conductor Tin Caoated Copper
* Supports Speed 5 Gbps for 1 – 3 mtrs .
* Connector is Nickel coated and pins are gold coated .
* Power Supported 3A (15 W)
* Shielding protects from EMI an RF Signals . * Available Lengths – 1- 3 Mtrs



Connector A USB A M fully Shielded
Housing ABS + PVC Overmoulding
Coating Nickel / Gold

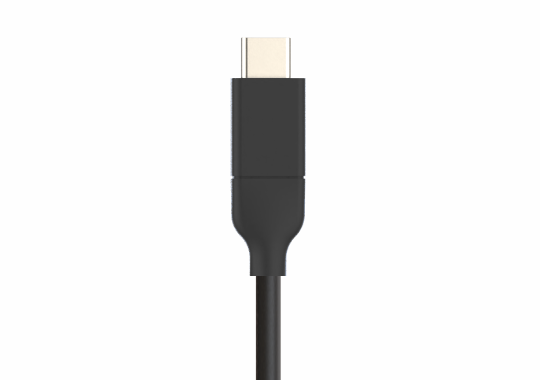

 Connector B USB C M + PCB Full Shielded
 Housing  ABS + PVC Overmoulding
Coating Nickel / Gold
Connection Type Machine Soldering , Shield Crimping
Cable flexible – shielded twisted pair + twisted pair and multicore cable + al foil + drainwire + shield + pvc insulation
Gauge  26 – 34 Awg
 Conductor Tin coated Copper
Speed  5 Gbps ( 1 – 3 m)
Version USB 3.1 Backward compatible with USB 3.0 , USB 2.0 , USB 1.1
Power  3A – 15 W
Host USB AM
Slave  USB C M
Protection EMI & RF Protection
Colour Black

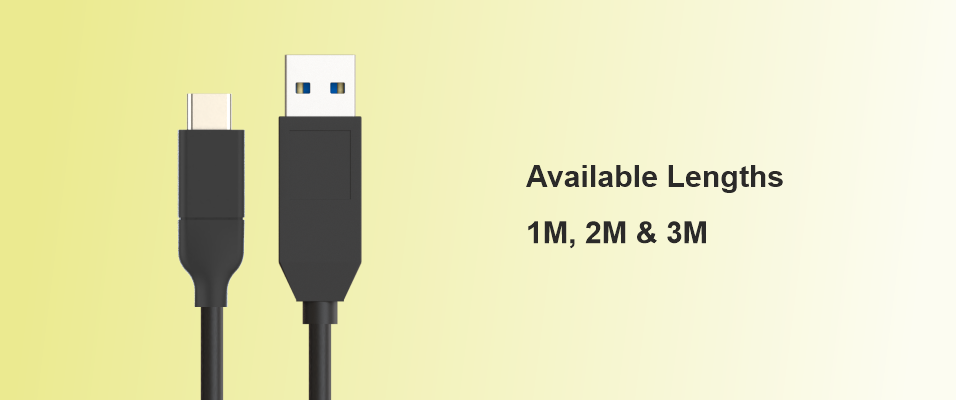

Length Available  1 – 3 mtrs
