1BG01 USB C TO C 3.1

Product Description

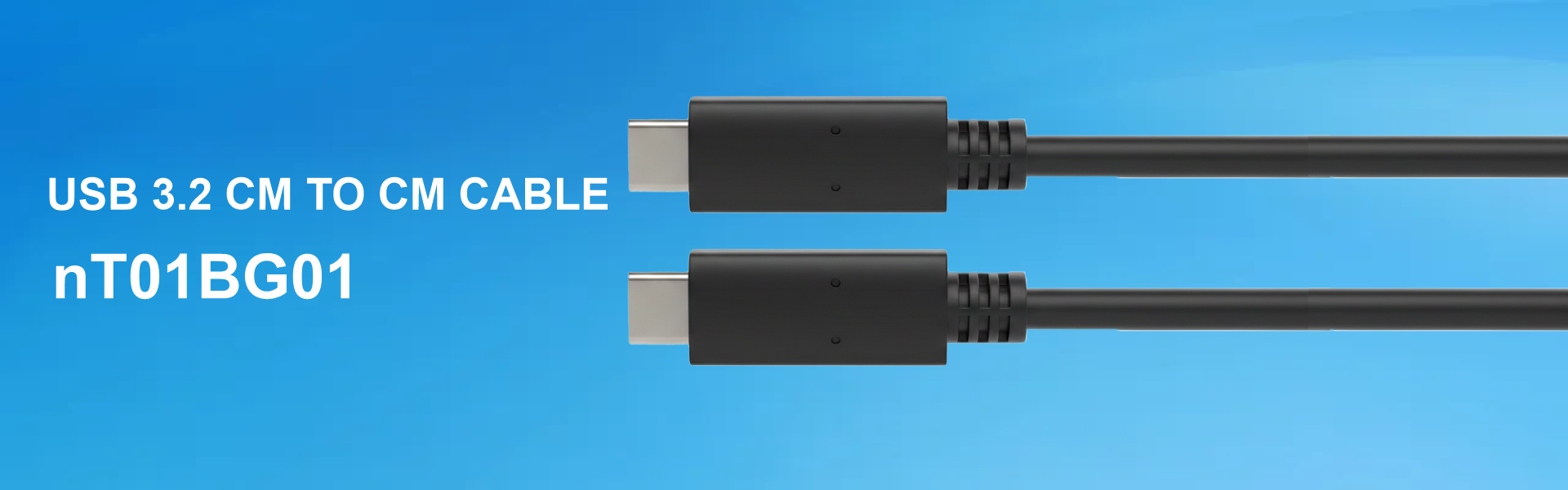

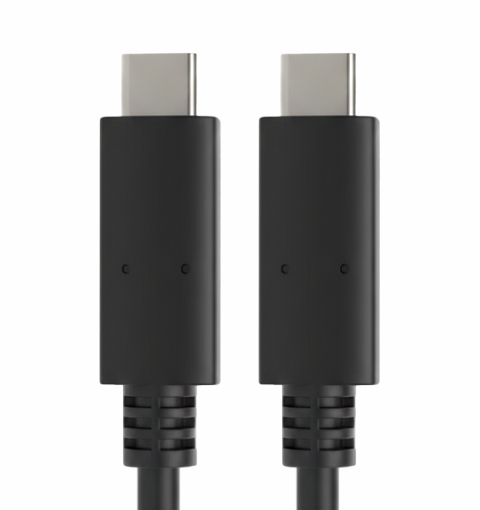

nT01BG01 USB 3.2 CM TO CM CABLE

USB 3.2 CM to CM is full featured Gen 2 cable . The cable and the connecter is fully shielded with gold plated pins . It supports Power , data and av . The cable supports 5A (100W) Power output . The cable supports 4k60Hz video signals . The data speed supported up to 10 Gbps for 1 mtr and 5 Gbps for 2 and 3 mtrs . The cable is with E-marker IC and the c connector is reversible .The cable is constructed with shielded twisted pairs and multi core wires and the gauge ranges from 26 to 34 awg . Available Lengths : 1 – 3 mtrs . Applications : VR , Power , Data transfer , Video conferencing , AV Connectivity , Docking …..

Specification

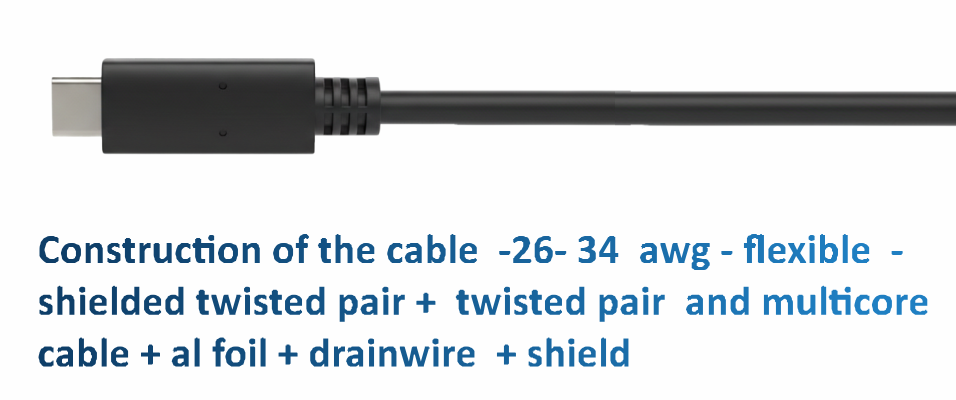

* Construction of the cable -26- 34 awg – flexible – shielded twisted pair + twisted pair and multicore cable + al foil + drainwire + shield + pvc insulation

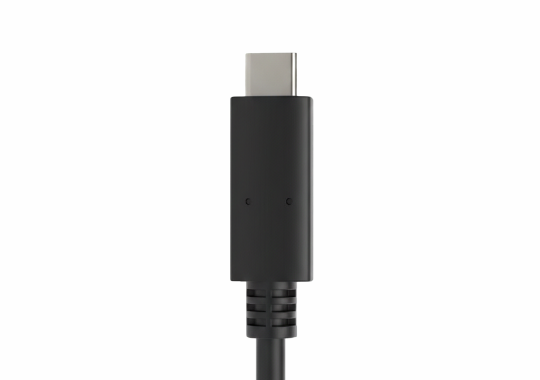

* Fully Shielded USB C Male connector – + PCB W IC + Copper Foil Shielding + PVC Over Moulding . * Cable conductor Tin Coated Copper
* Supports Speed 10 Gbps Speed up to 1 Mtrs and 5 Gbps for 2 and 3 mtrs .
* Connector is Nickel coated and pins are gold coated .

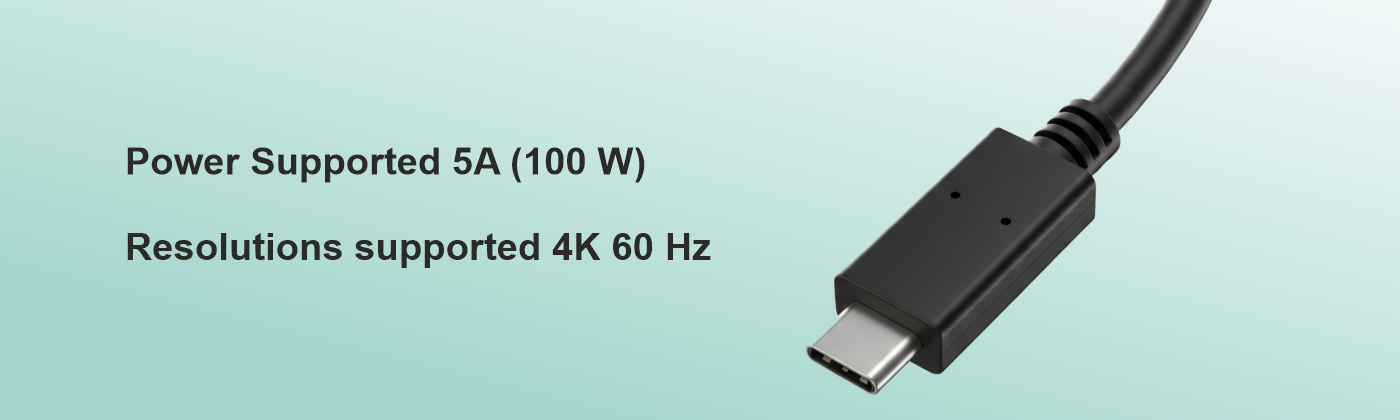

* Power Supported 5A (100 W)
* Resolutions supported 4K 60 Hz.
* Shielding protects from EMI an RF Signals . * Available Lengths – 1- 3 Mtrs

Connector A USB C M + PCB Full Shielded
Housing ABS + PVC Overmoulding
Coating Nickel / Gold
 Connector B USB C M + PCB Full Shielded
 Housing  ABS + PVC Overmoulding
Coating Nickel / Gold
Connection Type Machine Soldering , Shield Crimping
Cable flexible – shielded twisted pair + twisted pair and multicore cable + al foil + drainwire + shield + pvc insulation
Gauge  26 – 34 Awg
 Conductor Tin coated Copper
Speed 10 Gbpes (1m) 5 Gbps ( 2/3 m)
Version USB 3.2 GEN 2 Bacward compatible with USB 3.0 , USB 2.0 , USB 1.1 ,
Power 5A – 100 W
Resolution 4K 60 Hz
Protection EMI & RF Protection
Colour Black

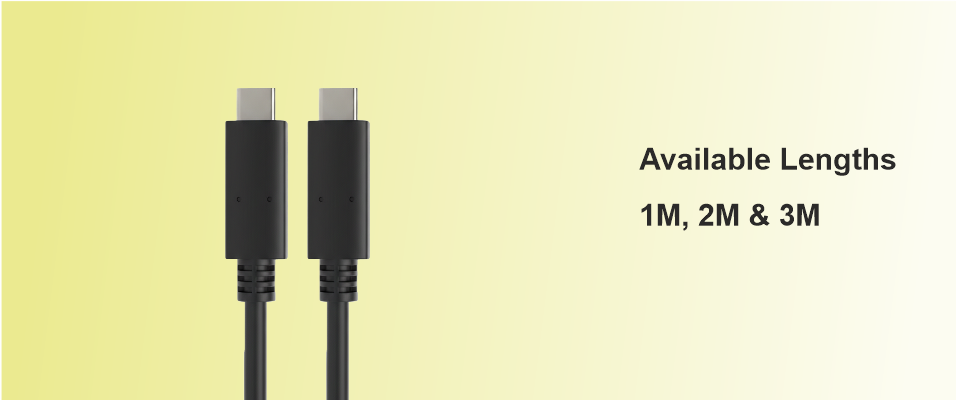

Length Available 1 – 3 mtrs
Main Image
Small Image 1
Small Image 2
Small Image 3
Small Image 4
“
