1BE13 USB C TO MDP

Product Description

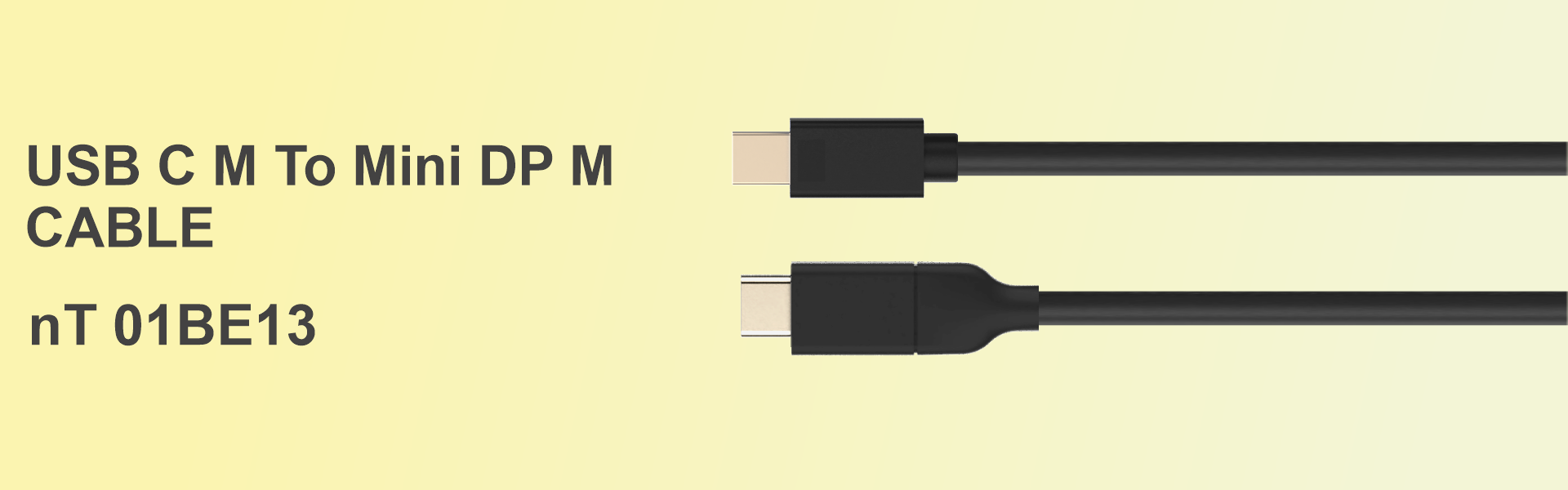

nT01BE13 USB CM TO MINI DP CABLE

USB 3.1 CM to Mini DP is a video and audio cable . The cable and the connector is fully shielded and the pins are gold coated . The Cables allows you to connect the USB C & Thunderbolt laptop / computer to the display , monitor , projector with MINI DISPLAYPORT . supports 4K 60 Hz resolution .Speed of 21.6Gbps .Supports HBR2/HDR/HDCP 2.2/1.4 . The C port is connected to the source and Mini DP is connected to the display . – the cable dose not support bidirectional function . The c connector is reversible .The cable is constructed with shielded twisted pairs and multi core wires and the gauge ranges from 26 to 34 awg . Available Lengths : 1.8 – 5 mtrs . Applications : IT infrastructure , Control room , Education , studio …..

Specification

* Construction of the cable high speed shielded twisted pair + multi core + al foil + shield + PVC-

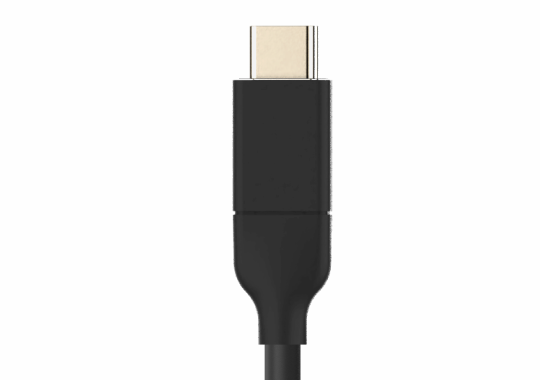

* USB C M Connector Gold Plated Pins / Shell

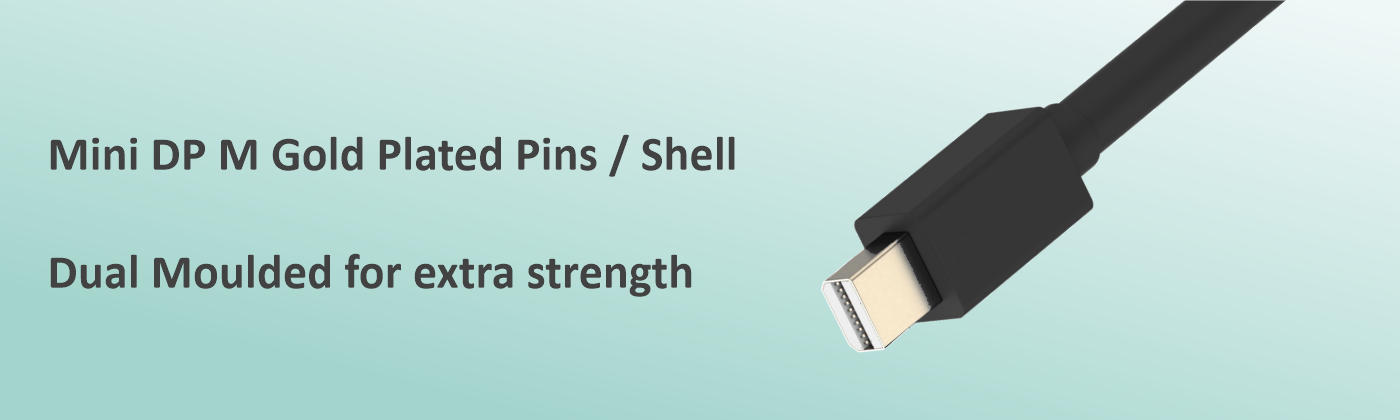

* Mini DP M Gold Plated Pins / Shell .
* Dual Moulded for extra strength .
* Shell is grounded and connected to the shield on both the ends.
* USB C is connected to the source and Mini DP to the display .
* Resolutions 4K 60 Hz .
* Speed supported 21.6 Gbps .
* Supports video and audio signals .
* Dose not support bidirectional function. * Gauge 26-34 awg

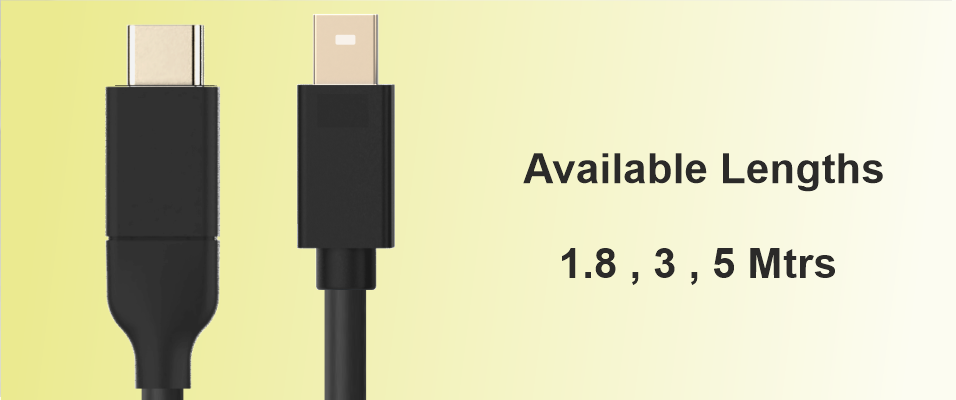

* Available Lengths – 1.8 mtrs , 3 ,5 mtrs .

Connector A USB C M Connector
Housing Dual Moulding
Coating  Gold
Connector B Mini DP M Connector
Housing Plastic Shell
Coating Gold
Cable High Speed Shielded twisted pair + Multi core + al foil + shield+ pvc –
Audio Supports 7.1ch audion
Resolution 4K 60 Hz
 Souce USB C M
Display  Mini DP
Speed 21.6 Gbps
 HDCP 1.4 /2.2
Conductor Tinned Copper 26-34 AWG
Shield 90 % Tin Coated Copper
Colour  Black / Blue
Length Available 1.8 – 5 mtrs
