1BE12-BD USB C TO DP BI-DIRECTIONAL

Product Description

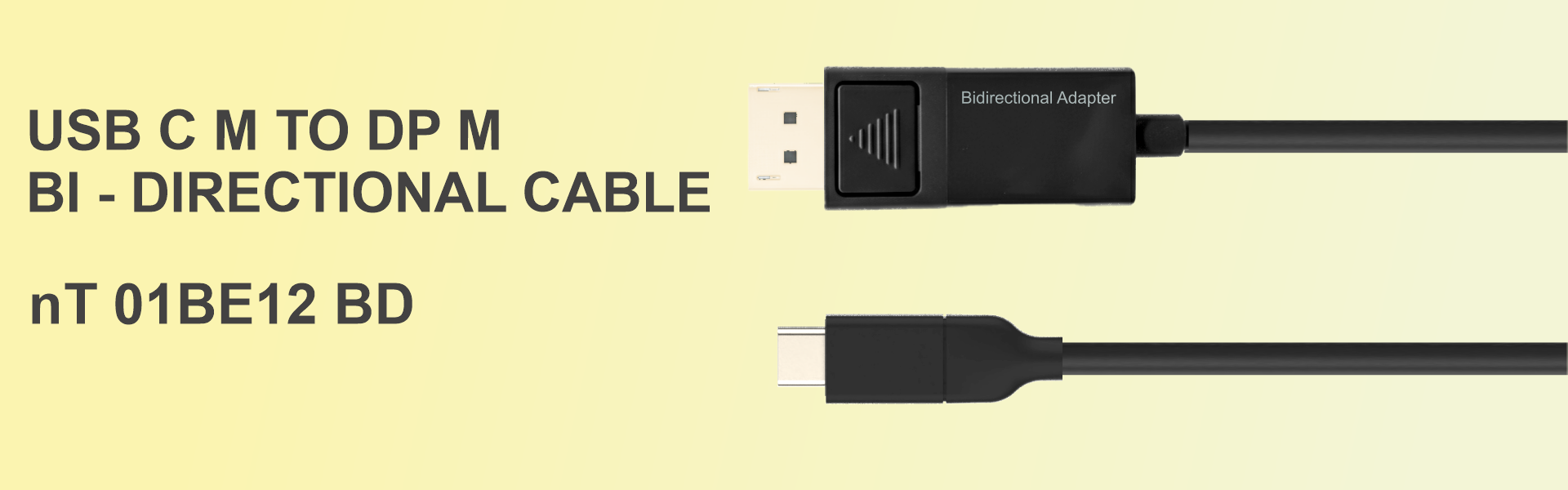

nT01BE12BD USB CM TO DP BI DIRECTIONAL CABLE

USB 3.1 CM to DP is a video and audio cable – it works bidirectional for any of the source and any of the display – c or dp . The cable and the connector is fully shielded and the pins are gold coated . The Cables allows you to connect the laptop / computer with USB C or DP to the display with USB C or DP . supports 4K 60 Hz resolution .Speed of 21.6Gbps .Supports HBR2/HDR/HDCP 2.2/1.4 . The c connector is reversible .The cable is constructed with shielded twisted pairs and multi core wires and the gauge ranges from 26 to 34 awg . Available Lengths : 1.8 mtrs . Applications : IT infrastructure , Control room , Education , studio ….

Specification

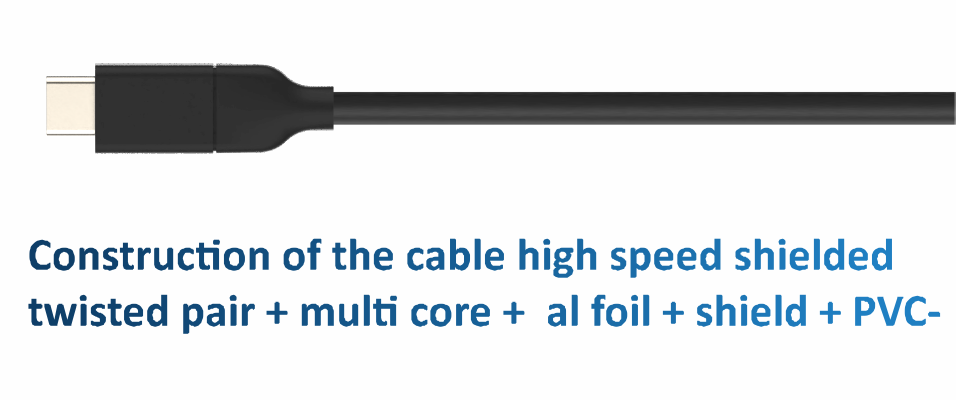

* Construction of the cable high speed shielded twisted pair + multi core + al foil + shield + PVC-
* USB C M Connector Gold Plated Pins / Shell

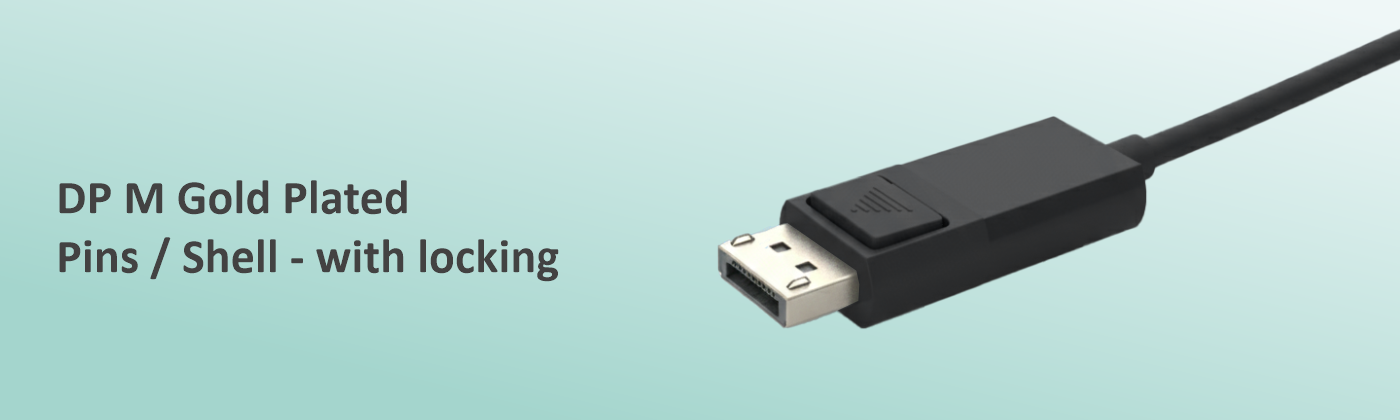

* DP M Gold Plated Pins / Shell – with locking .
* Dual Moulded for extra strength .
* Shell is grounded and connected to the shield on both the ends.
* Supports Bidirectional function – The cable can be used to convert USB C to DP and DP to USB C .
* Resolutions 4K 60 Hz .
* Speed supported 21.6 Gbps .
* Supports video and audio signals .
* Dose not support bidirectional function.
* Gauge 26-34 awg

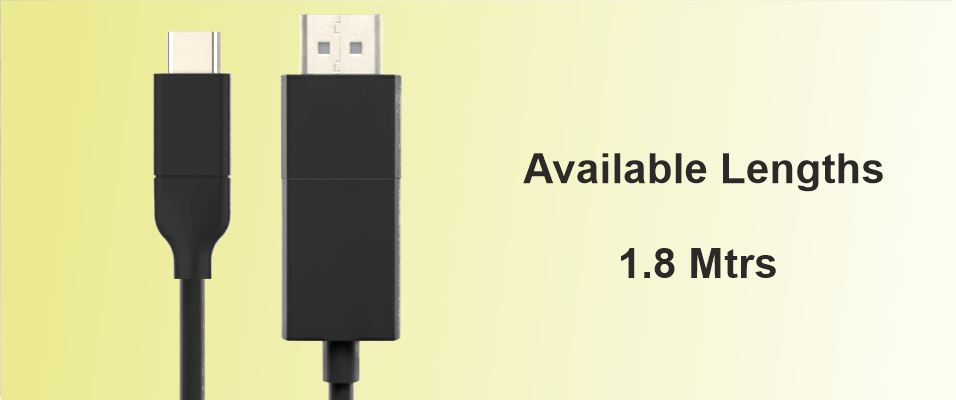

* Available Lengths – 1.8 mtrs

Connector A USB C M Connector
Housing Dual Moulding
Coating  Gold
Connector B DP M Connector
Housing Plastic Shell
Coating Gold
Cable High Speed Shielded twisted pair + Multi core + al foil + shield+ pvc –
Audio Supports 7.1ch audion
Resolution 4K 60 Hz
 Souce USB C M / DP
Display  USB CM / DP
Supports Bi -Directional use
Speed 21.6 Gbps , HDCP : 1.4 /2.2
Conductor Tinned Copper 26-34 AWG
Shield 90 % Tin Coated Copper
Colour  Black / Blue
Length Available 1.8 mtrs
