1BE03 MINI DP M TO DP M

Video Link

Product Description

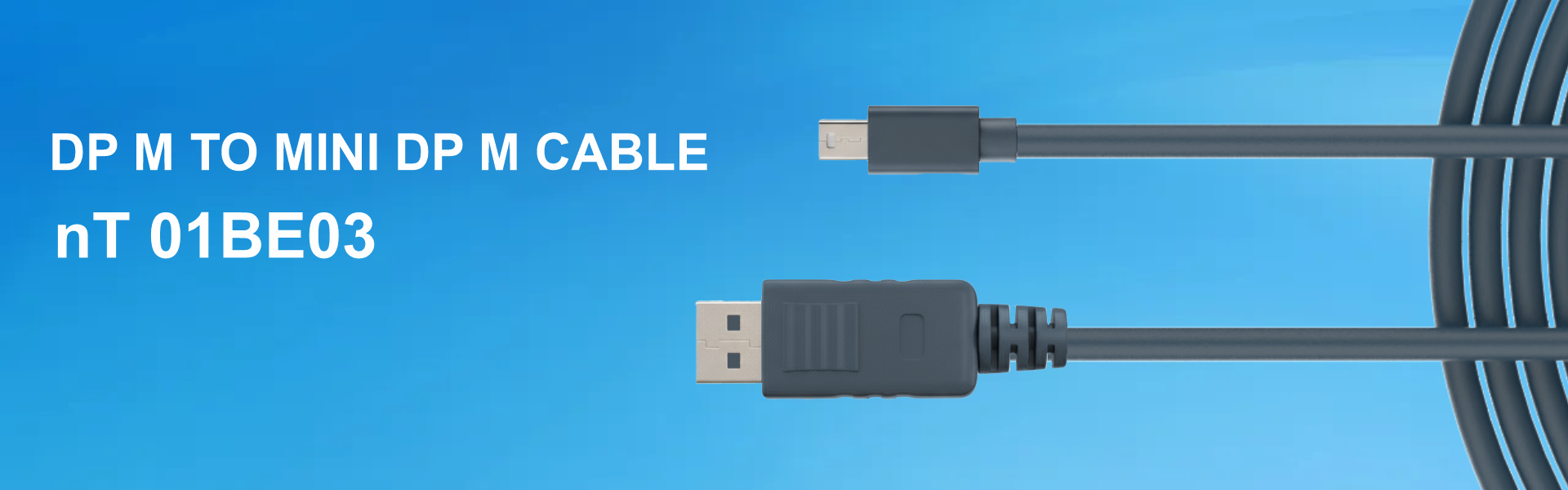

nT01BE03 / DP M TO MINI DP M CABLE

DP M to Mini DP M Cable is built with high quality annealed Oxygen free copper to give the best 4K 60 Hz video experience .The cable supports digital signals . The gold plated shell and the pins provides best interface connection and the cable and connector is double layer shielded to provide the disturbance free experience .The DP male connector is provided with press lock for perfect connectivity . The cable construction is designed to give bandwidth of 21.6 Gbps . Enables connection between devices with Dp and Mini DP Interface . Available in Black / Bluish Black colour in lengths of 1.8 Mtrs . Suitable for Medical Equipment’s , Conference rooms , Huddle rooms , Training rooms , Educational , Military applications .

Specification

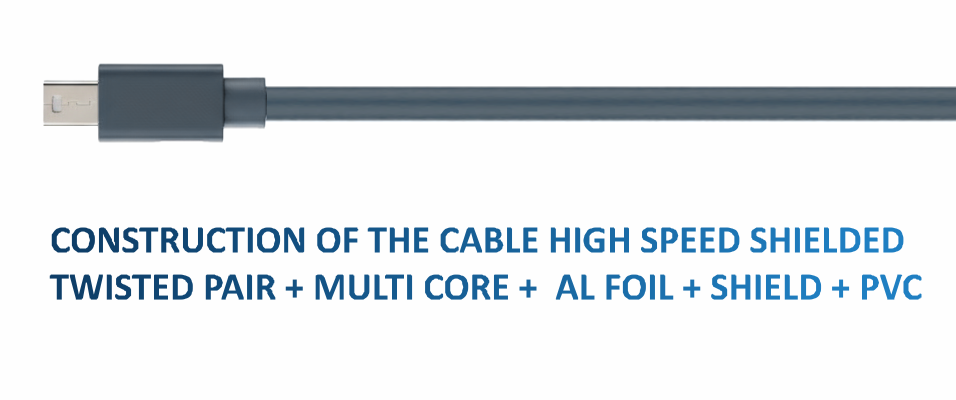

* Construction of the cable high speed shielded twisted pair + multi core + al foil + shield + PVC-

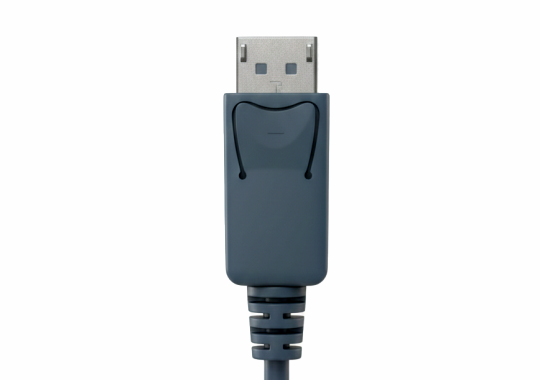

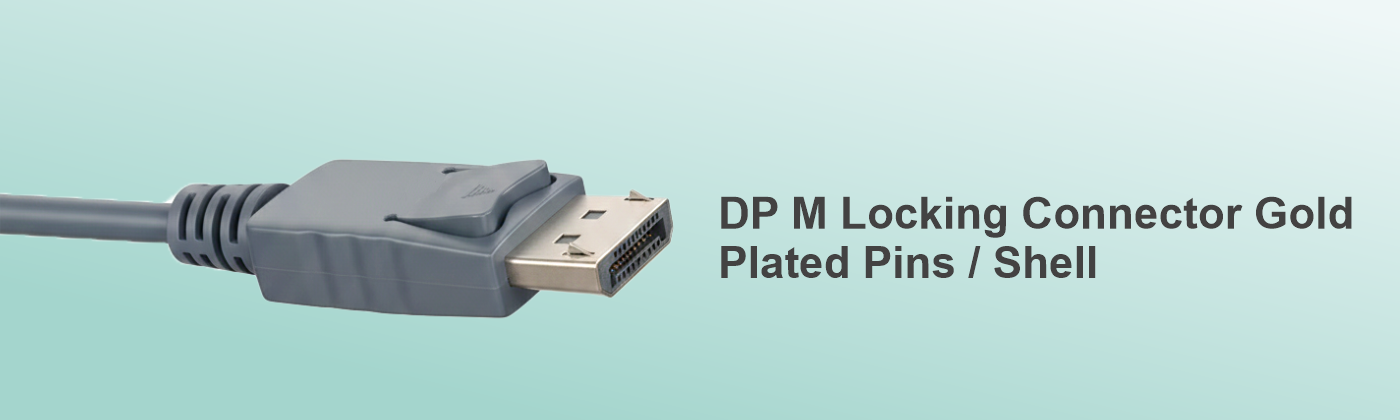

* DP M Locking Connector Gold Plated Pins / Shell
* Mini DP M Connector Gold Plated Pins / Shell
* Dual Moulded for extra strength .
* Shell is grounded and connected to the shield on both the ends.
* Resolutions 4K 60 Hz . Supports digital signals .
* Supports 21.6 Gbps speed
* Supports Multi stream Transport and 3 D , DP V 1.2
* Gauge 28

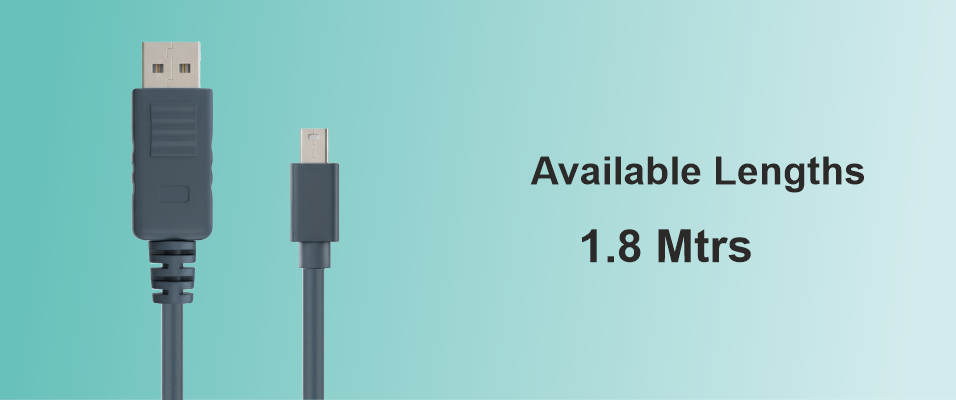

* Available Lengths – 1.8 mtrs .





Connector A  DP M Lock Type Connector
Housing Dual Moulding
Coating Gold
Connector B Mini DP M Connector
Housing Dual Moulding
 Coating Gold
Cable  High Speed Shielded twisted pair + Multi core + al foil + shield+ pvc –
Resolution 4K 60 Hz , digital signals
Speed 21.6 Gbps
Supports 3D , Multi stream transport , DPV 1.2
 Conductor Tinned Copper 28 AWG
Shield 90 % Tin Coated Copper
Colour Black / Blue
Length Available 1.8 mtrs
