1BD12 DP TO DVI

Product Description

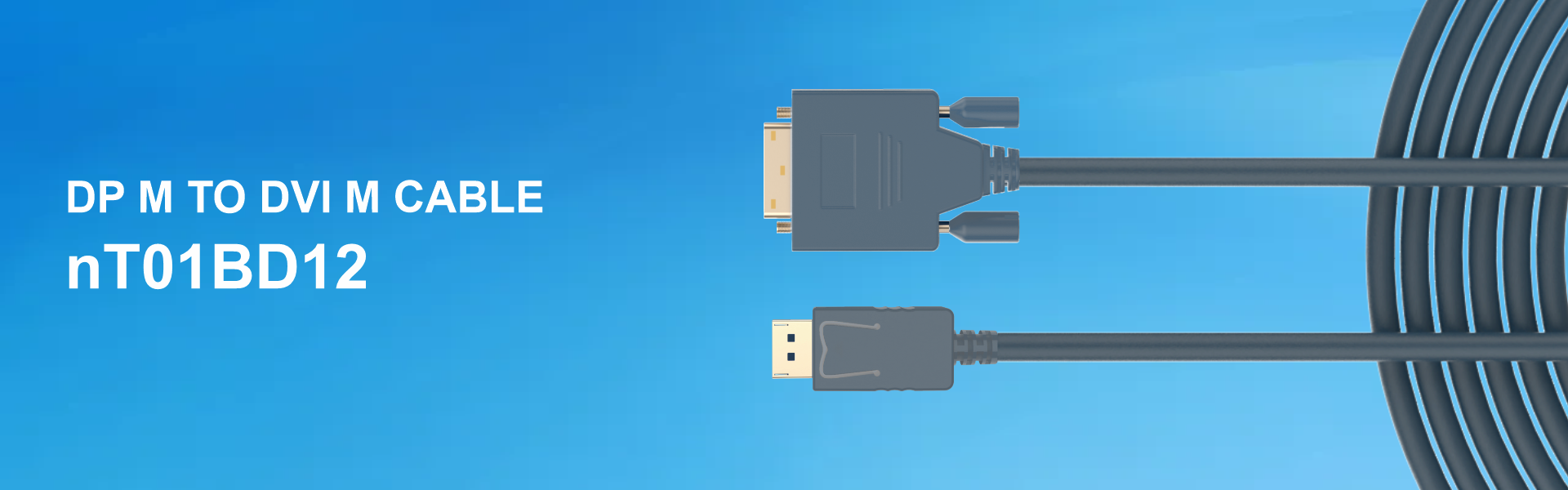

nT01BD12 DP M TO DVI M CABLE

DP M to DVI 24+1 M cable helps to connect devices like Computer , processors , Laptops with DP interface to Displays and projectors with DVI interface . DP is the source and DVI is for display . It supports resolution of 1080P 60 Hz. Gold plated pins and Shell – The cable is made up of tin coated copper of 28 awg – it is double shielded to provide the best disturbance less signals . Colour Black / Grayish Blue . Available Length 1.8 – 5 mtrs . Application – Workstation , Gaming , designing , Control Room …

Specification

* Construction of the cable high speed shielded twisted pair + multi core + al foil + shield + PVC-
* DP M Locking Connector Gold Plated Pins / Shell
* DVI M Gold Plated Pins / Shell
* Dual Moulded for extra strength .
* Shell is grounded and connected to the shield on both the ends.
* Resolutions 1080 P 60 Hz . Supports digital signals .
* Supports 5.5 Gbps speed
* Gauge 28 awg
* Available Lengths – 1.8 mtrs – 5 mtrs

Connector A DP M Connector
Housing Dual Moulding
Coating  Gold

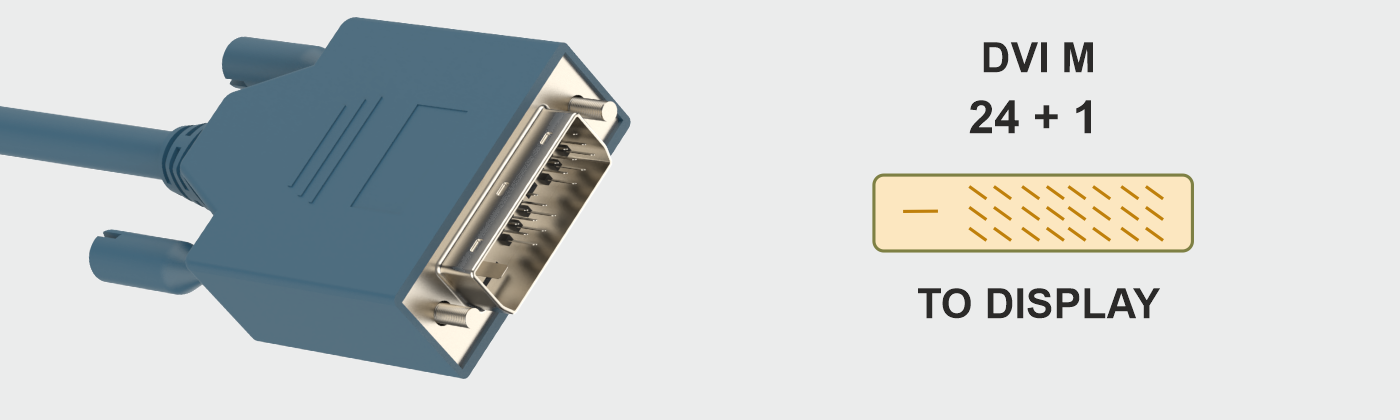

Connector B DVI M Connector
Housing  Plastic Shell
Coating Gold
Cable  High Speed Shielded twisted pair + Multi core + al foil + shield+ pvc –
Resolution  1080p 60 Hz , digital signals
Speed 5.5 Gbps
Supports 3D , DPV 1.2
Conductor  Tinned Copper 28 AWG
 Shield  90 % Tin Coated Copper
Colour  Black / Blue
Length Available 1.8 mtrs – 5 mtrs .
