1BC19 HC HDMI TO USB C

Product Description

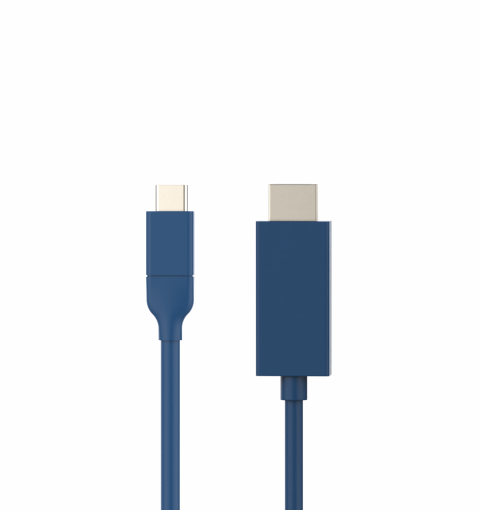

nT01BC19(HC) HDMI M TO USB C CABLE

USB 3.1 HDMI M to USB C is a video cable . The cable and the connector is fully shielded and the pins are gold coated . The Cables allows you to connect the HDMI laptop / computer to the USB C display , monitor , projector . supports DP1.2 specification with 4K – 60 Hz resolution and 7.1 Channel audio . The HDMI port is connected to the source and USB C is connected to the display . – the cable dose not suppot bi-directional function . The c connector is reversible .The cable is constructed with shielded twisted pairs and multi core wires and the gauge ranges from 26 to 34 awg . Available Lengths : 1.8 – 5 mtrs . Applications : IT infrasucture , Control room , Education , studio …..

Specification

* Construction of the cable high speed shielded twisted pair + multi core + al foil + shield + PVC-
* USB C M Connector Gold Plated Pins / Shell
* HDMI Gold Plated Pins / Shell
* Dual Moulded for extra strength .
* Shell is grounded and connected to the shield on both the ends.
* HDMI is connected to the source and USB C to the display .
* Resolutions 4K 60 Hz 4:4:4 format.
* Supports HDCP1.4/2.2 , DP 1.2 , 8 bit color depth
* Supports Four Lanes with 1.62Gbps (RBR), 2.7Gbps (HBR) or 5.4Gbps (HBR2) Data Rate per lane .
* Supports video and audio signals .
* Dose not support bidirectional function. * Gauge 26-34 awg
* Available Lengths – 1.8 mtrs .





Connector A  USB C M Connector
Housing Dual Moulding
Coating  Gold
Connector B HDMI M Connector
Housing Plastic Shell
Coating Gold
Cable High Speed Shielded twisted pair + Multi core + al foil + shield+ pvc –
Audio Supports 7.1ch audio
Resolution 4K 60 Hz (4:4:4)
HDCP 1.4 / 2.2
Speed Four Lanes with 1.62Gbps (RBR), 2.7Gbps (HBR) or 5.4Gbps (HBR2) Data Rate per lane
Souce HDMI M
Display USB C
Conductor Tinned Copper 26-34 AWG
Shield 90 % Tin Coated Copper
Colour Black / Blue
Length Available 1.8 mtrs
