1BC19 C TO HDMI

Product Description

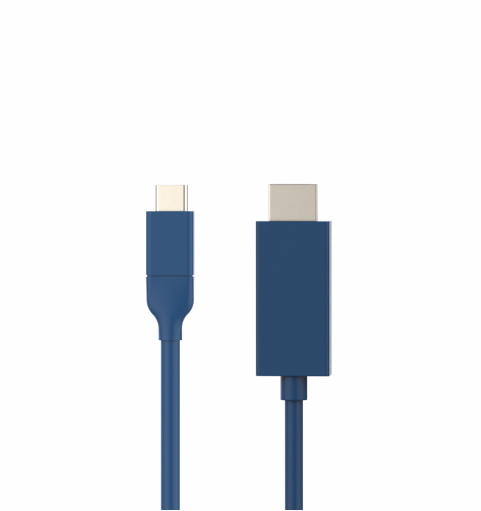

nT01BC19 USB CM TO HDMI CABLE

USB 3.1 CM to HDMI is a video cable . The cable and the connector is fully shielded and the pins are gold coated . The Cables allows you to connect the USB C & Thunderbolt laptop / computer to the Hdmi display , monitor , projector . supports 4K – 60 Hz resolution and 7.1 Channel audio . The C port is connected to the source and HDMI is connected to the display . – the cable dose not suppot bidirectional function . The c connector is reversible .The cable is constructed with shielded twisted pairs and multi core wires and the gauge ranges from 26 to 34 awg . Available Lengths : 1.8 – 5 mtrs . Applications : IT infrasucture , Control room , Education , studio …..

Specification

* Construction of the cable high speed shielded twisted pair + multi core + al foil + shield + PVC-
* USB C M Connector Gold Plated Pins / Shell
* HDMI Gold Plated Pins / Shell
* Dual Moulded for extra strength .
* Shell is grounded and connected to the shield on both the ends.
* USB C is connected to the source and HDMI to the display .
* Resolutions 4K 60 Hz .
* Supports video and audio signals .
* Dose not support bidirectional function. * Gauge 26-34 awg
* Available Lengths – 1.8 mtrs , 3 ,5 mtrs .





Connector A USB C M Connector
Housing Dual Moulding
Coating  Gold
Connector B HDMI M Connector
Housing Plastic Shell
Coating Gold
Cable High Speed Shielded twisted pair + Multi core + al foil + shield+ pvc –
Audio Supports 7.1ch audion
Resolution  4K 60 Hz
Souce USB C M
Display HDMI
Conductor Tinned Copper 26-34 AWG
Shield 90 % Tin Coated Copper
Colour Black / Blue
Length Available 1.8 – 5 mtrs
Main Image
Small Image 1
Small Image 2
Small Image 3
Small Image 4
“
