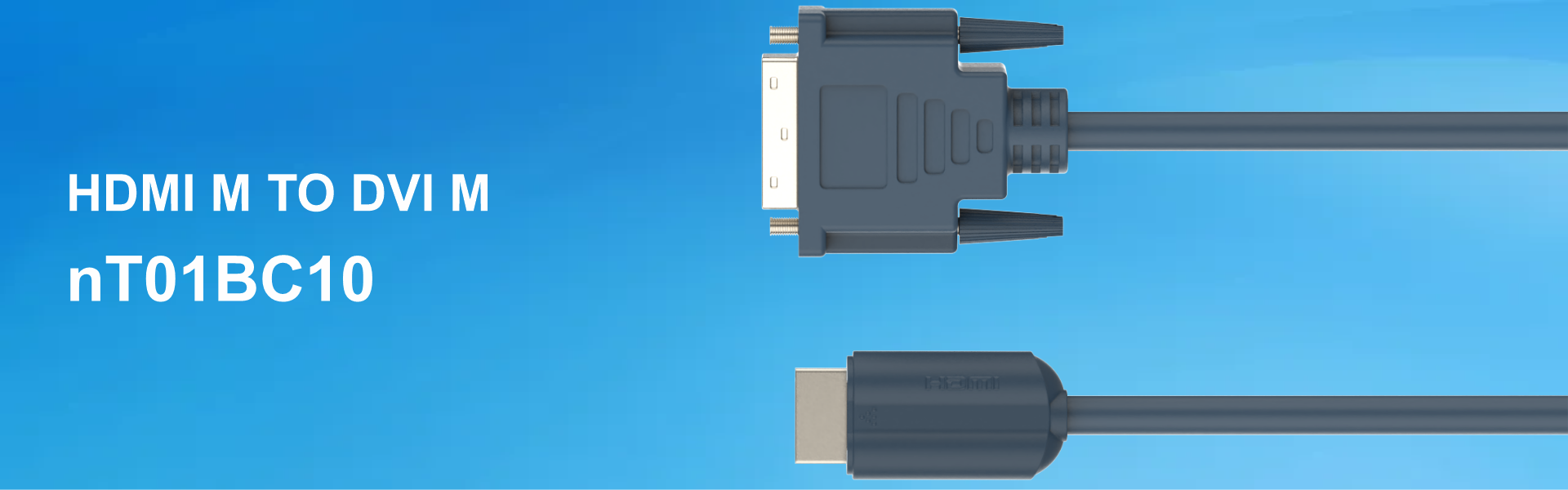

1BC10 HDMI M TO DVI M

Product Description

nT01BC10 / DVI D MALE TO HDMI MALE CABLE
DVI D M To HDMI M Cable is built with high quality annealed Oxygen free copper to give the best 1080P 60 Hz video experience . The gold plated shell and the pins provides best interface connection and the cable and connector is double layer shielded to provide the disturbance free experience .The Cable enables connction between devices with DVI D interface and normal HDMI interface . The cable construction is designed to give bandwidth of 5 Gbps . Available in Black / Bluish Black colour in lengths from 0.3 Mtrs to 15 Mtrs . Suitable for Medical Equipments , Conference rooms , Huddle rooms , Training rooms , Educational , Military applications .

Specification

* Construction of the cable high speed shielded twisted pair + multi core + al foil + shield + PVC-

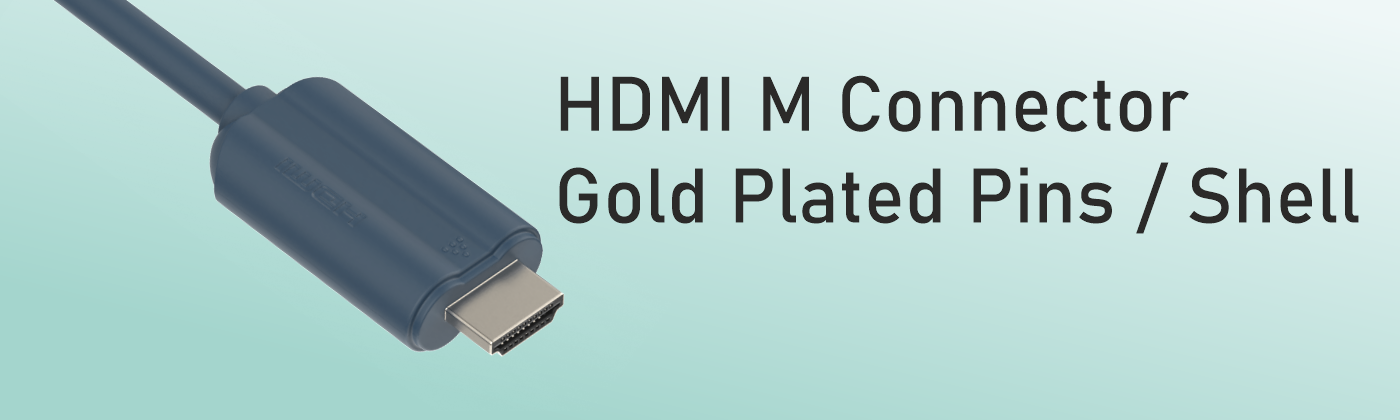

* HDMI M Connector Gold Plated Pins / Shell * DVI D M Connector Gold plated pins / shell .
* Dual Moulded for extra strength .
* Shell is grounded and connected to the shield on both the ends.
* Resolutions 1080 P @ 60 Hz. * Supports 5 Gbps speed . * Gauge 28 awg / 24 awg * Available Lengths – 0.3 – 15 mtrs





Connector A  HDMI M
Housing Dual Moulding
Coating  Gold

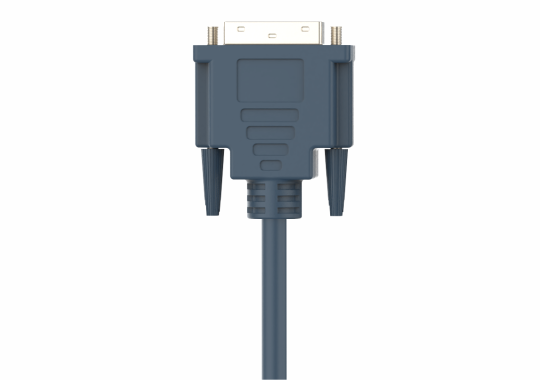

Connector B DVI D M
Housing Dual Moulding
Coating Gold
Cable High Speed Shielded twisted pair + Multi core + al foil + shield+ pvc –
Resolution 1080 P @ 60 Hz
Speed 5 Gbps
Conductor Tinned Copper 28 AWG /24 AWG
Shield  90 % Tin Coated Copper
Colour  Black / Blue

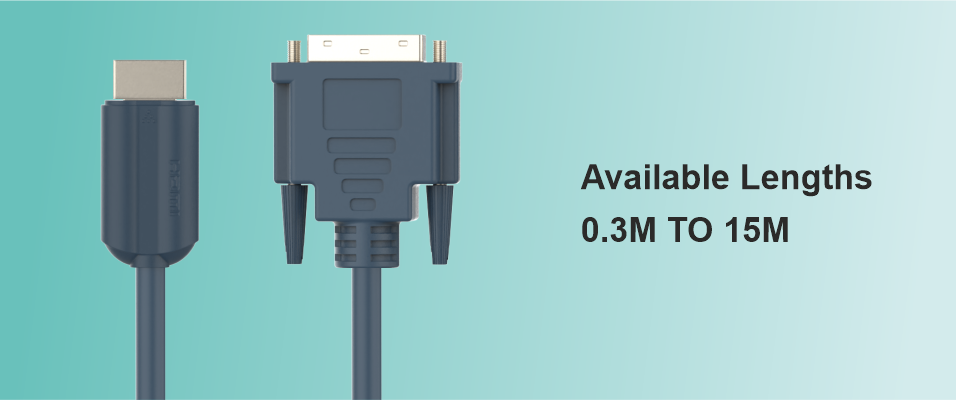

Length Available  0.3 – 15 mtrs
