Product Description

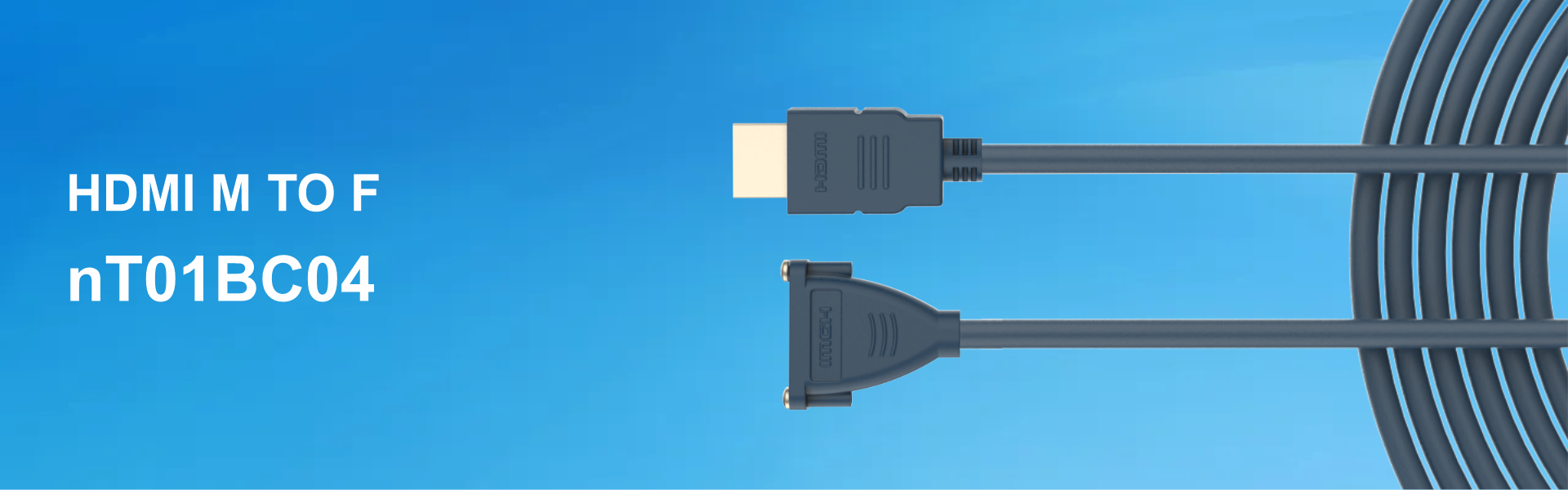

nT01BC04 / HDMI MALE TO FEMALE P.MOUNT CABLE
Hdmi M to F Panel Mount Cable is built with high quality annealed Oxygen free copper to give the best 4K video and digital audio experience . The gold plated shell and the pins provides best interface connection and the cable and connector is double layer shielded to provide the disturbance free experience .The Female side can be panel mounted on the wall plates , desk top boxes etc. The cable construction is designed to give bandwidth of 18 Gbps . The cable supports ARC(Audio Return Channel) , Ethernet , 3D , CEC to enable you to perform and achieve multiple functions with your devices . Available in Black / Bluish Black colour in lengths from 300 mm to 20 Mtrs . Suitable for Home Theaters , Conference rooms , Huddle rooms , Training rooms , Educational , Hospital applications .



Specification

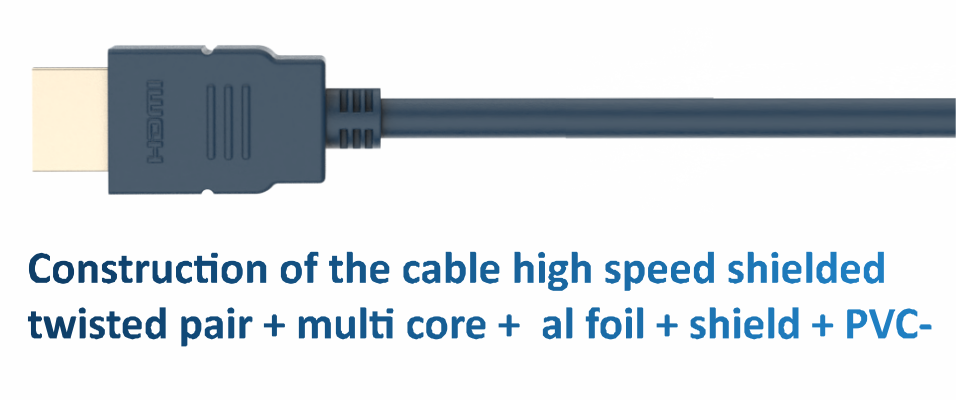

* Construction of the cable high speed shielded twisted pair + multi core + al foil + shield + PVC-

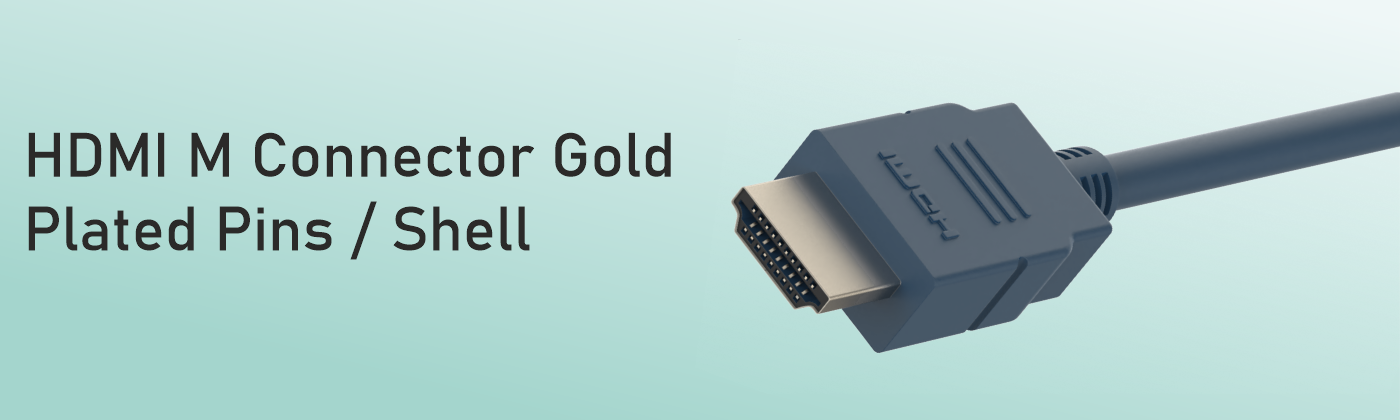

* HDMI M Connector Gold Plated Pins / Shell

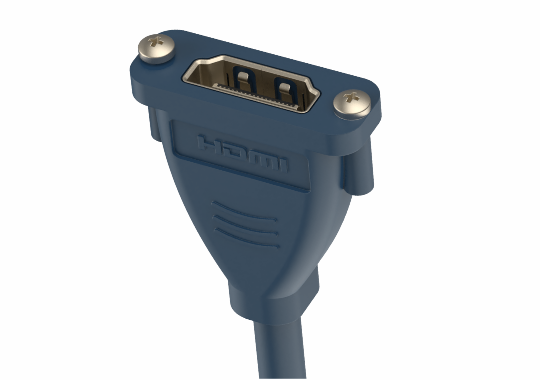

* HDMI F Panel Mount Connector Gold plated pins / shell .
* Dual Moulded for extra strength .
* Shell is grounded and connected to the shield on both the ends.
* Resolutions 4k .
* Supports 18 Gbps speed,ethernet,3D and ARC functions.
* Gauge 28 awg / 24 awg

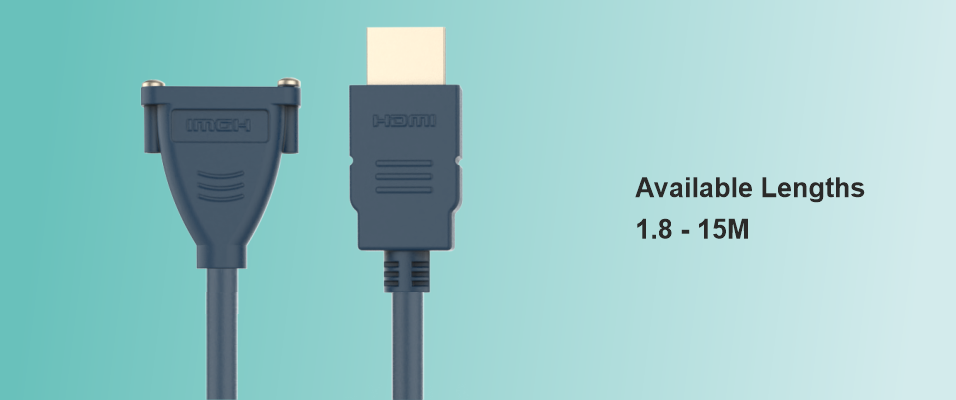

* Available Lengths – 1.8 – 15 mtrs



Connector A  HDMI M
Housing Dual Moulding
Coating  Gold
Connector B HDMI F Panel Mount
Housing Dual Moulding
Coating Gold
Cable High Speed Shielded twisted pair + Multi core + al foil + shield+ pvc –
Speed 18GBPS
Conductor Bare Copper 28 AWG
Shield 90 % Tin Coated Copper
Colour Black / Blue
 Length Available 1.8-15 mtrs
Main Image
Small Image 1
Small Image 2
Small Image 3
Small Image 4
